Panasonic DMR-ES40VP

31

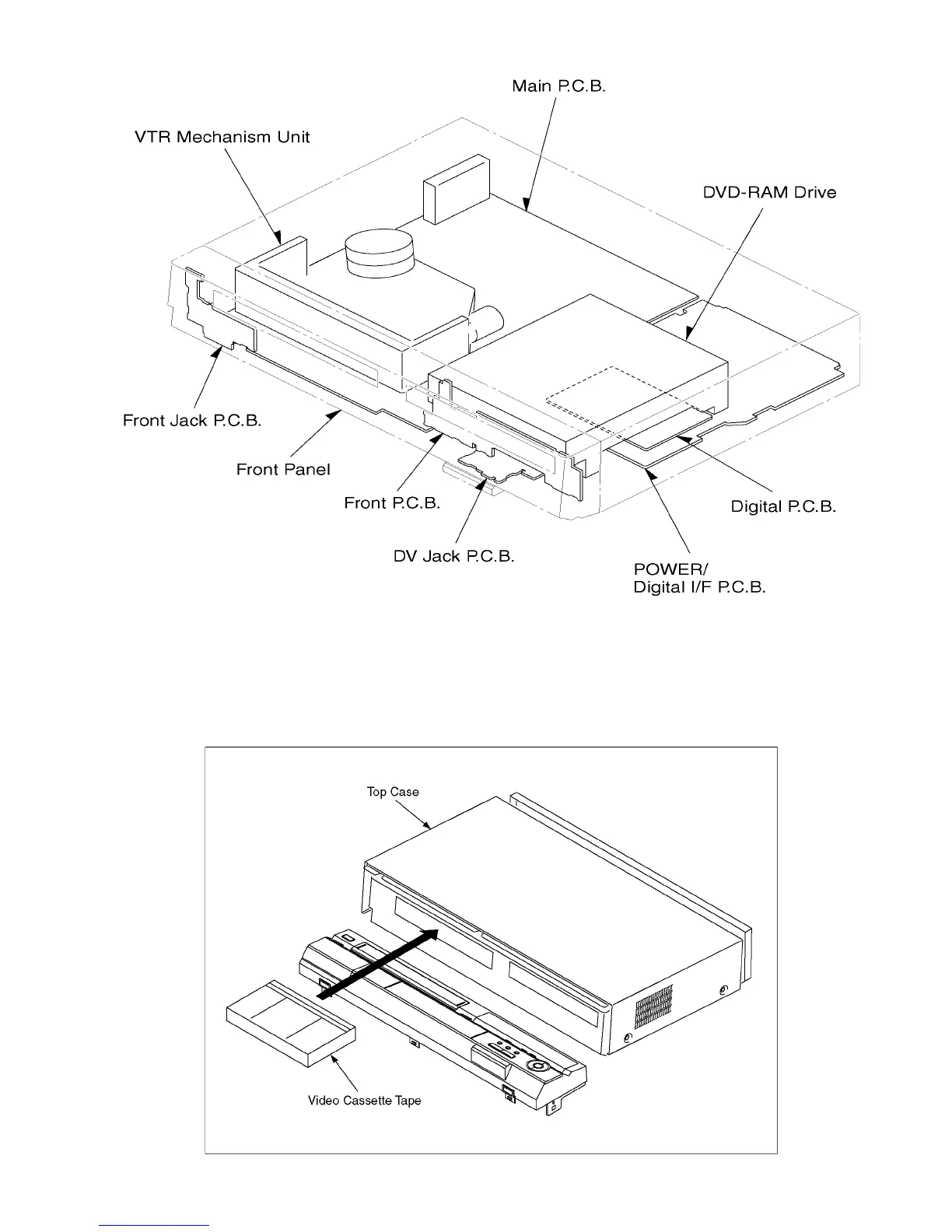

10.2. P.C.B. Positions
10.3. Caution with inserting cassette tape when disassembling the unit
Note1:
For description of the disassembling procedure, see the section 11.4.
Note2:
Video Cassette might not enter when a strong lighting is applied to VHS Mechanism when Video Cassette is inserted. Please
weaken the lighting or cover with the top panel etc.
