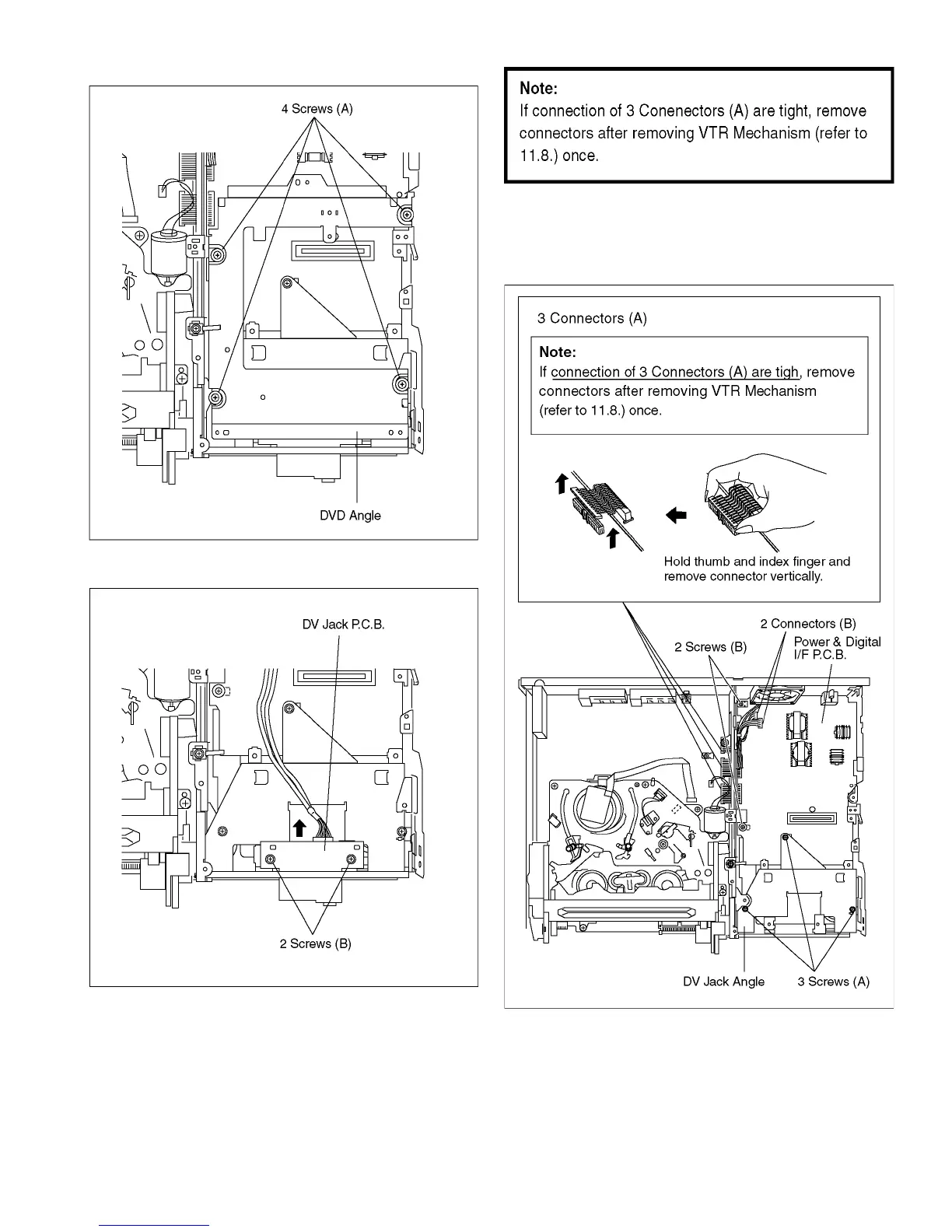

10.12. DV Jack P.C.B.
1. Remove 4 Screws (A) and DVD Angle.
2. Remove 2 Screws (B).
3. Pull out the DV Jack P.C.B. in the direction of the arrow.
10.13. Power & Digital I/F P.C.B.
1. Remove 3 Screws (A) and DV Jack Angle.
2. Remove Fan Motor (refer to 11.7.1.).
3. Disconnect 3 Connectors (A) and 2 Connectors (B).
4. Remove 2 screws (B).
5. Remove Power and Digital I/F P.C.B.
