Upgrading your system (continued)

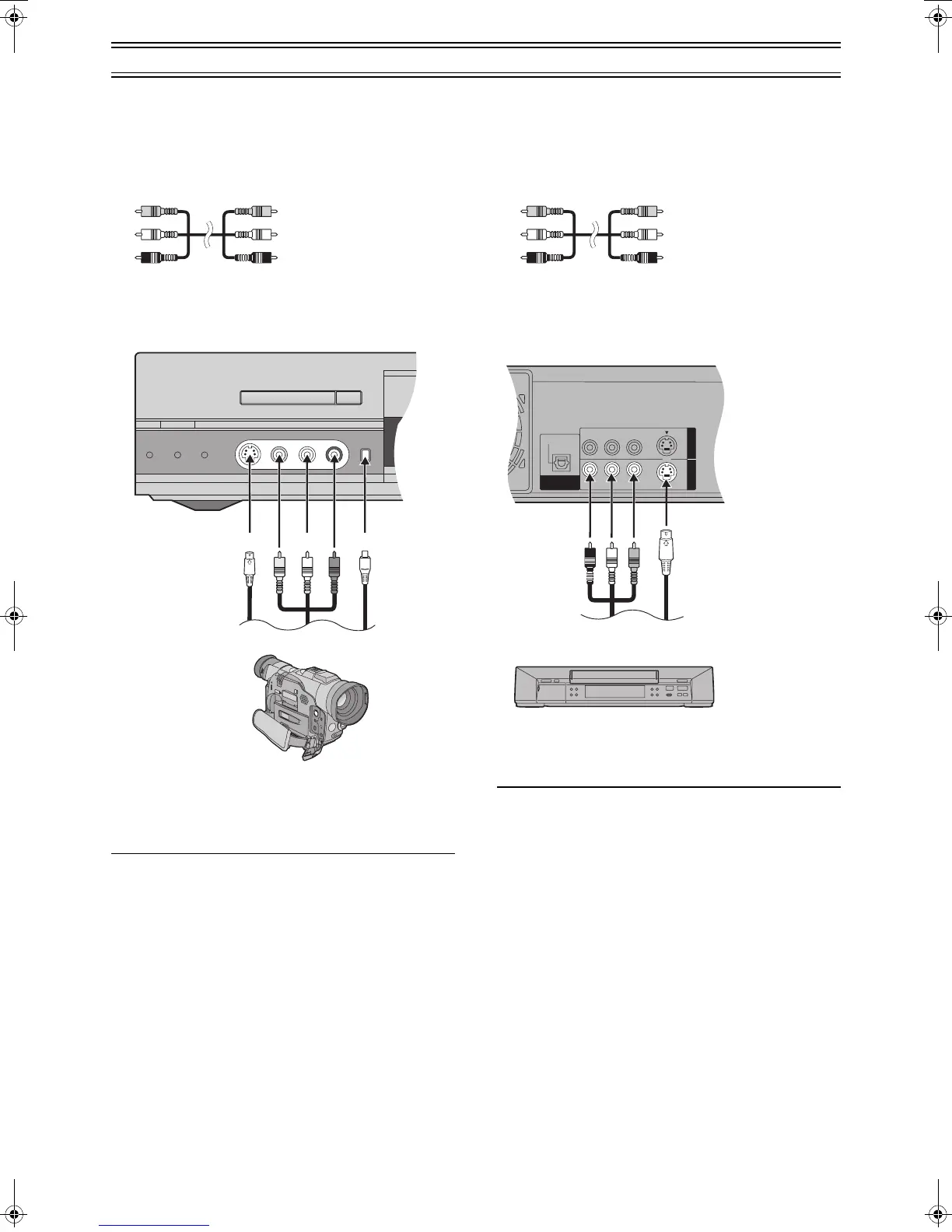

Connecting a video cassette recorder
When connecting to the AV3/DV input terminals on the
front of the unit
Audio/Video cable
(1) Yellow (VIDEO)
(2) White (L)
(3) Red (R)
(4) S video cable (not supplied)
(5) Audio/Video cable (not supplied)
(6) 4-pin DV cable (not supplied)
(7) Other playback equipment
≥Connect to the video and audio output terminals.
Note
≥If the audio output of the other equipment is monaural, connect to
L/MONO. (Both left and right channels are recorded when
connected through L/MONO.)
≥The DV input on this unit is for use with DV cameras only.
When connecting to the input terminals on the rear of
the unit
Audio/Video cable
(1) Yellow (VIDEO)
(2) White (L)
(3) Red (R)
Rear panel of this unit
(4) Audio/Video cable (not supplied)
(5) S video cable (not supplied)
(6) Other playback equipment
≥Connect to the video and audio output terminals.
Note
If audio output of the other equipment is monaural, use a
stereo-monaural conversion cable (not supplied).
