Panasonic Eco Solutions Nordic AB
MEW01622 Rev: - EBL128 Planning Instructions V2.0.x
159
100
150
200
250
300
350
400
450
500
550
600
650
700
750
800
850
900
0 40 80 120 160 200 240 280 320
Total COM loop unit current consumption

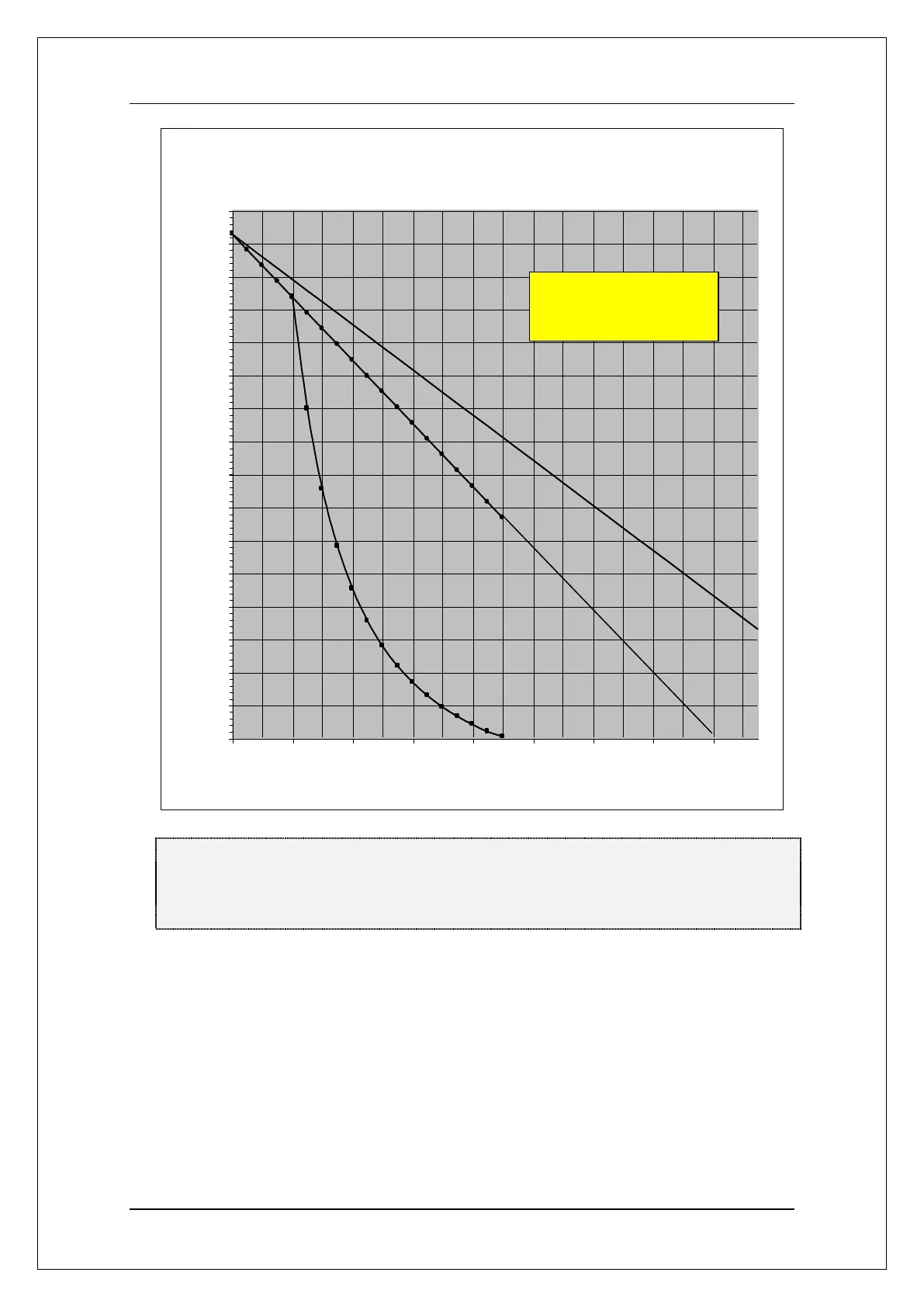

Figure 31. Graphs showing the cable length in relation to the COM loop units' total
current consumption. NOTE! The graphs start at "0 mA" and 863 m cable length
respectively but graph 1 ends at "320 mA" and graph 2 ends at "350 mA". End of
graph = max. allowed loop current. (863 m cable length = 42.3 ohm.)
NOTE! The graphs are valid for the cable type ELQYB 2 x 1 mm
(0.75mm
2
) with the conductor resistance 24.5 ohm / km. The total
conductor resistance (ohm) = L conductor (ohm) + C conductor
(ohm).
2 x 1 mm (0.75 mm
2
)
24.5 ohm / km
