Panasonic EVERVOLT Smart Box - 页 13

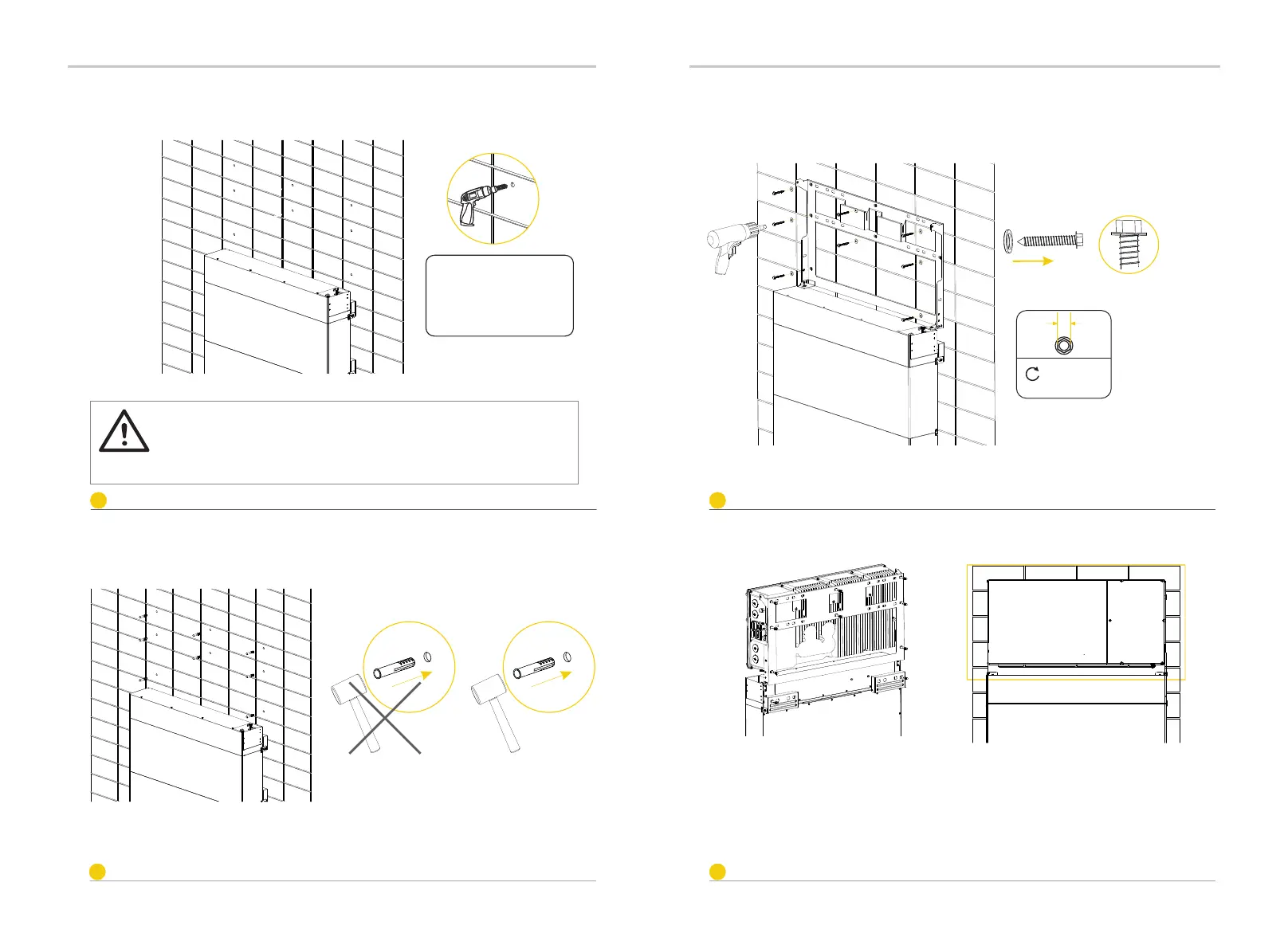

Remove the screws on the bracket and disassemble the bracket
before drill holes.
Mechanical InstallationMechanical Installation
21
20
3
CAUTION!
4
5
6
Depth:
2.16 in / 55 mm
Φ4 drill for wooden wall
Φ10 drill for concrete wall
26.5 lbf.in /
3.0 N·m
1
0
mm
Back view
Front view
For wooden wall,
this step is not required
For solid concrete wall,
this step is required
