Panasonic EVERVOLT Smart Box - Battery Terminals and Breaker; Inverter Breaker and Switch

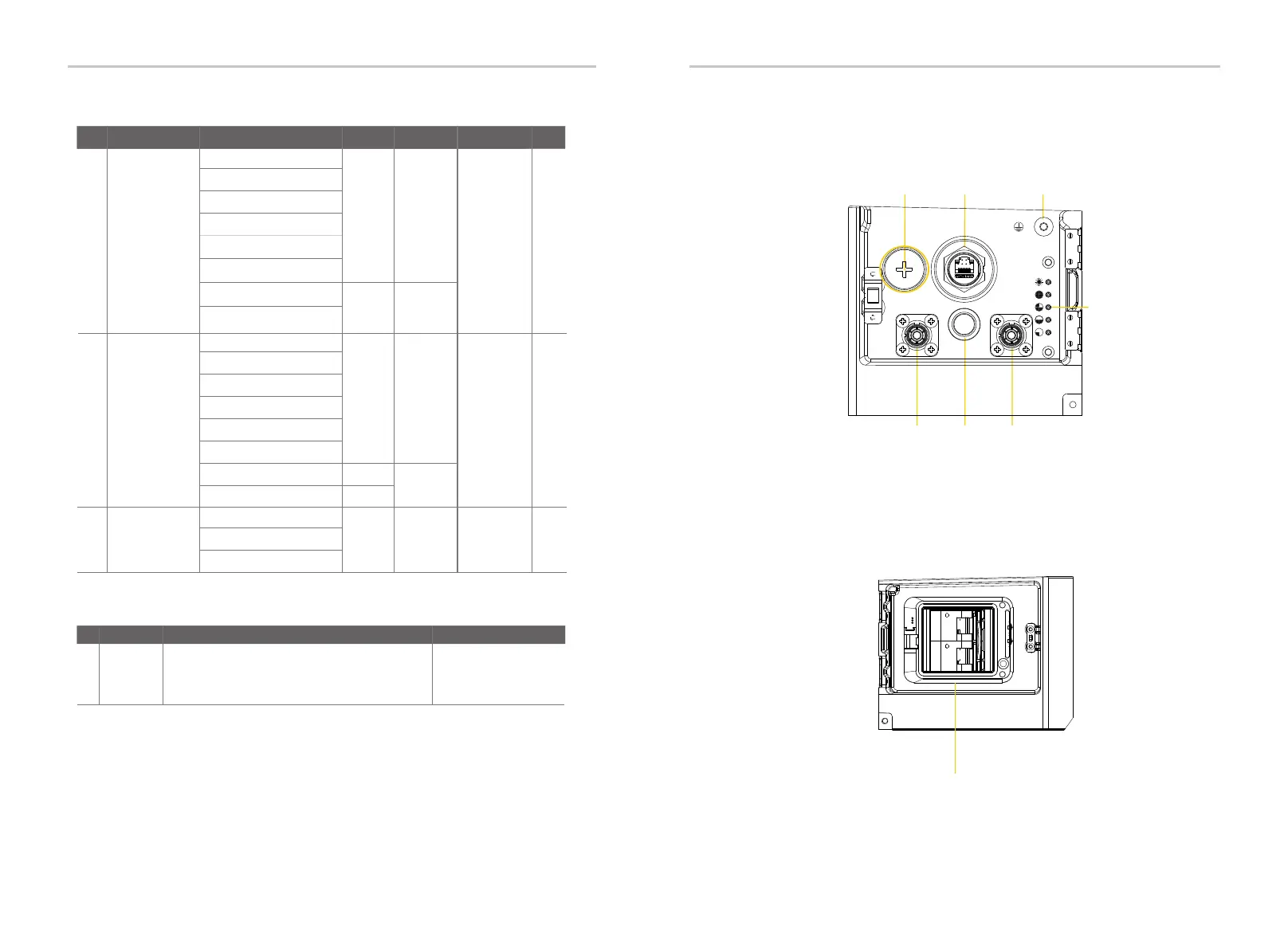

Overview of TerminalsOverview of Terminals
7
Inverter communication terminal (Purchased by customer)
No. Port Pin
5
6
Pin 1: SYSR_L
Pin 2: SYSR_H
Pin 3: CAN_L
Pin 5: RS485_BI_A
Pin 4: CAN_H
Pin 8: GND
Pin 7: +12V
Pin 6: RS485_BI_B
Pin 1: SYSR_L
Pin 2: SYSR_H
Pin 3: CAN_L
Pin 5: RS485_BI_A
Pin 4: CAN_H
Pin 8: GND
Pin 7: +12V
Pin 6: RS485_BI_B
Terminals
Pin 1: GND
Pin 2: RS485_MLPE_A
Pin 3: RS485_MLPE_B
Type
CAT5 or
better
CAT5 or
better
CAT5 or
better
Range
24-18 AWG
18-16 AWG
24-18 AWG
18-16 AWG
24-18 AWG
7
COMM in
terminal
COMM out
terminal
MLPE terminal
Strip Length
Torque
(in-lbs)
0.24 in / 6 mm
1.8
0.24 in / 6 mm
1.8
0.24 in / 6 mm
1.8
Inverter breaker and switch
SourceDescriptionComponent
No.
1
Emergency
stop switch
Normally closed (NC) contact
The UL certification is required for the
emergency stop switch.
Purchase separately
6
DIP
BMS
BAT+
POWER
BAT-
• Terminals breaker of battery
DIP
COMM
terminal
GND
BAT+
BAT-
Power
button
Right side view
Left side view
Circuit breaker
