No. Port Pin
Terminals
Pin 1: CT L1B+
Pin 2: CT L1B-
Type
Shielded,
twisted pair
Range
18
CT L1B terminal
Strip Length
Torque
(in-lbs)
/ / /
Pin 1: CT L2A+
Pin 2: CT L2A-
Shielded,
twisted pair
19
CT L2A terminal
/ / /
Pin 1: CT L2B+
Pin 2: CT L2B-
Shielded,
twisted pair
20
CT L2B terminal
/ / /
EV-SB breaker and switch (Purchased by customer)
11
10
Overview of Terminals
DescriptionComponent
No.
1
Grid breaker
2
Emergency
stop switch
Normally closed (NC) contact
The UL certification is required for the emergency stop switch.
Amps Part Number Description
100 CSR2100 Eaton # CSR2100: 100 A / 240 V, 25 kAIC, 2-Pole
125 CSR2125N Eaton # CSR2125N: 125 A / 240 V, 25 kAIC, 2-Pole
150 CSR2150N Eaton # CSR2150N: 150 A / 240 V, 25 kAIC, 2-Pole
175 CSR2175N Eaton # CSR2175N: 175 A / 240 V, 25 kAIC, 2-Pole
200 CSR2200N Eaton # CSR2200N: 200 A / 240 V, 25 kAIC, 2-Pole
100 BW2100 Eaton # BW2100: 100 A / 240 V, 10 kAIC, 2-Pole
125 BW2125 Eaton # BW2125: 125 A / 240 V, 10 kAIC, 2-Pole
150 BW2150 Eaton # BW2150: 150 A / 240 V, 10 kAIC, 2-Pole
175 BW2175 Eaton # BW2175: 175 A / 240 V, 10 kAIC, 2-Pole
200 BW2200 Eaton # BW2200: 200 A / 240 V, 10 kAIC, 2-Pole
100 BWH2100 Eaton # BWH2100: 100 A / 240 V, 25 kAIC, 2-Pole
125 BWH2125 Eaton # BWH2125: 125 A / 240 V, 25 kAIC, 2-Pole
150 BWH2150 Eaton # BWH2150: 150 A / 240 V, 25 kAIC, 2-Pole
175 BWH2175 Eaton # BWH2175: 175 A / 240 V, 25 kAIC, 2-Pole
200 BWH2200 Eaton # BWH2200: 200 A / 240 V, 25 kAIC, 2-Pole

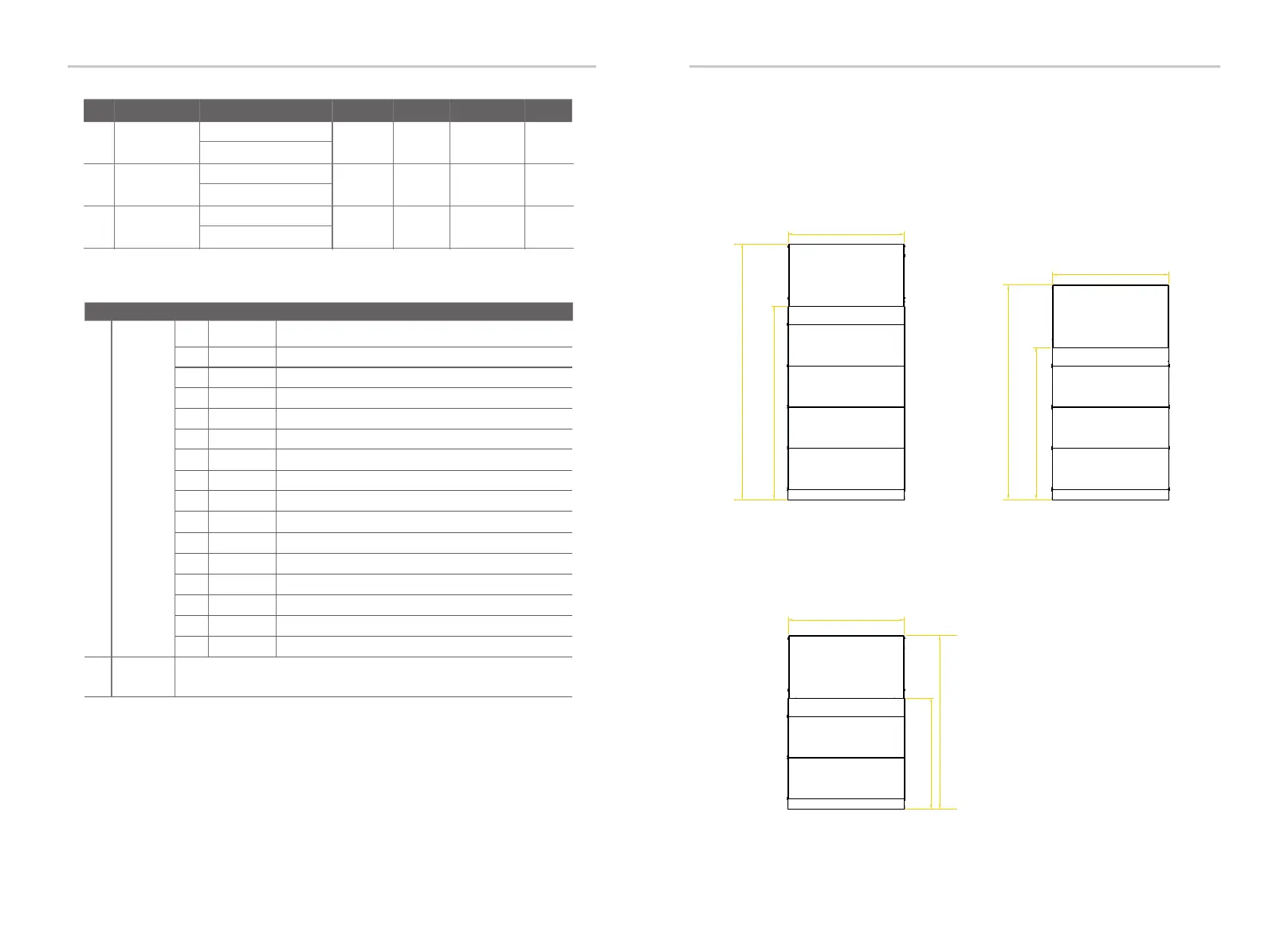

3. Mechanical Installation (Floor-mounting)
• Weight and mounting height instructions
Mechanical Installation
1263 mm
49.72 in
Weight(lb/kg): 353/160
844 mm
33.23 in
808 mm
31.81 in
2 Batteries
Inverter
BMS
Battery
Battery
Base
Weight(lb/kg): 591/268
844 mm
33.23 in
1408 mm
55.43 in
1863 mm
73.35 in
4 Batteries
Inverter
BMS
Battery
Battery
Base
Battery
Battery
Weight(lb/kg): 472/214
844 mm
33.23 in
1108 mm
43.62 in
1563 mm
61.54 in
3 Batteries
Inverter
BMS
Battery
Battery
Base
Battery
