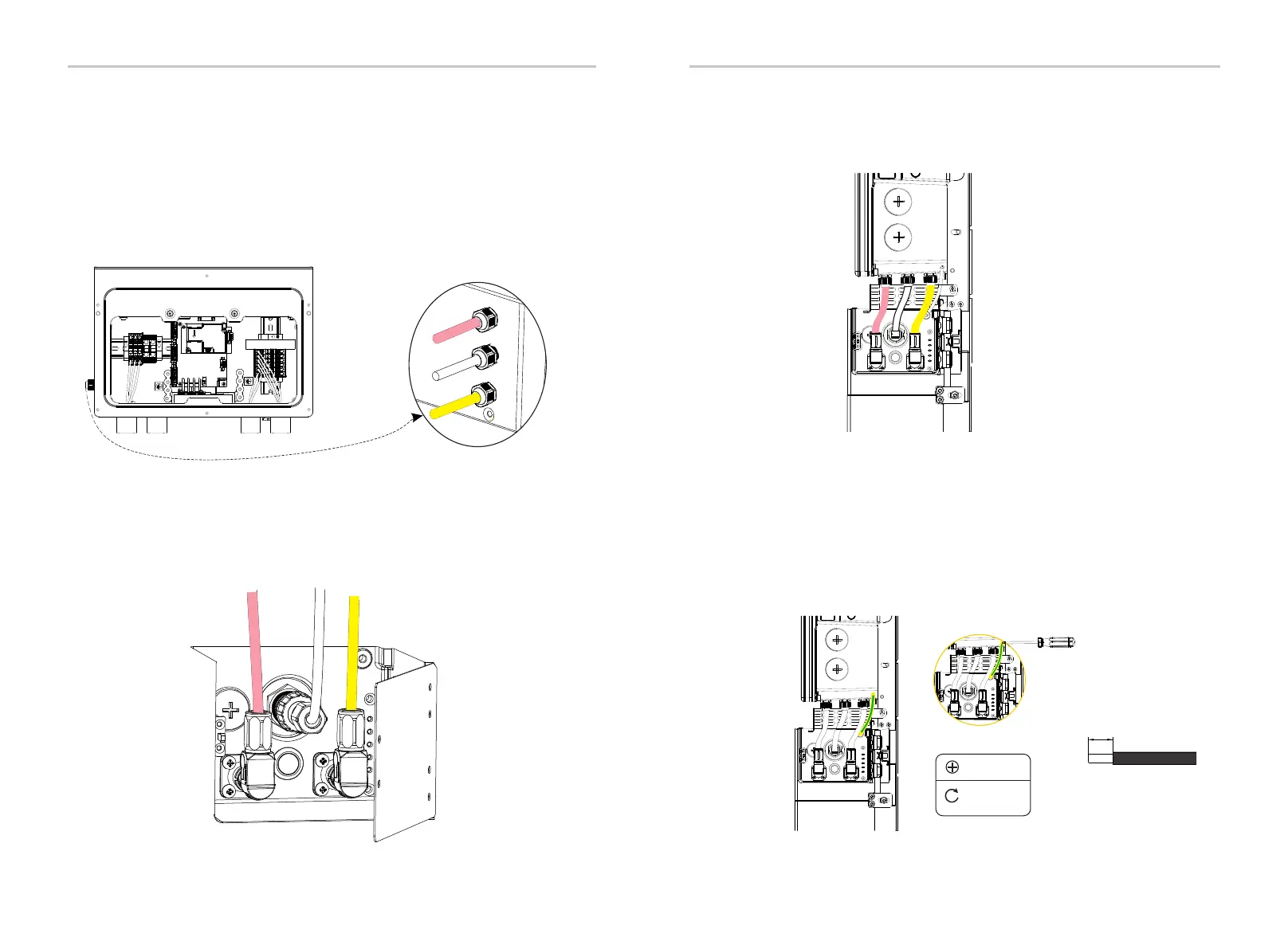

6. Wiring Connection Between Inverter and Battery
• BAT+, BAT- and COMM cable
BAT+
COMM
BAT-
BMS
DIP
POWER
BAT-
BAT+
COM
BAT+
BAT-
On the side of inverter
On the side of battery
• GND cable
BAT+, BAT- and COMM
cable originally connected
on side of inverter.
8 AWG 0.47 in / 12 mm
Wirings
Wiring Connection between Inverter and Battery
Wiring Connection between Inverter and Battery
37
36
Inverter
Battery
Connection between inverter and battery
M5
17.7 lbf.in /
2.0 N·m
For easier connection, please connect the grounding cable on the BMS first.
