7. Wiring Connection on the EV-SB

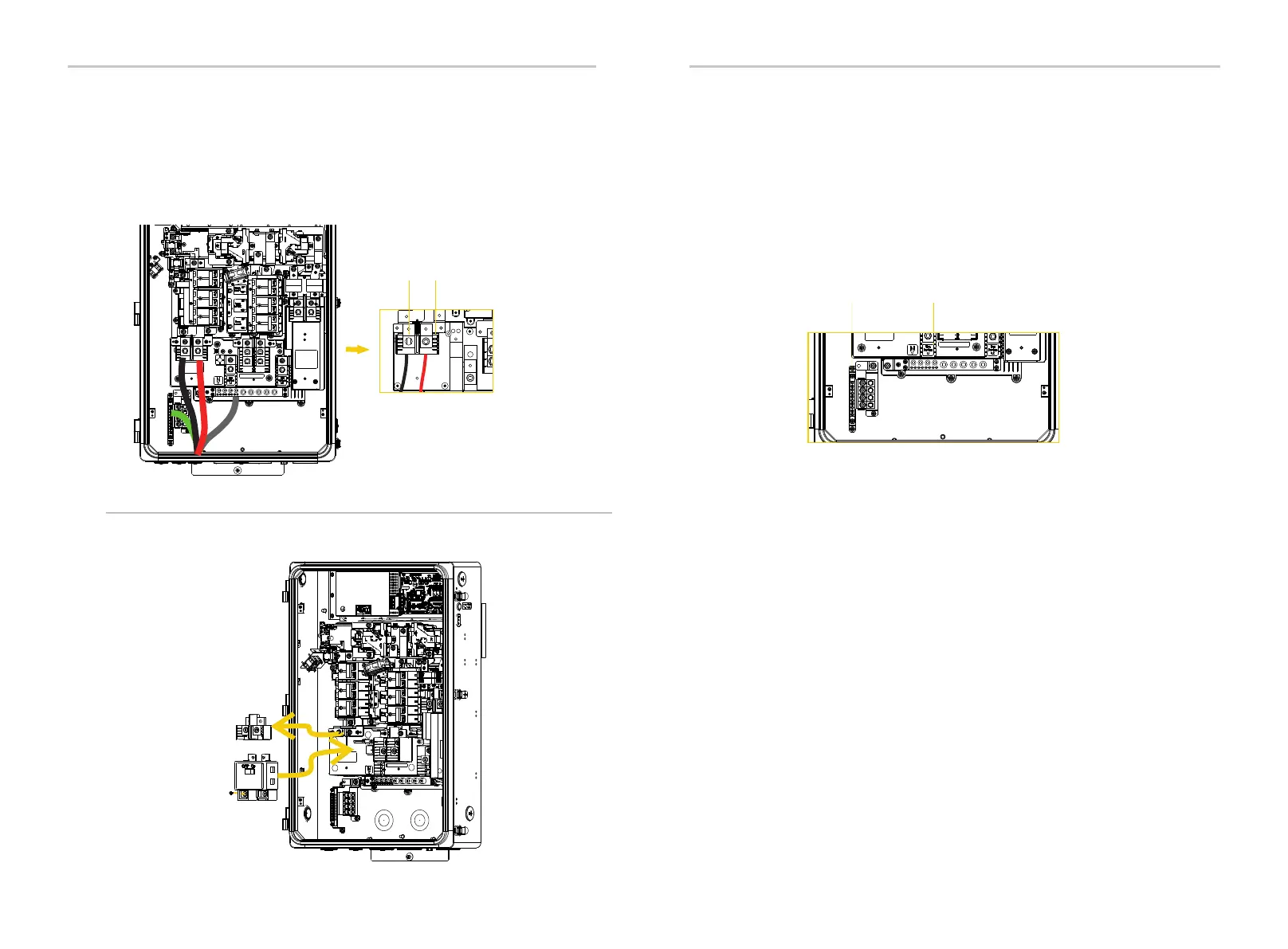

7.1 Connect Inverter Conductors to EV-SB
• ESS 2
• Neutral-Ground Bonding Strap-factory installed
39
38
Remove Neutral-Ground bonding strap from EV-SB if not installed as service
equipment.
Proper earth connection and Neutral-Ground bonding strap is required for safe
operation of the system and for compliance with local code requirements.
L1 L2
ESS 2 Breaker
After installing a main breaker
Before installing a main breaker
Wiring Connection on the EV-SBWiring Connection on the EV-SB
Neutral bar
Grounded bar
