- 23 -
∫ Attaching/Removing the lens hood [WX970]series/[VX870]series
This will reduce the extra light entering the lens in bright sunlight or backlight etc., making it possible
to take clearer pictures.

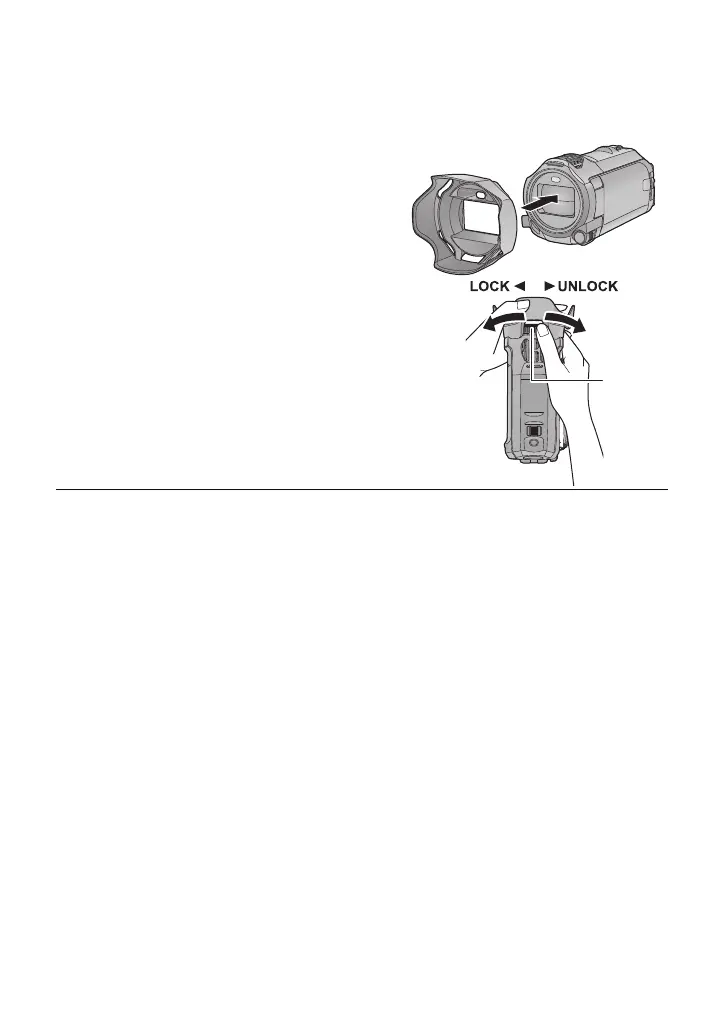

How to attach the lens hood
1 Align the lens hood with this unit.
≥ Attach the lens hood so that you can see its LOCK
and UNLOCK arrows from above.
2 Rotate the lens hood’s mounting ring A
to the LOCK side to tighten it.
How to remove the lens hood
Rotate the lens hood’s mounting ring to the UNLOCK side
to loosen and remove it.
≥ When using a filter kit (optional) or conversion lens
(optional), remove the lens hood.
≥ Remove the lens hood when you use Night Mode ([Infrared]). (l 78)
