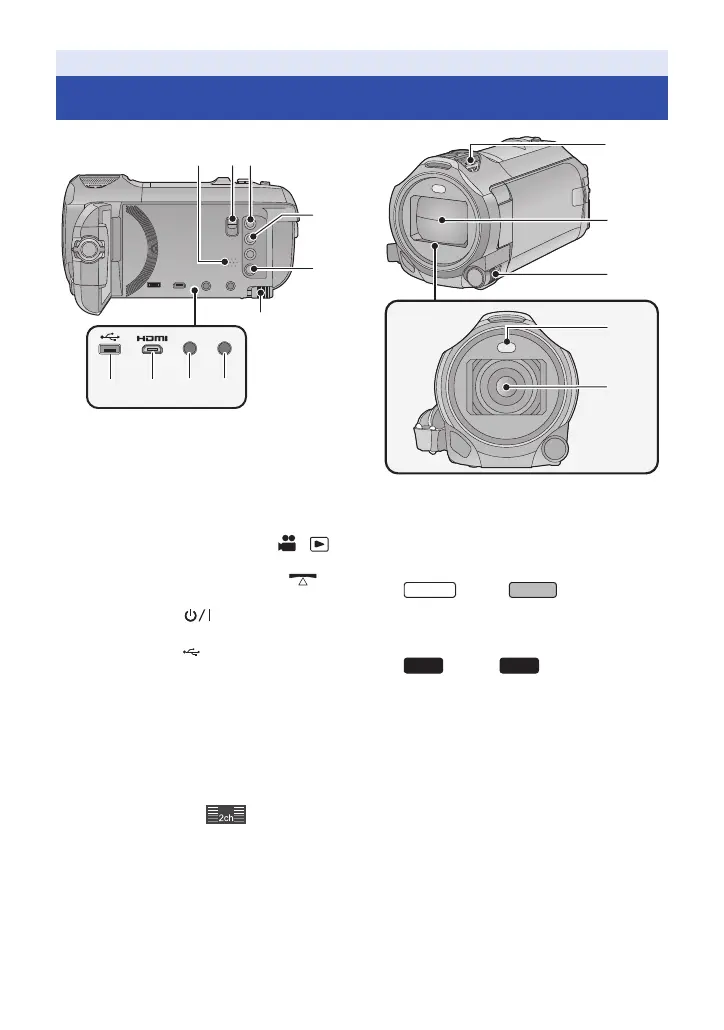

1 Speaker
2 Shoe adaptor release lever
[SHOE ADAPTOR RELEASE] (l 247)
3 Recording/playback button [ / ]
(l 18)
4
Level Shot Function button [ ]
(l 45)
5 Power button [ ] (l 17)
6 Battery release lever [BATT] (l 11)
7 USB terminal
[] (l 137, 144, 219)
8 Micro HDMI connector [HDMI]
(l 129)
9 A/V connector [A/V] (l 129, 146)
10 Microphone terminal [MIC]
≥ A compatible plug-in powered microphone
can be used as an external microphone.
≥ If you connect an external microphone when
a setting other than [AUTO] is selected for
[MIC LEVEL] (l 90), (Microphone
input level meter) will be displayed.
≥ When the unit is connected with the AC
adaptor, sometimes noise may be heard
depending on the microphone type. In this
case, please switch to the battery for the
power supply and the noise will stop.
11 Internal microphones
12 Lens cover
≥ The lens cover opens in Motion Picture
Recording Mode or Still Picture Recording
Mode. (l 18)
13 Multi Manual Dial [CAMERA FUNCTION]
(l 65, 91)
14 Video light (l 78, 94)
15 series/ series
Lens (LEICA DICOMAR)
≥ For information on how to attach the
supplied lens hood, refer to page 23.
series/
Lens
Preparation
Names and Functions of Main Parts
12
13
14
15
11
To Next Page
