KX-FT982LS-B / KX-FT984LS-B / KX-FT988LS-B

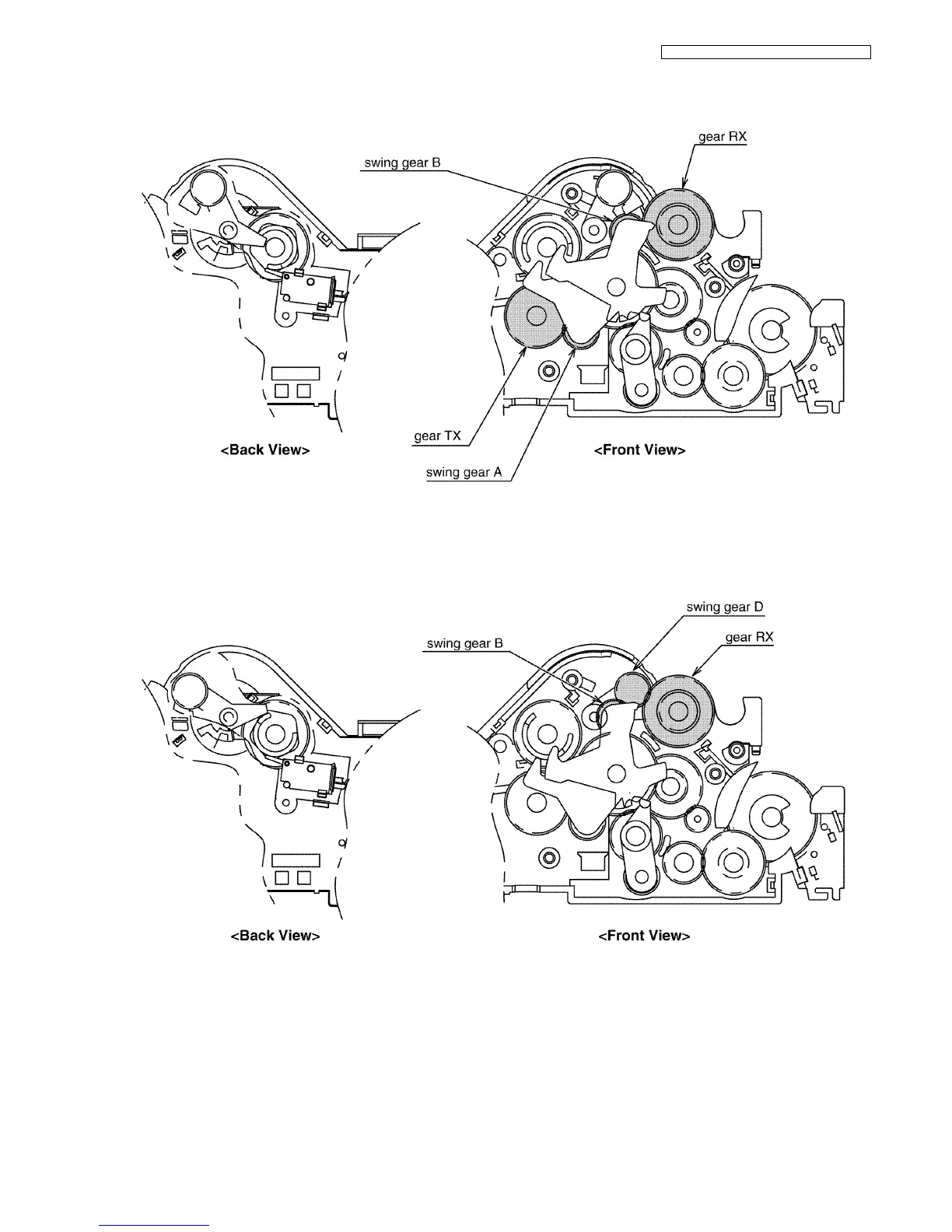

15.2.2.3. Copy Mode
Swing Gear A and B engage Gear TX and Gear RX respectively and drive both the Separation Roller Gear and the Platen Roller
Gear for feeding documents and recording paper in the copying operation.
Fig. D: Copy mode
15.2.2.4. Reverse Mode
Swing gear D engages between swing gear B and gear RX, and conveys its drive power to the platen roller gear for reversing the
recording paper.
Fig. E: Reverse mode
