Panasonic KX-FT982LS-B - Page 99

99
KX-FT982LS-B / KX-FT984LS-B / KX-FT988LS-B
12.5.4. ADF (Auto Document Feed) Section

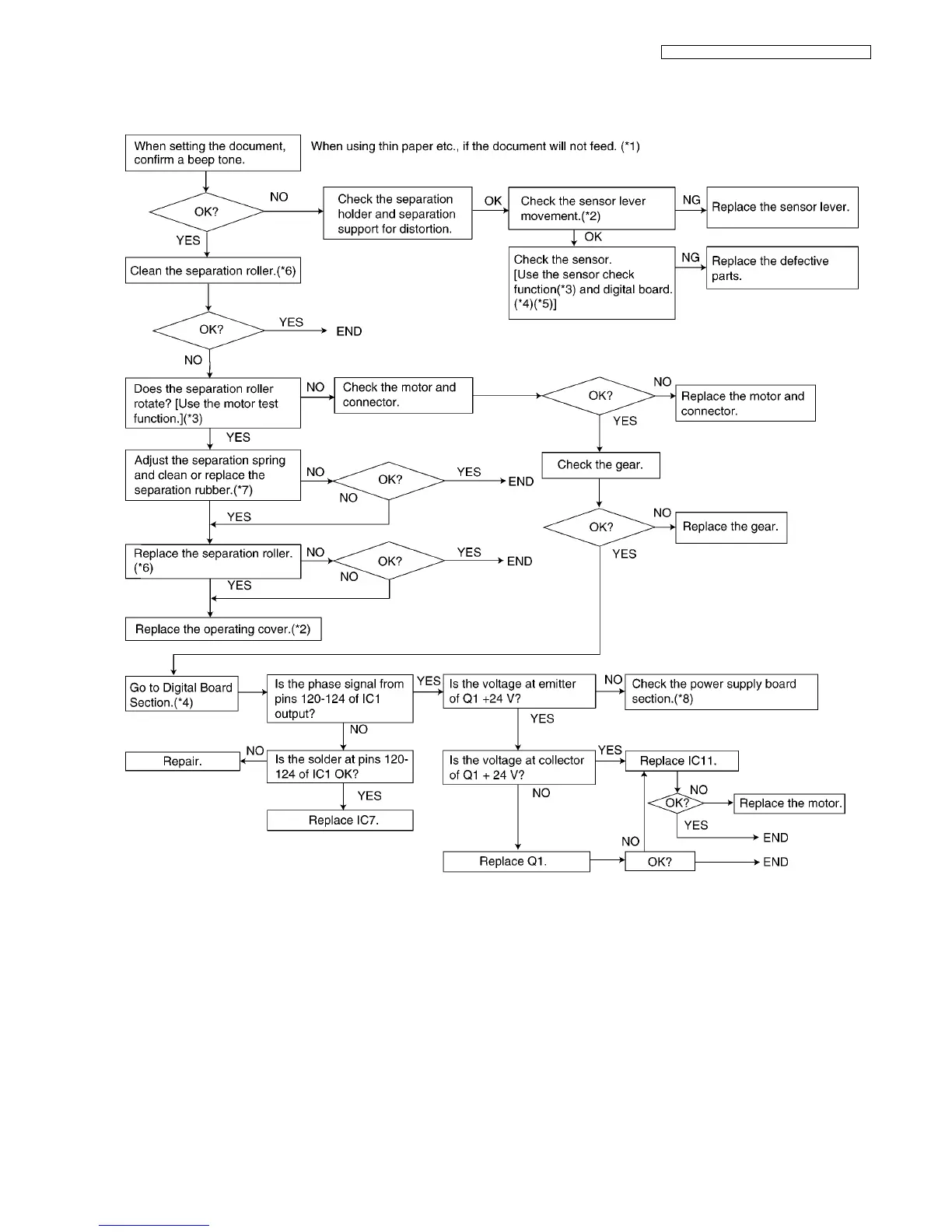

12.5.4.1. No Document Feed
REFERENCE:
(*1): Multiple Feed (P.101)
(*2): How to Remove the Operation Board, LCD and Platen Roller (P.137)
(*3): Test Mode (P.55)
(*4): Digital Board Section (P.107)
(*5): Sensor Section (P.124)
(*6): How to Remove the Gear Block and Separation Roller (P.135)
(*7): How to Remove the Separation Rubber Flap (P.138)
(*8): Power Supply Board Section (P.120)
