KX-TG4221N/KX-TG4222N/KX-TG4223N/KX-TG313SK/KX-TG4224N/KX-TG4225N/KX-TGA421N

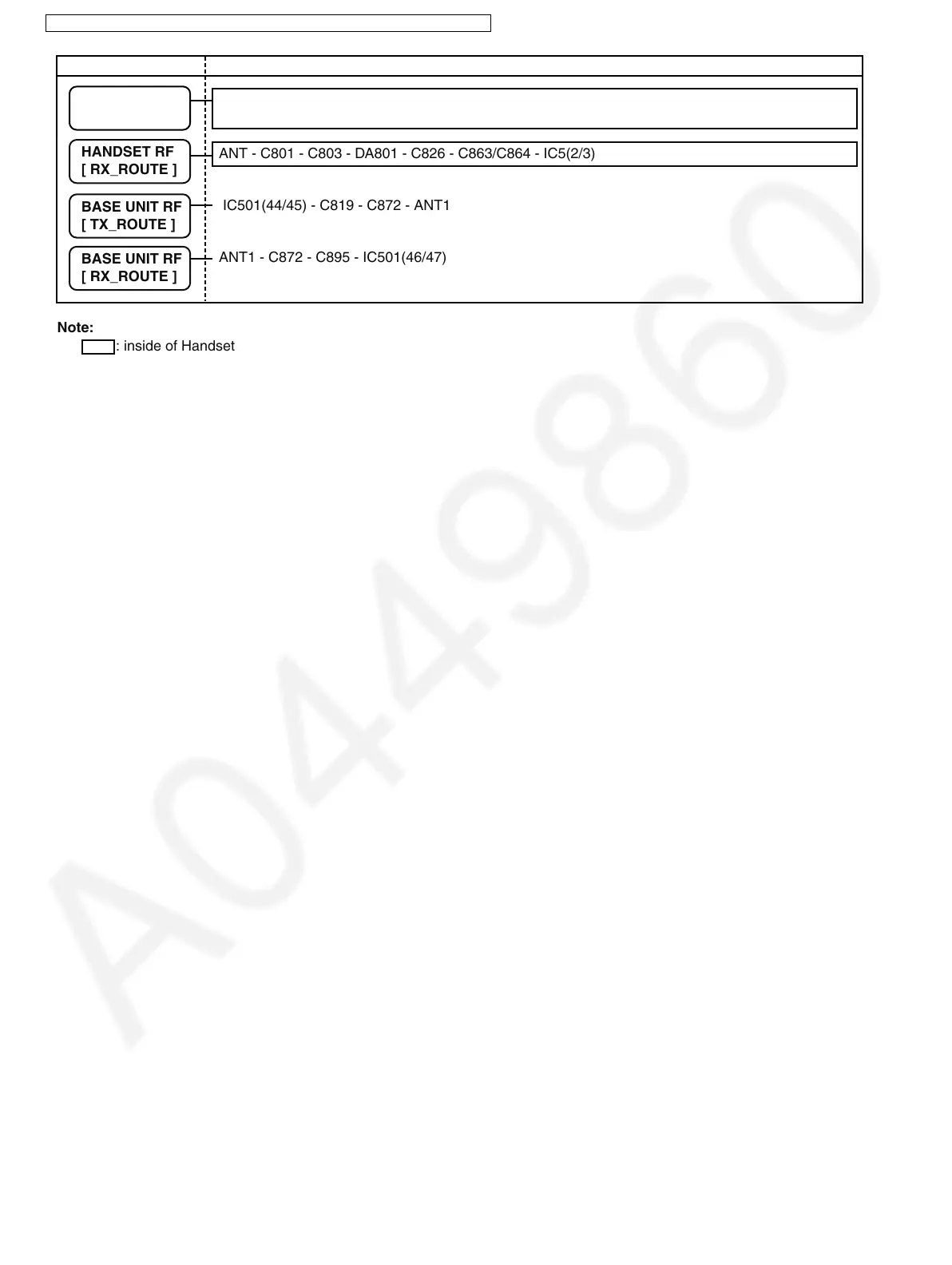

RF part signal route

SIGNAL ROUTE

IN 䊻㻌 ROUTE 䊻㻌 OUT

HANDSET RF

[ TX_ROUTE ]

HANDSET RF

[ RX_ROUTE ]

BASE UNIT RF

[ TX_ROUTE ]

BASE UNIT RF

[ RX_ROUTE ]

IC5(86/87) - L809 - C812 - DA801 - C803 - C801 - ANT

ANT - C801 - C803 - DA801 - C826 - C863/C864 - IC5(2/3)

IC501(44/45) - C819 - C872 - ANT1

ANT1 - C872 - C895 - IC501(46/47)

Note:

: inside of Handset
