Panasonic KX-TG4221N

86
KX-TG4221N/KX-TG4222N/KX-TG4223N/KX-TG313SK/KX-TG4224N/KX-TG4225N/KX-TGA421N

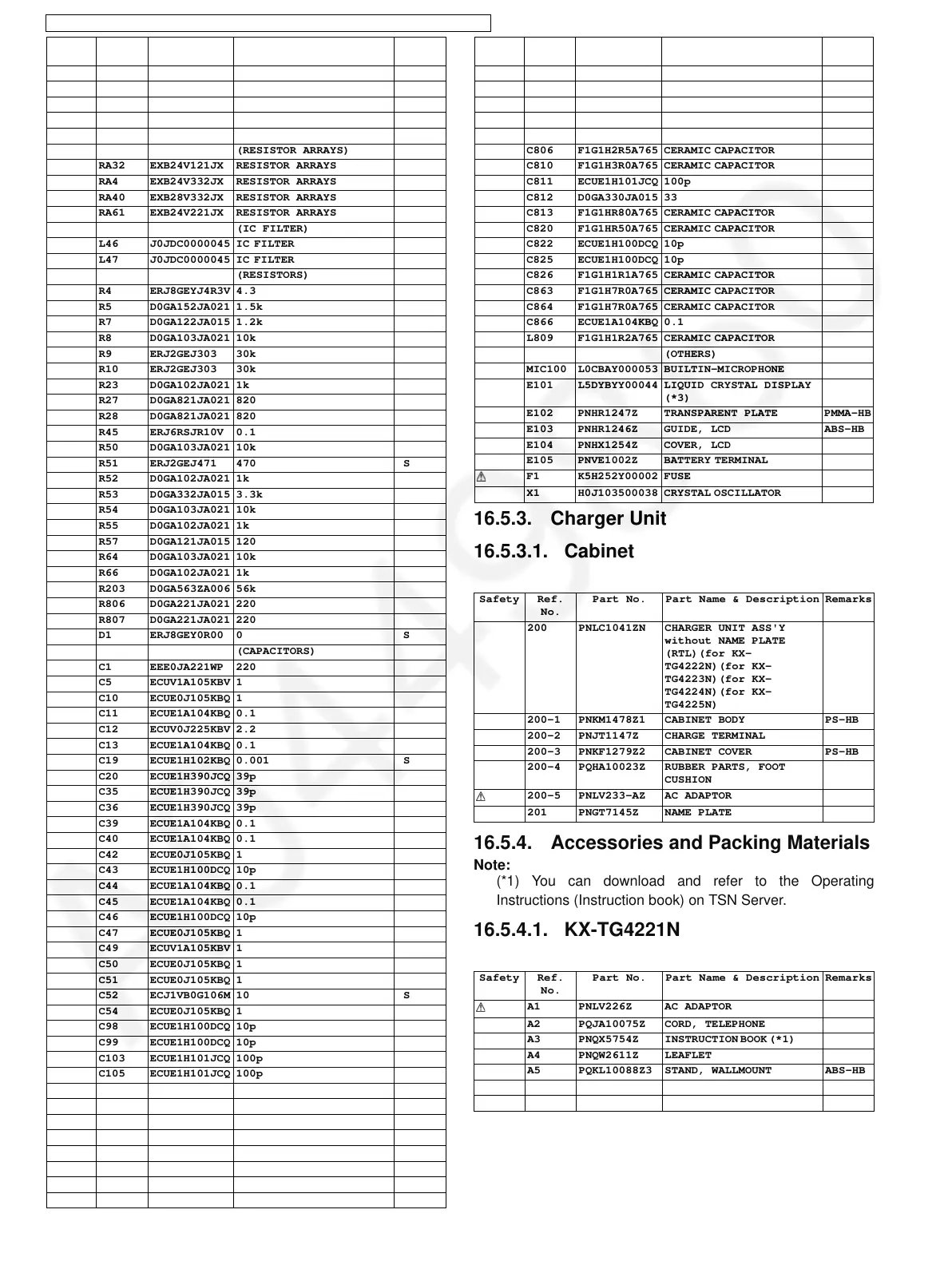

16.5.3. Charger Unit
16.5.3.1. Cabinet
16.5.4. Accessories and Packing Materials
Note:
(*1) You can download and refer to the Operating
Instructions (Instruction book) on TSN Server.
16.5.4.1. KX-TG4221N
(LEDS)
LED12 B3ACB0000216 LED
LED21 B3ACB0000216 LED
LED22 B3ACB0000216 LED
LED23 B3ACB0000216 LED
(RESISTOR ARRAYS)
RA32 EXB24V121JX RESISTOR ARRAYS
RA4 EXB24V332JX RESISTOR ARRAYS
RA40 EXB28V332JX RESISTOR ARRAYS
RA61 EXB24V221JX RESISTOR ARRAYS
(IC FILTER)
L46 J0JDC0000045 I C F I L T E R
L47 J0JDC0000045 I C F I L T E R
(RESISTORS)
R4 ERJ8GEYJ4R3V 4.3
R5 D0GA152JA021 1.5 k
R7 D0GA122JA015 1.2 k
R8 D0GA103JA021 10 k
R9 ERJ2GEJ303 30k
R10 ERJ2GEJ303
30k
R23 D0GA102JA021 1k
R27 D0GA821JA021 820
R28 D0GA821JA021 820
R45 ERJ6RSJR10V 0.1
R50 D0GA103JA021 10 k
R51 ERJ2GEJ471 470 S
R52 D0GA102JA021 1k
R53 D0GA332JA015 3.3 k
R54 D0GA103JA021 10 k
R55 D0GA102JA021 1k
R57 D0GA121JA015 120
R64 D0GA103JA021 10 k
R66 D0GA102JA021 1k
R203 D0GA563ZA006 56 k
R806 D0GA221JA021 220
R807 D0GA221JA021
220
D1 ERJ8GEY0R00 0 S
(CAPACITORS)
C1 EEE0JA221WP 220
C5 ECUV1A105KBV 1
C10 ECUE0J105KBQ 1
C11 ECUE1A104KBQ 0.1
C12 ECUV0J225KBV 2.2
C13 ECUE1A104KBQ 0.1
C19 ECUE1H102KBQ 0.001 S
C20 ECUE1H390JCQ 39 p
C35 ECUE1H390JCQ 39 p
C36 ECUE1H390JCQ 39 p
C39 ECUE1A104KBQ 0.1
C40 ECUE1A104KBQ 0.1
C42 ECUE0J105KBQ 1
C43 ECUE1H100DCQ 10 p
C44 ECUE1A104KBQ 0.1
C45 ECUE1A104KBQ
0.1
C46 ECUE1H100DCQ 10 p
C47 ECUE0J105KBQ 1
C49 ECUV1A105KBV 1
C50 ECUE0J105KBQ 1
C51 ECUE0J105KBQ 1
C52 ECJ1VB0G106M 10 S
C54 ECUE0J105KBQ 1
C98 ECUE1H100DCQ 10 p
C99 ECUE1H100DCQ 10 p
C103 ECUE1H101JCQ 100 p
C105 ECUE1H101JCQ 100 p
C150 ECUV1C104KBV 0.1
C172 ECUE0J105KBQ 1
C188 ECUE0J105KBQ 1
C190 ECUE1A104KBQ 0.1
C191 ECUE0J105KBQ 1
C201 ECUV1C105KBV 1
C204 ECUV1C104KBV 0.1
C205 ECUE0J105KBQ 1
Safety Ref.
No.
Part No. Part Name & Description Remarks
C801 ECUV1H100DCV 10p
C802 F1G1H2R0A765 CERAMIC CAPACITOR
C803 F1G1H1R5A765 CERAMIC CAPACITOR
C804 F1G1H2R0A765 CERAMIC CAPACITOR
C805 F1G1H2R5A765 CERAMIC CAPACITOR
C806 F1G1H2R5A765 CERAMIC CAPACITOR
C810 F1G1H3R0A765 CERAMIC CAPACITOR
C811 ECUE1H101JCQ 100 p
C812 D0GA330JA015 33
C813 F1G1HR80A765 CERAMIC CAPACITOR
C820 F1G1HR50A765 CERAMIC CAPACITOR
C822 ECUE1H100DCQ 10p
C825 ECUE1H100DCQ 10p
C826 F1G1H1R1A765 CERAMIC CAPACITOR
C863 F1G1H7R0A765
CERAMIC CAPACITOR
C864 F1G1H7R0A765 CERAMIC CAPACITOR
C866 ECUE1A104KBQ 0.1
L809 F1G1H1R2A765 CERAMIC CAPACITOR
(OTHERS)
MIC100 L0CBAY000053 BUILTIN-MICROPHONE
E101 L5DYBYY00044 LIQUID CRYSTAL DISPLAY
(*3)
E102 PNHR1247Z TRANSPARENT PLATE PMMA-HB
E103 PNHR1246Z GUIDE, LCD ABS-HB
E104 PNHX1254Z COVER, LCD
E105 PNVE1002Z BATTERY TERMINAL
F1 K5H252Y00002
FUSE
X1 H0J103500038 CRYSTAL OSCILLATOR
Safety Ref.
No.
Part No. Part Name & Description Remarks
200 PNLC1041ZN CHARGER UNIT ASS'Y
without NAME PLATE
(RTL)(for KX-
TG4222N)(for KX-
TG4223N)(for KX-
TG4224N)(for KX-
TG4225N)
200-1 PNKM1478Z1 CABINET BODY PS-HB
200-2 PNJT1147Z CHARGE TERMINAL
200-3 PNKF1279Z2 CABINET COVER PS-HB
200-4 PQHA10023Z RUBBER PARTS, FOOT
CUSHION
200-5 PNLV233-AZ AC ADAPTOR
201 PNGT7145Z NAME PLATE
Safety Ref.
No.
Part No. Part Name & Description Remarks
A1 PNLV226Z AC ADAPTOR
A2 PQJA10075Z CORD, TELEPHONE
A3 PNQX5754Z INSTRUCTION BOOK (*1)
A4 PNQW2611Z LEAFLET
A5 PQKL10088Z3 STAND, WALLMOUNT ABS-HB
P1 PN P K 36 3 9 0 0 1Z GI F T BO X
P2 PNPD1716Z PAD
Safety Ref.
No.
Part No. Part Name & Description Remarks
