KX-TG4221N/KX-TG4222N/KX-TG4223N/KX-TG313SK/KX-TG4224N/KX-TG4225N/KX-TGA421N

11 Disassembly and Assembly Instructions

11.1. Disassembly Instructions

11.1.1. Base Unit

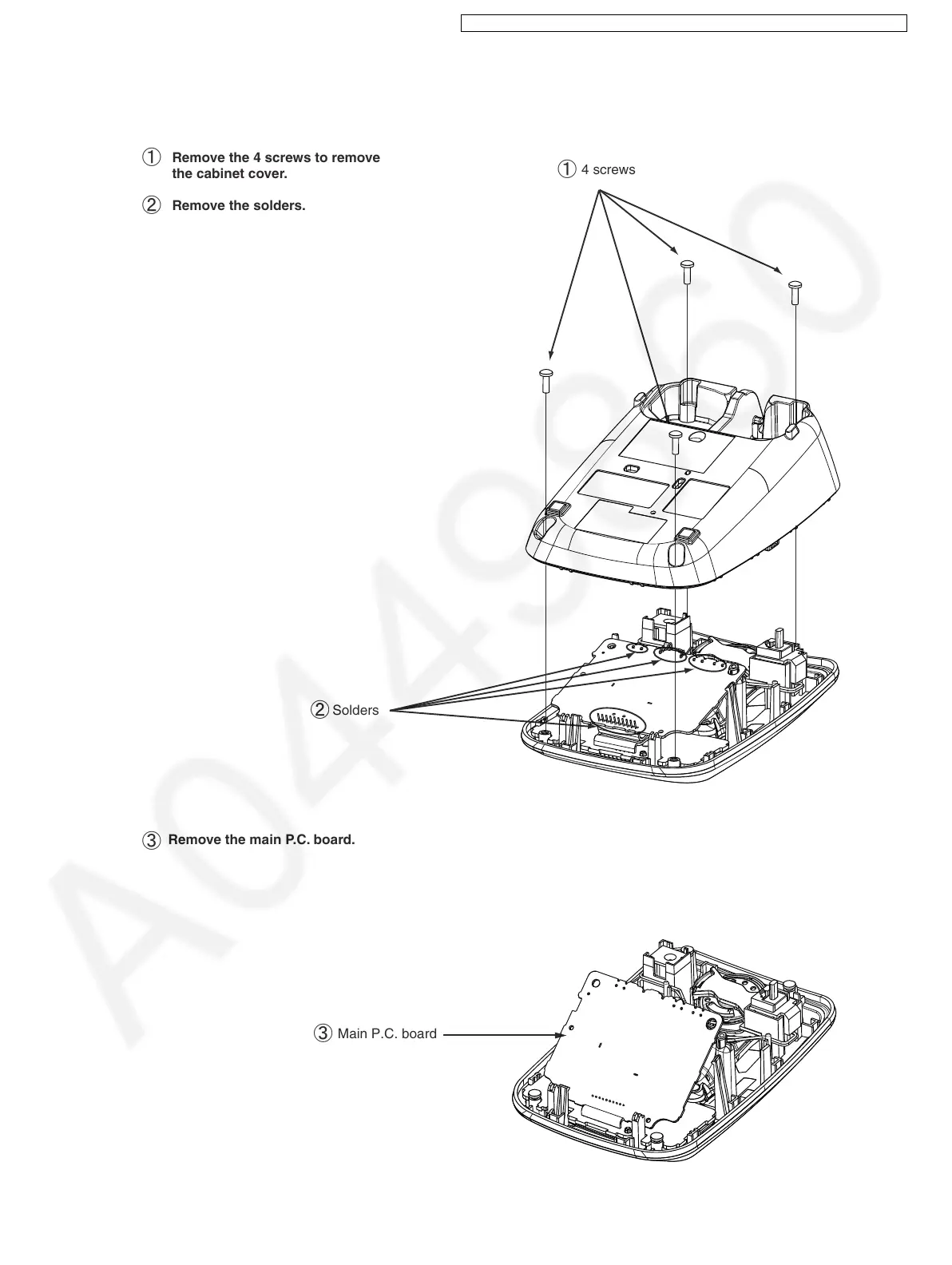

Remove the 4 screws to remove

the cabinet cover.

Remove the solders.

Remove the main P.C. board.

Main P.C. board

4 screws

Solders
