Before Use

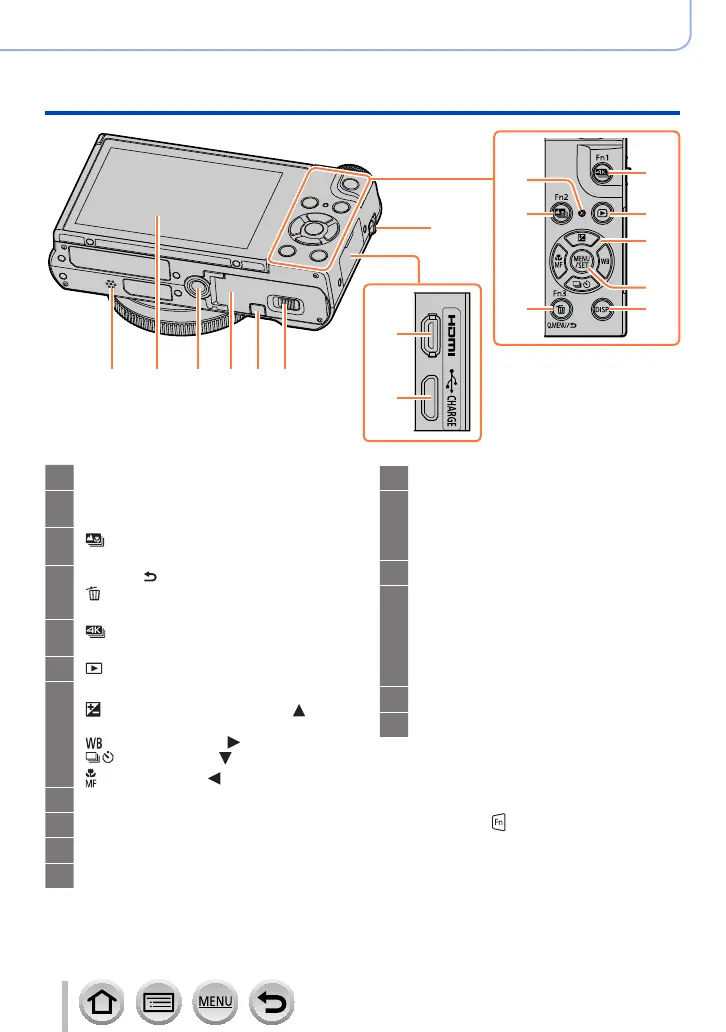

Names and Functions of Main Parts
10
Strap eyelet (→18)
16
Charging lamp (→22) /
Wi-Fi
®
connection lamp (→228)
17
[ ] ([Post Focus]) button (→121) /
[Fn2] button (→46)
18
[Q.MENU/ ] (Cancel) button (→44) /
[
] (Delete) button (→168) /
[Fn3] button (→46)
19
[ ] (4K photo mode) button (→110) /
[Fn1] button (→46)
20
[ ] (Playback) button (→161)
21
Cursor button (→37)
[
] (Exposure compensation) ( )
(→103)
[
] (White Balance) ( ) (→106)
[
] (Drive Mode) ( ) (→126)
[
] (Focus Mode) ( ) (→87, 99, 100)
22
[MENU/SET] button (→37)
23
[DISP.] button (→37)
24
[HDMI] socket (→270)
25
[USB/CHARGE] socket (→21, 276, 279)
26
Release lever (→20)
27
DC coupler cover (→282)
When using an AC adaptor, ensure that
the Panasonic DC coupler (optional) and
AC adaptor (optional) are used.
28
Card/Battery door (→20, 24)
29
Tripod mount (→303)
Do not attach this unit to tripods that
have screws with a length of 5.5 mm
(0.22 inch) or more. Doing so may
damage this unit or the unit may not be
secured properly on the tripod.
30
Touch screen (→39) / monitor (→283)
31
Speaker (→30)
■
Function buttons [Fn4] to [Fn8]
• Buttons [Fn4] to [Fn8] (→46) are
touch icons. They can be displayed by
touching the [
] tab on the recording
screen.
