Panasonic PT-AE7000U PT-AT5000E PT-AE700EA PT-AE7000EH

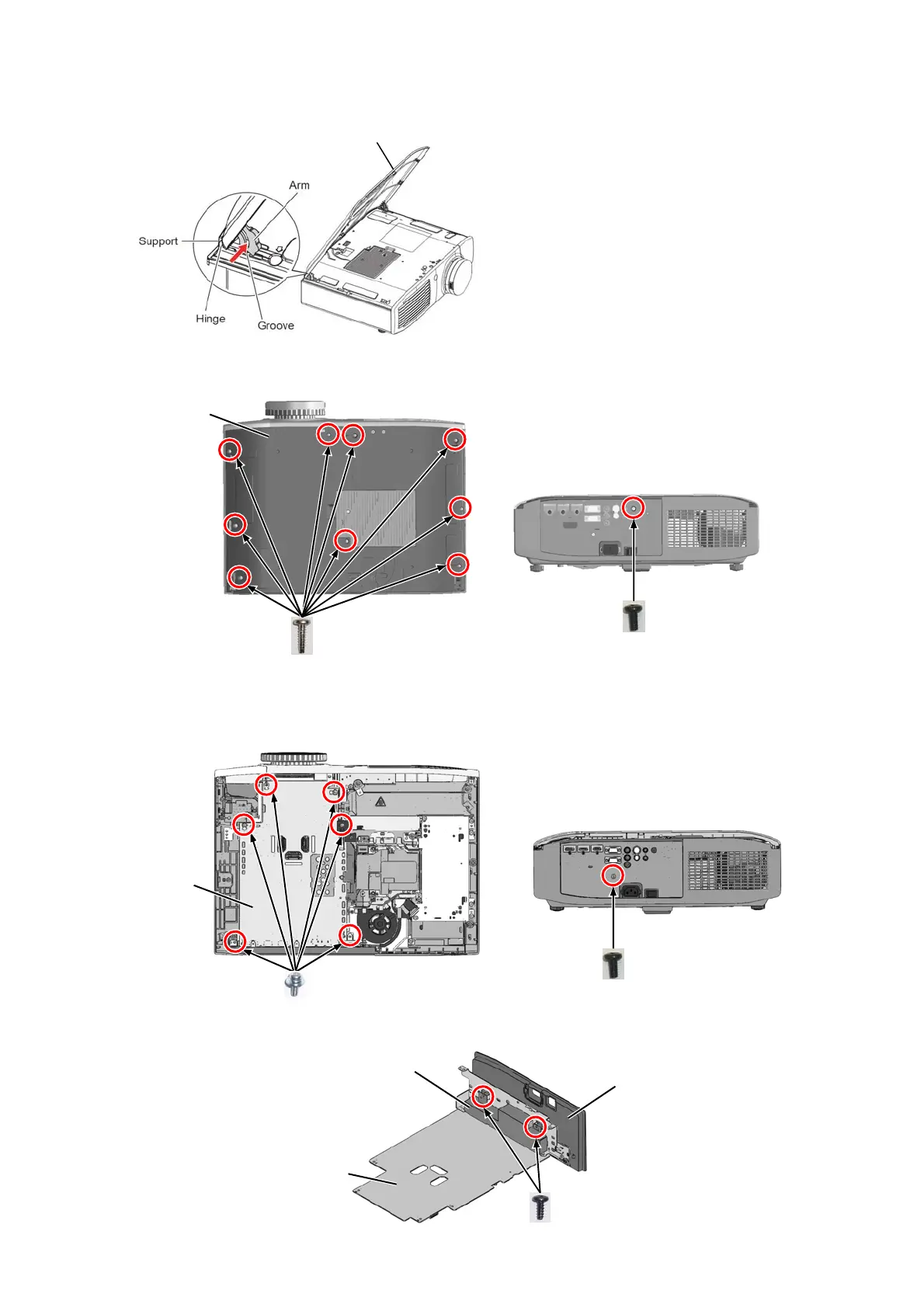

2. 2. Removal of Top Cover
1. Remove the Top panel.
1) Hold the top cover as shown in the diagram.
2) While pushing the arm in the direction of the arrow
(inside projector), pull out from the groove.
* Attaching the top panel
1) Hold the top cover as shown in the diagram.
2) Align the hinge with the support.
3) while pushing the arm in the direction of the arrow
(inside projector) push it into the groove.
2. Unscrew the 9 screws on the top side and 1 screw on the rear side.
2. 3. Removal of A-P.C.Board
1. Remove the Top Cover according to the section 2.2 "Removal of Top Cover".
2. Unscrew the 7 screws and remove the A-P.C.Board block.
3. Unscrew the 2 screws and remove the Terminal cover and Shading sheet.
Shading sheet
Terminal cove
r
A
-P.C.Board
A
-P.C.Board block
Top cove
r
Top panel
DIS-4
