Panasonic PT-VW535N

<SERIAL IN> terminal
The <SERIAL IN> terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled
from a computer.

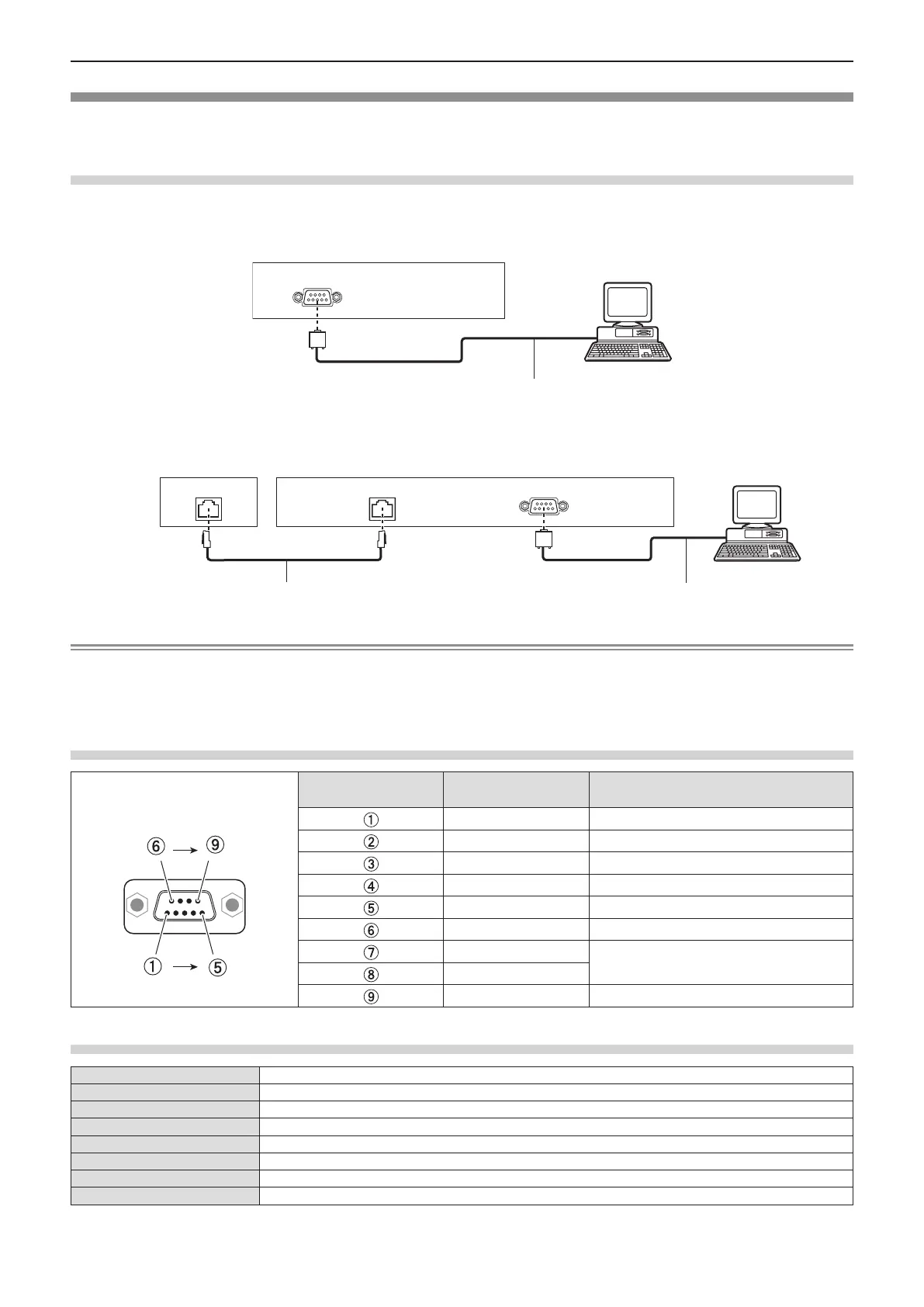

Connection
● When connecting directly
Connecting terminals on projector
D-Sub 9p (female)
Computer
Communication cable (straight)
D-Sub 9p (male)
● When connecting with DIGITAL LINK compatible devices
Computer
LAN cable (straight)
Projector connecting terminals
DIGITAL LINK compatible device
Commumication cable (straight)
DIGITAL LINK
D-Sub 9p (female)
D-Sub 9p (male)
DIGITAL LINK
Note
f The destination of [RS-232C] (x page 81) must be set according to the connection method.
f When connecting by a DIGITAL LINK compatible device, set the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] →
[STANDBY MODE] (x page 81) to [NORMAL] to control the projector in standby mode.
When [STANDBY MODE] is set to [ECO], the projector cannot be control during standby.
Pin assignments and signal names
D-Sub 9-pin (female)
Outside view
Pin No. Signal name Contents
— NC
TXD Transmitted data
RXD Received data
— NC
GND Earth
— NC
CTS
Connected internally
RTS
— NC
Communication conditions (Factory default)
Signal level RS-232C-compliant
Sync. method Asynchronous
Baud rate 9 600 bps
Parity None
Character length 8 bits
Stop bit 1 bit
X parameter None
S parameter None
ENGLISH - 139
Chapter 7 Appendix - Technical Information
