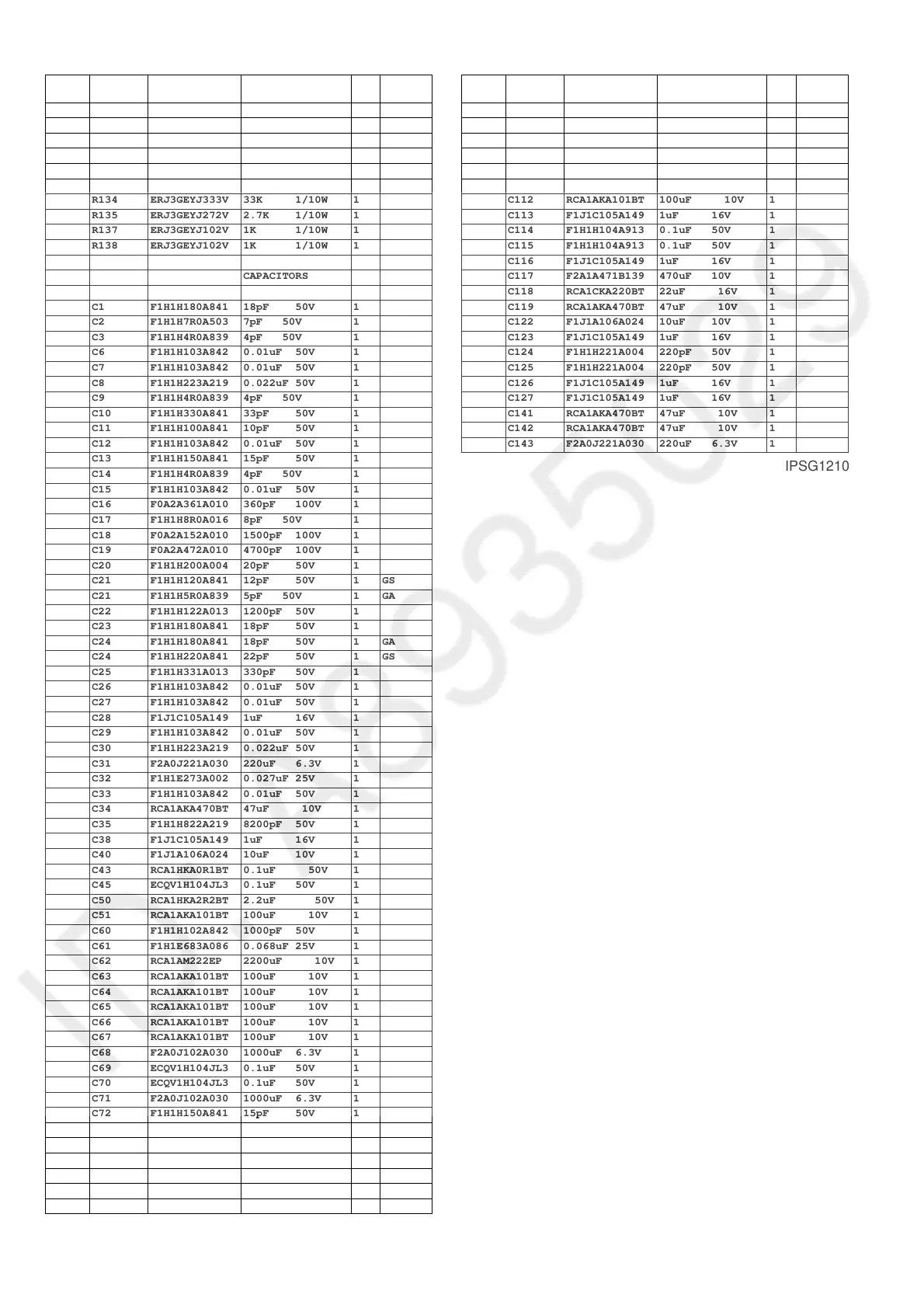

Panasonic RF-800UGA - Page 42

42
IPSG1210
R126 ERJ3GEYJ220V 22 1/10W 1
R127 ERJ3GEYJ220V 22 1/10W 1
R128 ERJ3GEYJ333V 33K 1/10W 1
R129 ERJ3GEYJ104V 100K 1/10W 1
R130 ERJ3GEYJ153V 15K 1/10W 1
R131 ERJ3GEYJ472V 4.7K 1/10W 1
R134 ERJ3GEYJ333V 33K 1/10W 1
R135 ERJ3GEYJ272V 2.7K 1/10W 1
R137 ERJ3GEYJ102V 1K 1/10W 1
R138 ERJ3GEYJ102V 1K 1/10W 1
CAPACITORS
C1 F1H1H180A841 18pF 50V 1
C2 F1H1H7R0A503 7pF 50V 1
C3 F1H1H4R0A839 4pF 50V 1
C6 F1H1H103A842 0.01uF 50V 1
C7 F1H1H103A842 0.01uF 50V 1
C8 F1H1H223A219 0.022uF 50V 1
C9 F1H1H4R0A839 4pF 50V 1
C10 F1H1H330A841 33pF 50V 1
C11 F1H1H100A841 10pF 50V 1
C12 F1H1H103A842 0.01uF 50V 1
C13 F1H1H150A841 15pF 50V 1
C14 F1H1H4R0A839 4pF 50V 1
C15 F1H1H103A842 0.01uF 50V 1
C16 F0A2A361A010 360pF 100V 1
C17 F1H1H8R0A016 8pF 50V 1
C18 F0A2A152A010 1500pF 100V 1
C19 F0A2A472A010 4700pF 100V 1
C20 F1H1H200A004 20pF 50V 1
C21 F1H1H120A841 12pF 50V 1 GS
C21 F1H1H5R0A839 5pF 50V 1 GA
C22 F1H1H122A013 1200pF 50V 1
C23 F1H1H180A841 18pF 50V 1
C24 F1H1H180A841 18pF 50V 1 GA
C24 F1H1H220A841 22pF 50V 1 GS
C25 F1H1H331A013 330pF 50V 1
C26 F1H1H103A842 0.01uF 50V 1
C27 F1H1H103A842 0.01uF 50V 1
C28 F1J1C105A149 1uF 16V 1
C29 F1H1H103A842 0.01uF 50V 1
C30 F1H1H223A219 0.022uF 50V 1
C31 F2A0J221A030 220uF 6.3V 1
C32 F1H1E273A002 0.027uF 25V 1
C33 F1H1H103A842 0.01uF 50V 1
C34 RCA1AKA470BT 47uF 10V 1
C35 F1H1H822A219 8200pF 50V 1
C38 F1J1C105A149 1uF 16V 1
C40 F1J1A106A024 10uF 10V 1
C43 RCA1HKA0R1BT 0.1uF 50V 1
C45 ECQV1H104JL3 0.1uF 50V 1
C50 RCA1HKA2R2BT 2.2uF 50V 1
C51 RCA1AKA101BT 100uF 10V 1
C60 F1H1H102A842 1000pF 50V 1
C61 F1H1E683A086 0.068uF 25V 1
C62 RCA1AM222EP 2200uF 10V 1
C63 RCA1AKA101BT 100uF 10V 1
C64 RCA1AKA101BT 100uF 10V 1
C65 RCA1AKA101BT 100uF 10V 1
C66 RCA1AKA101BT 100uF 10V 1
C67 RCA1AKA101BT 100uF 10V 1
C68 F2A0J102A030 1000uF 6.3V 1
C69 ECQV1H104JL3 0.1uF 50V 1
C70 ECQV1H104JL3 0.1uF 50V 1
C71 F2A0J102A030 1000uF 6.3V 1
C72 F1H1H150A841 15pF 50V 1
C73 F1H1H103A842 0.01uF 50V 1
C101 F1H1H151A792 150pF 50V 1
C102 F1H1H104A913 0.1uF 50V 1
C103 F1H1H104A913 0.1uF 50V 1
C104 F1H1H104A913 0.1uF 50V 1
C105 F1H1H104A913 0.1uF 50V 1
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
C106 F1H1H120A841 12pF 50V 1
C107 F1H1H120A841 12pF 50V 1
C108 F1J1A106A024 10uF 10V 1
C109 F1H1H104A913 0.1uF 50V 1
C110 F1H1H561A219 560pF 50V 1
C111 F1H1H561A219 560pF 50V 1
C112 RCA1AKA101BT 100uF 10V 1
C113 F1J1C105A149 1uF 16V 1
C114 F1H1H104A913 0.1uF 50V 1
C115 F1H1H104A913 0.1uF 50V 1
C116 F1J1C105A149 1uF 16V 1
C117 F2A1A471B139 470uF 10V 1
C118 RCA1CKA220BT 22uF 16V 1
C119 RCA1AKA470BT 47uF 10V 1
C122 F1J1A106A024 10uF 10V 1
C123 F1J1C105A149 1uF 16V 1
C124 F1H1H221A004 220pF 50V 1
C125 F1H1H221A004 220pF 50V 1
C126 F1J1C105A149 1uF 16V 1
C127 F1J1C105A149 1uF 16V 1
C141 RCA1AKA470BT 47uF 10V 1
C142 RCA1AKA470BT 47uF 10V 1
C143 F2A0J221A030 220uF 6.3V 1
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
