11
VQT4E52

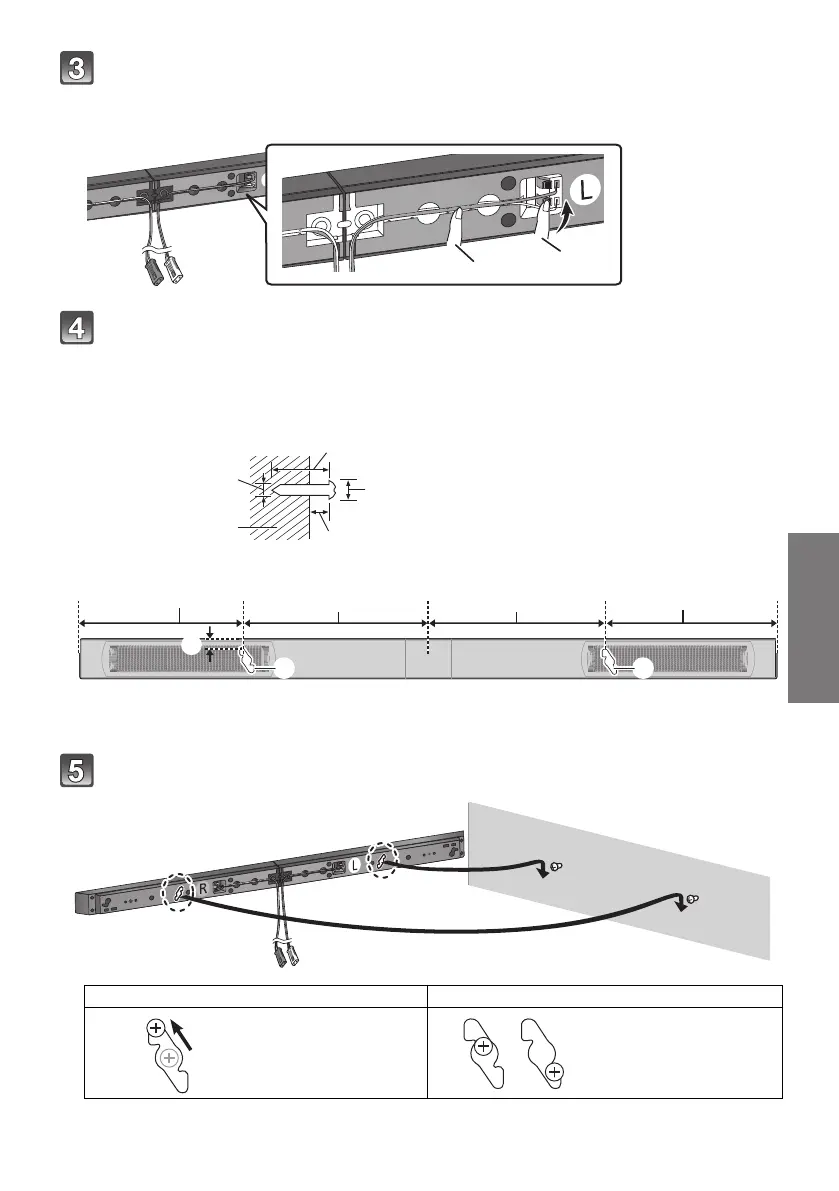

Connect the speaker cables.
≥ To make sure that the speaker cable is connected to the correct speaker, match the colour of the speaker connector with
the colour of the L/R indicator on the speaker label so as not to connect the speaker cable to the wrong speaker.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
Drive a screw (not supplied) into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm of space above and each side of the speaker to allow enough space for fitting the speaker.
≥ The position in the wall where the screw is to be attached as well as the screw should be capable of supporting over
33 kg.
≥ Keep the screws out of reach of children to prevent swallowing.
Fit the speaker securely onto the screw(s) with the hole(s).
1
Insert the wire
fully while
pushing the lever.
r: White
s: Blue line
2 Press into the
groove.
A At least 30 mm
B ‰4.0 mm
C ‰7.0 mm to ‰9.4 mm
D Wall or pillar
E 5.5 mm to 6.5 mm
Front view (semi-transparent image)
F 190.5 mm G 187 mm H 177 mm I 200.5 mm
J 12.5 mm K Wall mounting hole
DO DO NOT
≥ Move the speaker so
that the screw is in
this position.
≥ In this position, the
speaker will likely fall
if moved to the left or
right.
