13
VQT4E52

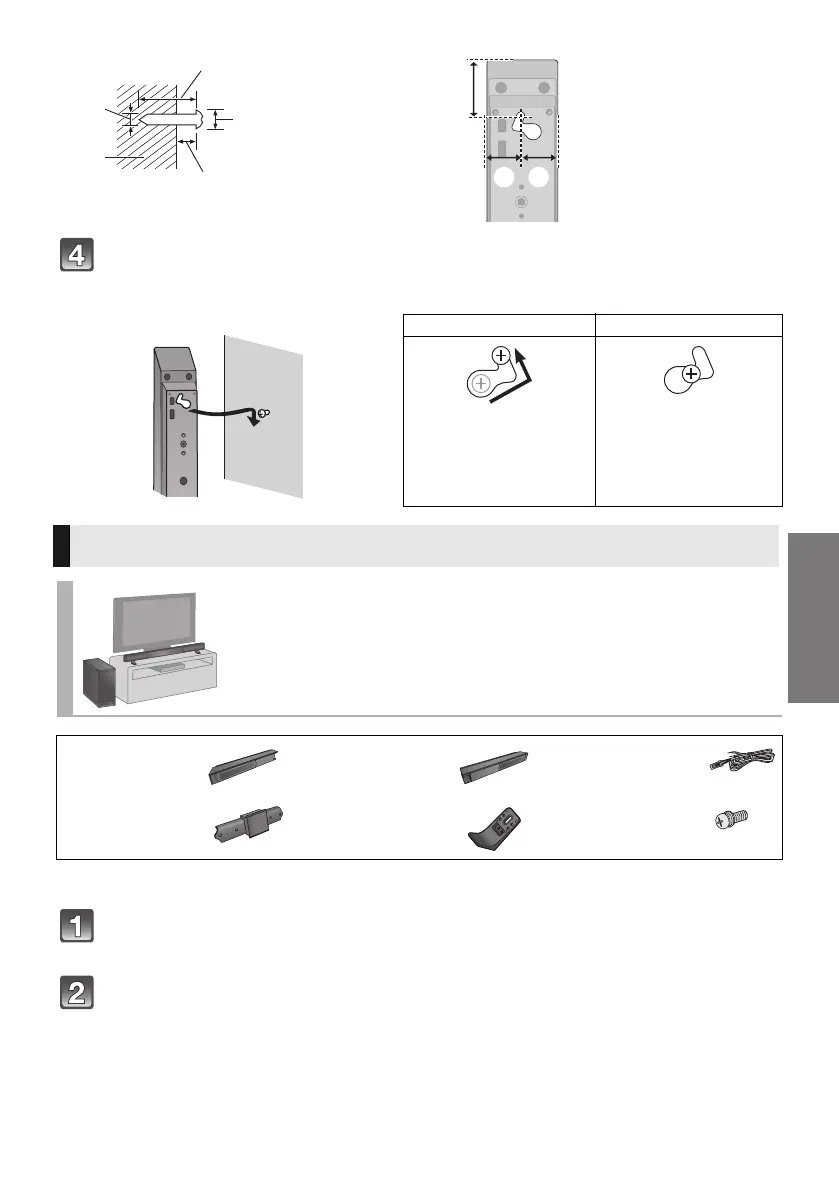

Fit the speaker(s) securely onto the screw(s) with the hole(s).
≥ Place the speaker that is connected with the speaker cable with a red connector on the observers’ right, and connect
with the speaker cable with a white connector on the observers’ left.
≥ For a safety measure to prevent the speakers from falling, refer to page 16.
≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers following steps 1 to 3 of “Place the speakers
horizontally” (> 10).
Attach the stands.
≥ Keep the screws out of reach of children to prevent swallowing.
(Continued on the next page)
A At least 30 mm
B ‰4.0 mm
C ‰7.0 mm to
‰9.4 mm
D Wall or pillar
E 5.5 mm to 6.5 mm
F 46.5 mm
G 24.5 mm
DO DO NOT
≥ Move the speaker so
that the screw is in
this position.
≥ In this position, the
speaker will likely fall
if moved to the left or
right.
When placing the speakers on a table
Place the speakers using the stands
∏ 1 Speaker (L) ∏ 1 Speaker (R) ∏ 2 Speaker cables
(L): WHITE
(R): RED
∏ 1 Speaker joint ∏ 2 Stands ∏ 6 Screws
HTB20EBEGGNGS~Body_mst.fm 13 ページ ２０１２年３月１日 木曜日 午前８時２９分
