16
VQT4E52
≥ Place the speaker that is connected with the speaker cable with a red connector on the observers’ right, and connect
with the speaker cable with a white connector on the observers’ left.
To prevent the speakers from falling, it is recommended, as an additional
protection measure, to attach the speakers to the wall or table with a fall
prevention cord (hereafter “cord”).
≥ Consultation with a qualified housing contractor concerning the appropriate procedure when attaching to a concrete wall or a
surface that may not have strong enough support is recommended
(
>
11
, 13)
. Improper attachment may result in damage to
the wall and speakers, and personal injury.
≥ Use a cord of less then ‰1.5 mm, which is capable of supporting over 10 kg.
≥ Keep the screws out of reach of children to prevent swallowing.
≥ Make sure that the slack of the cord is minimal.

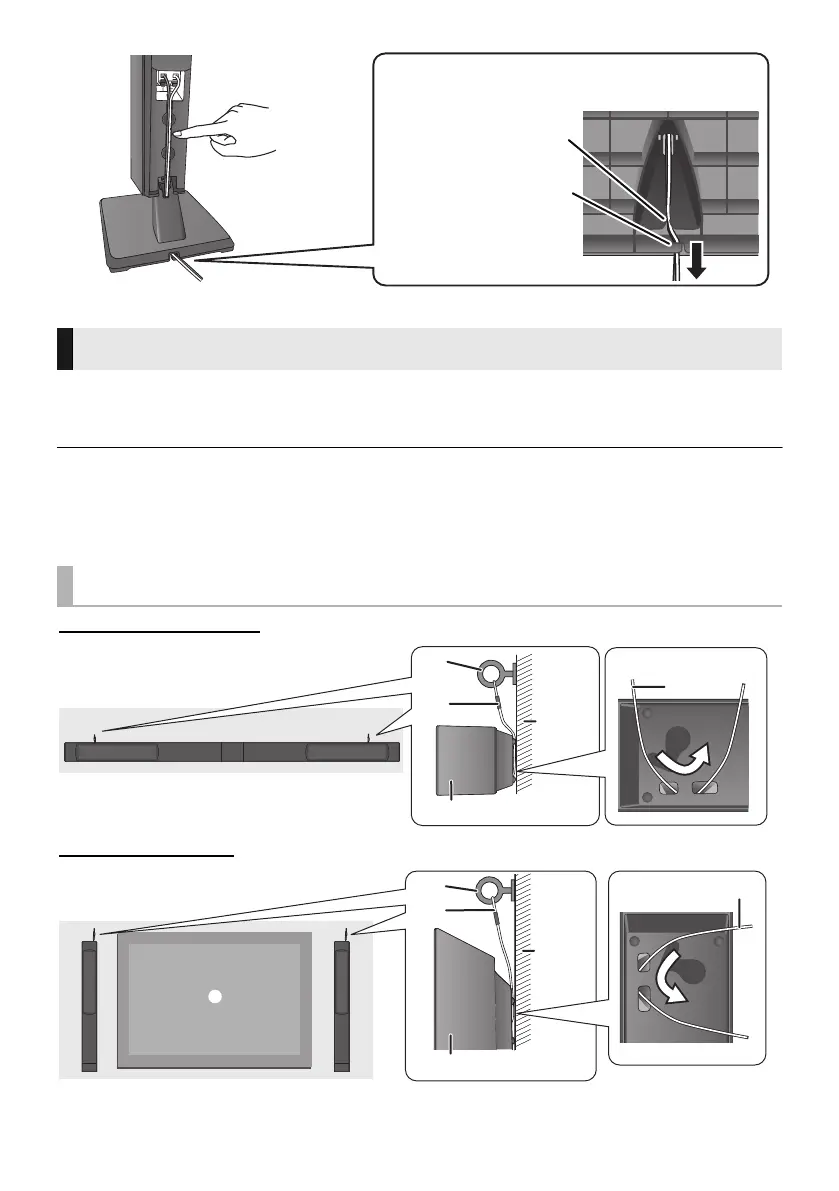

Speaker fall prevention measures
When placing the speakers on a wall
Horizontal placement
Vertical placement
A Cord (not supplied)
B Screw eye (not supplied)
C Wall
D TV
Press into the
groove.
Back of the speaker base
Pull the cable straight
along the line and slide
into the groove.
≥ Be sure to insert the cable
in under the projecting part.
A
C
C
A
B
A
C
C
A
B
D
SC-HTB20EBEGGNGS_VQT4E52.book 16 ページ ２０１２年２月２４日 金曜日 午後７時５１分
