15
VQT4E52
≥ For a safety measure to prevent the speakers from falling, refer to page 16.
≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers following step 1 of “Place the speakers
vertically” (> 12)
Assemble the speakers.
≥ To make sure that the speaker cable is connected to the correct speaker, match the colour of the speaker connector with
the colour of the L/R indicator on the speaker label so as not to connect the speaker cable to the wrong speaker.
≥ Be sure to insert the speaker cable through the threading hole as indicated in the illustration.
≥ Keep the screws out of reach of children to prevent swallowing.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
(Continued on the next page)

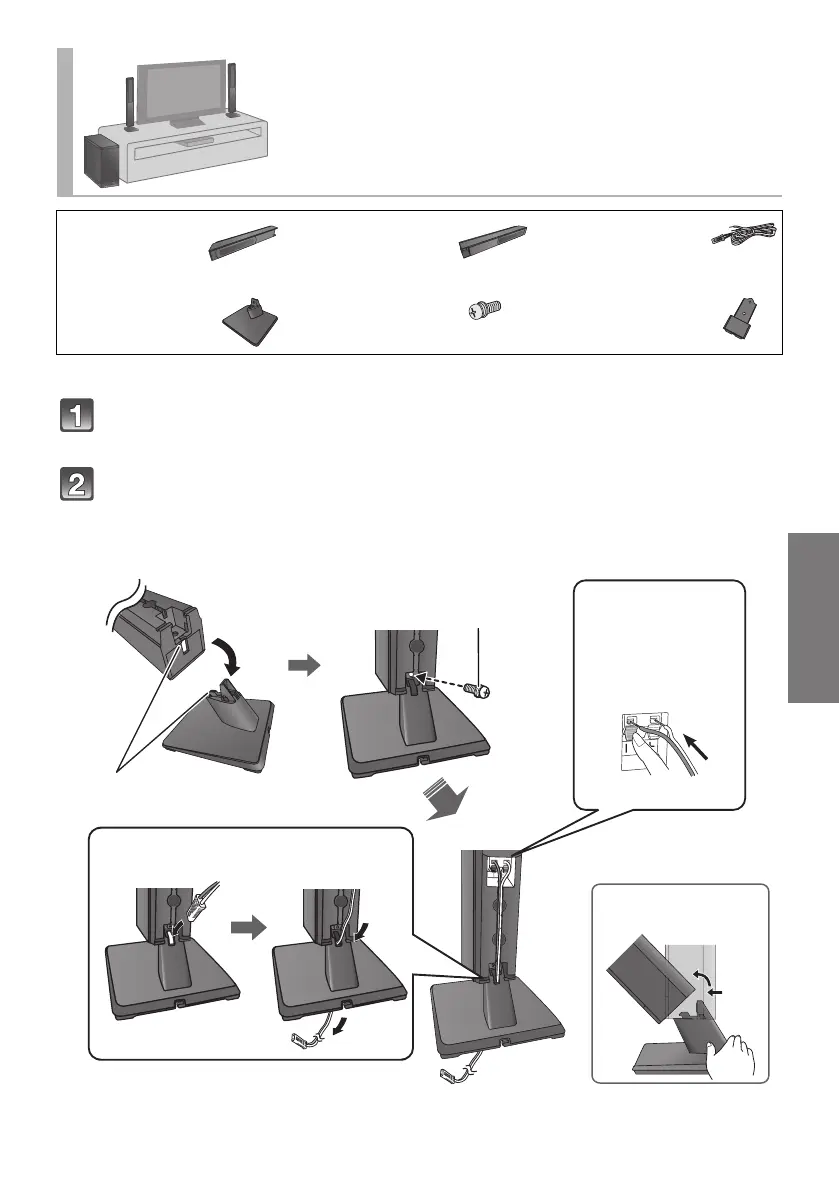

Place the speakers using the speaker
bases
∏ 1 Speaker (L) ∏ 1 Speaker (R) ∏ 2 Speaker
cables
(L): WHITE
(R): RED
∏ 2 Speaker
bases
∏ 6 Screws
∏ 2 Front
ornaments
2
2
1
Screw
≥ Tighten securely.
Align the projecting parts with the
holes on the speaker.
Insert the wire
fully while pushing
the lever.
r: White
s: Blue line
Push
Thread the speaker cable.
To detach the speaker
