Panasonic SC-HTB20 Operating Instructions

Getting started
19
VQT4E52

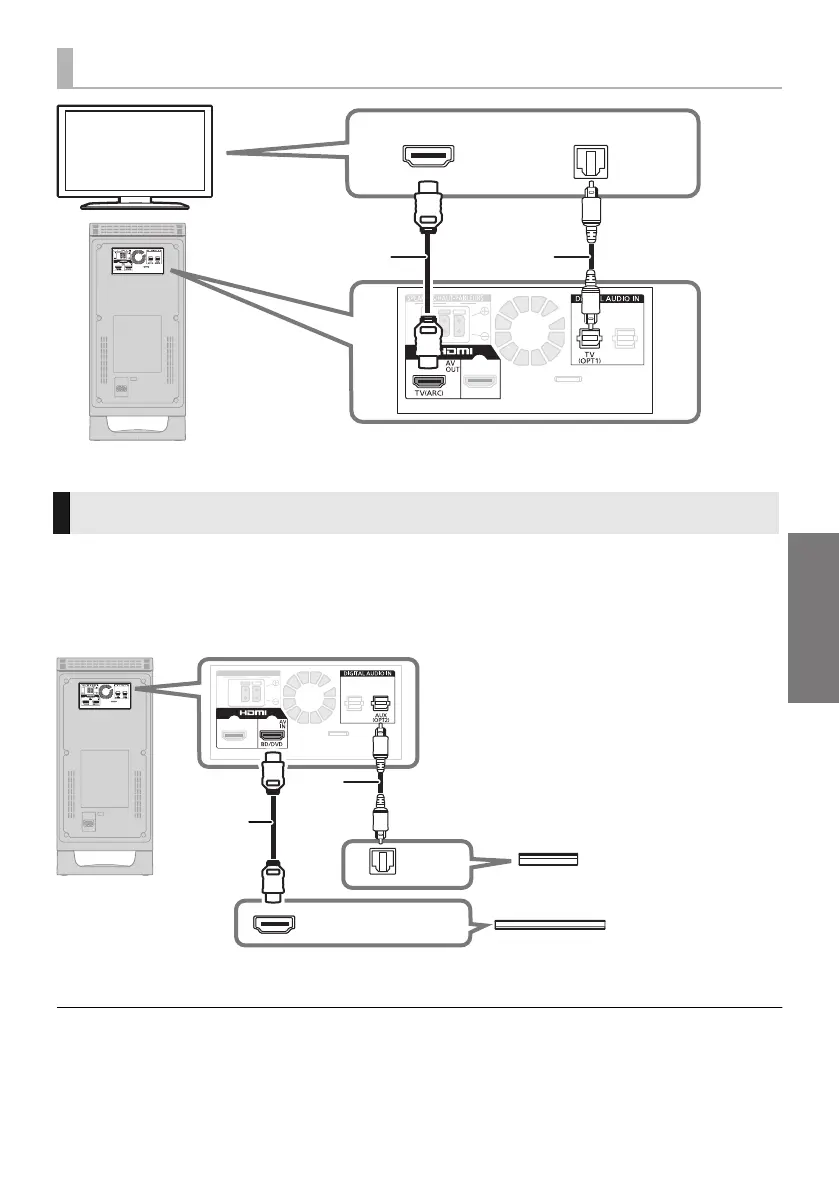

A HDMI cable (not supplied) B Optical digital audio cable (not supplied)
You can direct the audio signal from the connected Blu-ray Disc player, DVD player, Set Top Box, etc.
to this system.
≥Refer to the operating instructions of the set top box for the optimal video connection.
Preparation
≥ Connect this system to the TV. (> 18)
A HDMI cable (not supplied)
B Optical digital audio cable
(not supplied)
∫ HDMI standby pass-through
Even if this system is in standby mode, the audio and/or video signal from the device connected to the HDMI IN terminal
(BD/DVD) will be sent to the TV connected to the HDMI OUT terminal (ARC) (The sound will not be output from this system).
[B] Not labelled “HDMI (ARC)”
HDMI IN
OPTICAL OUT
AB
TV
Active subwoofer
Connection with other devices
OPTICAL
OUT
HDMI OUT
A
B
e.g., Set top box
e.g., Blu-ray Disc Player
Active subwoofer
SC-HTB20EBEGGNGS_VQT4E52.book 19 ページ ２０１２年２月２４日 金曜日 午後７時５１分

Panasonic SC-HTB20 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II
RMS rated power	240 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	160 mm
Soundbar speaker RMS power	130 W
Total Harmonic Distortion (THD)	10 %
Receiver included	No
Product color	Black
Recommended usage	Home theatre
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	755 x 58.5 x 49 mm
Subwoofer dimensions (WxDxH)	180 x 305 x 408 mm
HDMI in	1
Connectivity technology	Wired
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	52 W

Weight and Dimensions

Soundbar weight	1300 g
Subwoofer weight	5500 g
