Control reference guide

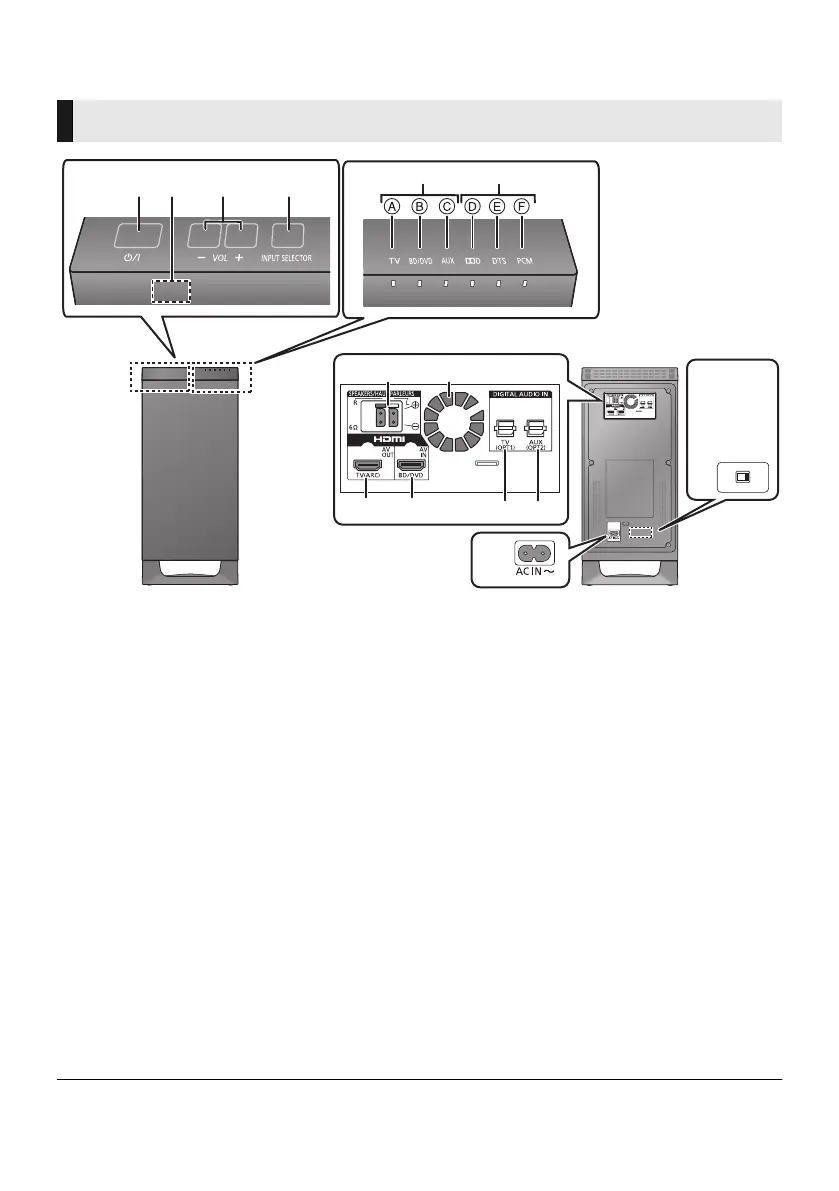

1 Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Remote control signal sensor (> 9)
3 Adjust the volume of the speakers
4 Select the input source
TV # BD/DVD # AUX
^----------------------------------}
5 Input selector indicators
§
A TV indicator
Lights green when the TV is the audio
source
B BD/DVD indicator
Lights amber when the device connected
to the BD/DVD terminal is the audio
source
C AUX indicator
Lights amber when the device connected
to the AUX terminal is the audio source
6 Audio format indicators
§
D Dolby
R
Digital indicator
Lights when Dolby
R
Digital is the current
audio format
E DTS indicator
Lights when DTS is the current audio
format
F PCM indicator
Lights when PCM (2ch, Multi-channel) is
the current audio format
7 Speaker terminals (> 20)
8 Cooling fan
9 HDMI OUT terminal (ARC compatible)
(> 18, 19)
10 HDMI IN terminal (BD/DVD) (> 19)
11 OPTICAL DIGITAL AUDIO IN terminal (TV)
(> 19)
12 OPTICAL DIGITAL AUDIO IN terminal (AUX)
(> 19)
13 AC IN terminal (> 20)
14 AC Voltage selector (> 20)
§ The indicators will also blink in various conditions (> 28)
Active subwoofer
VOLT ADJ
110-127V• •220-240V
314
56
2
7 8
9 10
11 12
13
14
Active subwoofer (front)
Active subwoofer (rear)
(For South
East Asia and
the MIddle
East)
