18
VQT4E52
Step 3 Connections
≥ Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are complete.
∫ HDMI
The HDMI connection supports VIERA Link “HDAVI Control” (> 24) when used with a compatible Panasonic TV.
≥ Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilised. It is recommended that you use
Panasonic’s HDMI cable.
Recommended part number (High Speed HDMI cable):
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.
∫ 3D compatibility
Compatible with FULL HD 3D TV and Blu-ray Disc Player
≥ This system can pass through the 3D video signal from a 3D compatible Blu-ray Disc Player to a FULL HD 3D TV.
Verify if the TV’s HDMI terminal is labelled “HDMI (ARC)”.
∫ What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the active subwoofer to the terminal labelled “HDMI (ARC)”, the optical digital audio cable that is usually required in
order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.
Make the connection.
A HDMI cable (not supplied)
Basic connection
The connection will differ when the TV’s HDMI terminal is labelled “HDMI (ARC)” and when it is not.
Labelled “HDMI (ARC)”: Connection ]A[
Not labelled “HDMI (ARC)”: Connection ]B[ (> 19)

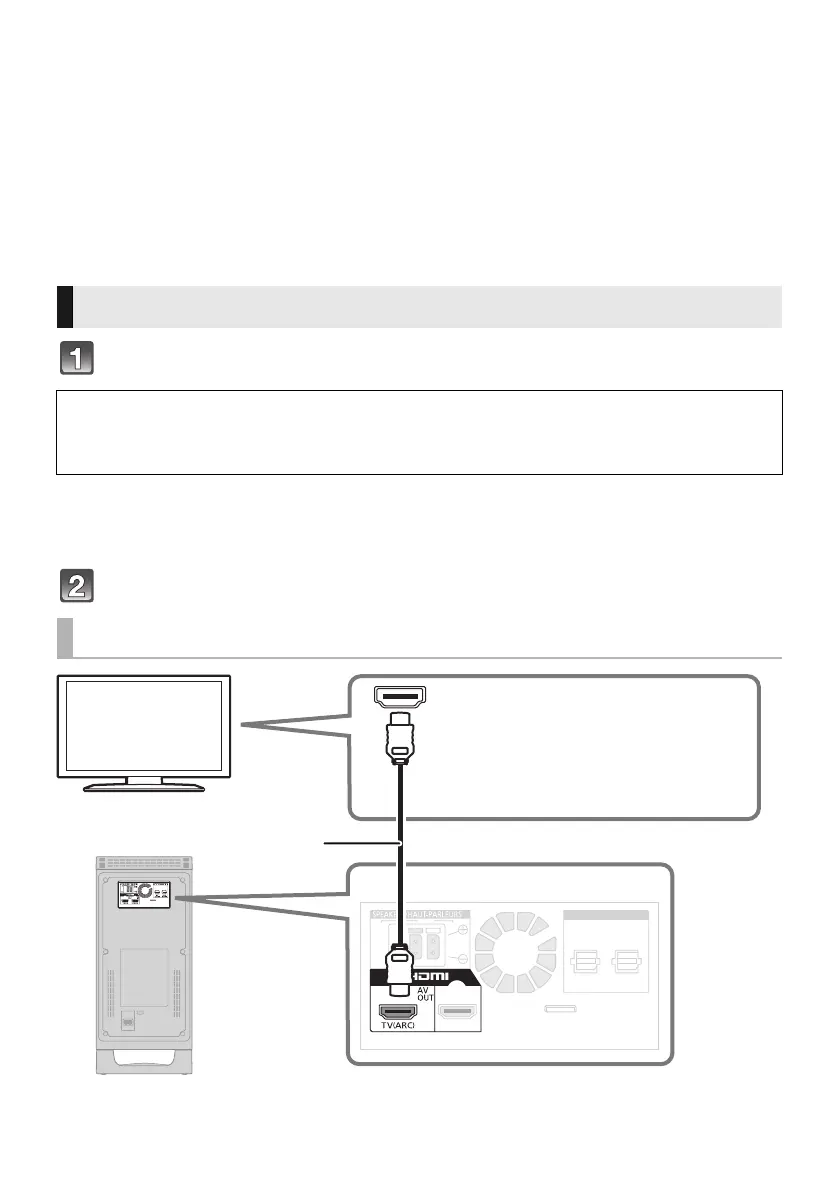

[A] Labelled “HDMI (ARC)”
HDMI (ARC)
A
TV
Active
subwoofer
Be sure to connect to the TV’s ARC
compatible terminal. (Refer to the
operating instructions for the TV.)
