Panasonic SC-HTB20 Operating Instructions

14
VQT4E52
≥ For a safety measure to prevent the speakers from falling, refer to page 16.
≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers following steps 1 to 3 of “Place the speakers
horizontally” (> 10).

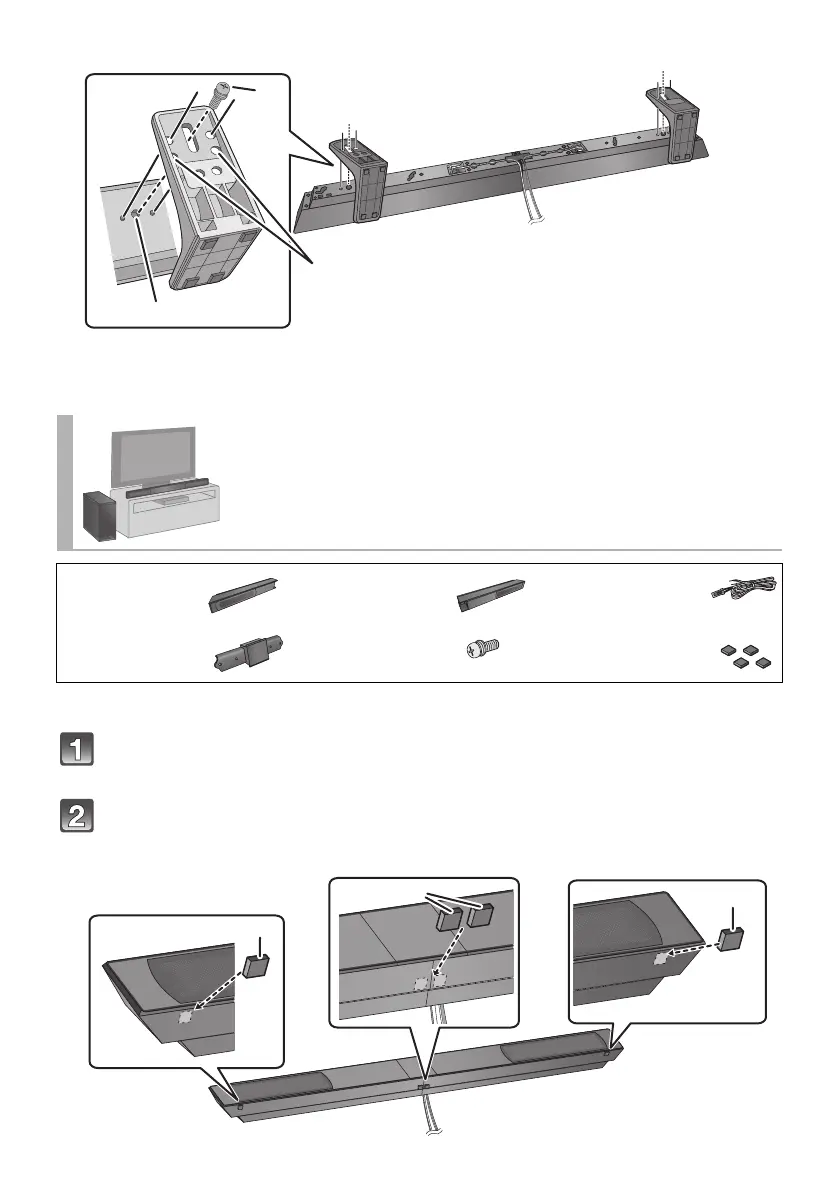

Attach the speaker feet to the bottom of the speakers.
≥ Keep the speaker feet out of reach of children to prevent swallowing.
A Screw (supplied)
B Screw hole
Place the speakers using the speaker feet
∏ 1 Speaker (L) ∏ 1 Speaker (R) ∏ 2 Speaker cables
(L): WHITE
(R): RED
∏ 1 Speaker joint ∏ 4 Screws ∏ 4 Speaker feet


Align the holes with the projecting parts on the speaker.
≥ Do not use these holes for alignment as the screw will not fit
into the screw hole.



A Speaker foot
SC-HTB20EBEGGNGS_VQT4E52.book 14 ページ ２０１２年２月２４日 金曜日 午後７時５１分

Panasonic SC-HTB20 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II
RMS rated power	240 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	160 mm
Soundbar speaker RMS power	130 W
Total Harmonic Distortion (THD)	10 %
Receiver included	No
Product color	Black
Recommended usage	Home theatre
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	755 x 58.5 x 49 mm
Subwoofer dimensions (WxDxH)	180 x 305 x 408 mm
HDMI in	1
Connectivity technology	Wired
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	52 W

Weight and Dimensions

Soundbar weight	1300 g
Subwoofer weight	5500 g
