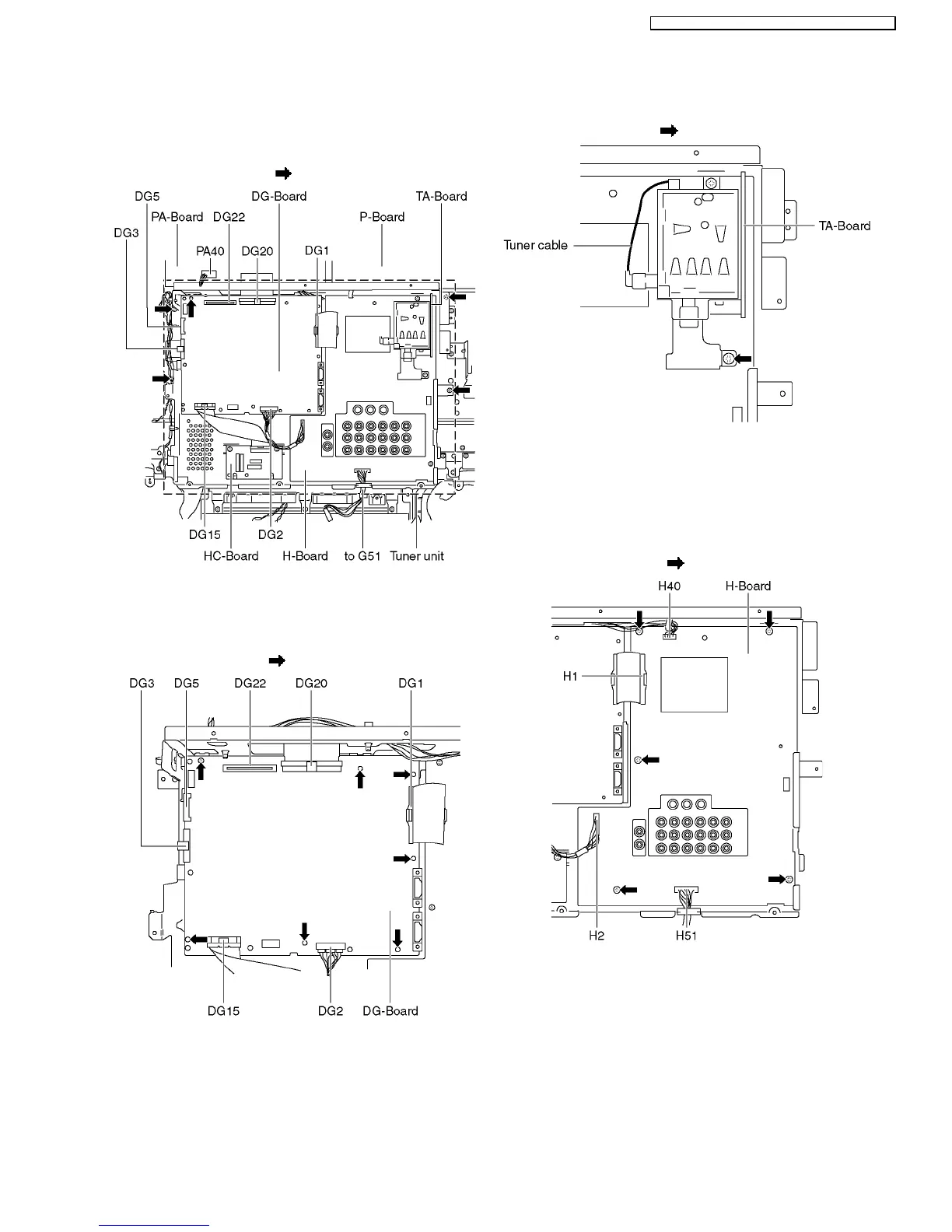

6.6. Remove the tuner unit
1. Unlock the cable clampers to free the cable.
2. Disconnect the couplers (DG5, G51 and PA40).
3. Disconnect the flexible cables (DG3 and PA20).
4. Remove the screws (×4
) remove the tuner unit.
6.7. Remove the DG-Board
1. Disconnect the coupler (DG2).
2. Disconnect the flexible cables (DG1, DG15 and DG20).
3. Remove the screw (×7
) remove the DG-Board.
6.8. Remove the TA-Board
1. Disconnect the tuner cable.
2. Remove the screw (×1
) and remove the TA-Board.
6.9. Remove the H-Board
1. Remove the TA-Board.
2. Unlock the cable clampers to free the cable.
3. Disconnect the couplers (H2, H40 and H51).
4. Disconnect the flexible cable (H1).
5. Remove the screws (×5
) and remove the H-Board.
