Panasonic TH-42PV60H

S1 to S41 (One tuner)

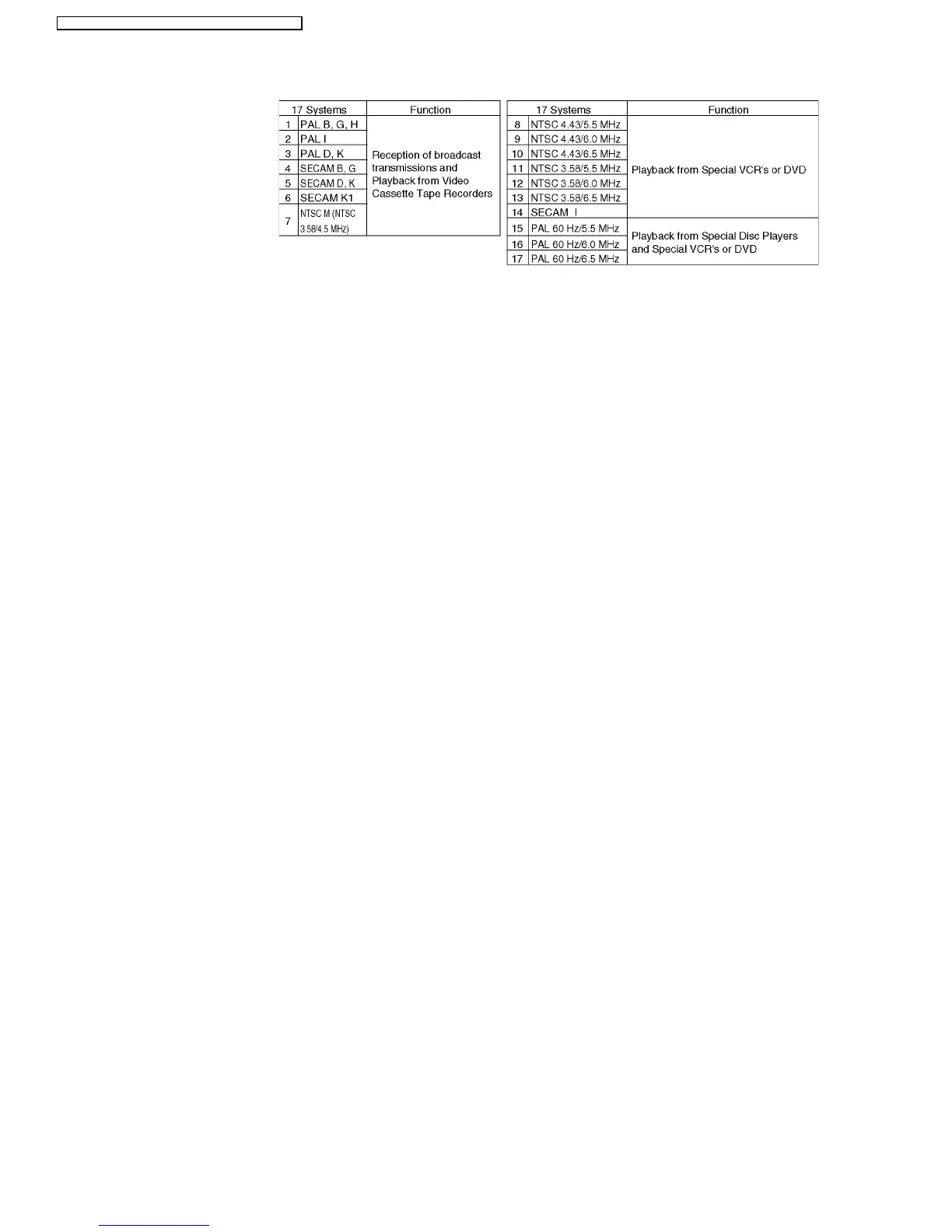

Receiving Systems /
Band name (PV60H/M/MT)
Receiving Channels
(Regular TV) (PV60H/M/MT)
VHF BAND UHF BAND CATV
2-12(PAL/SECAM B,K1) 21-69(PAL,G,H,I/SECAM G,K,K1) S1-S20(OSCAR)
0-12(PAL B AUST.) 28-69(PAL B AUST.) 1-125(USA CATV)
1-9(PAL B N.Z.) 13-57(PAL D,K) C13-C49(JAPAN)
1-12(PAL/SECAM D) 13-62(NTSC M Japan) S21-S41(HYPER)
1-12(NTSC M Japan) 14-69(NTSC M USA) Z1-Z37(CHINA)
2-13(NTSC M USA) 5A,9A(AUST.)
Aerial - Rear VHF / UHF
Operating Conditions Temperature : 0°C-40°C
Humidity : 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1
Input
AUDIO L-R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 W )
SVIDEO Mini DIN 4-pin Y: 1.0 V[p-p] (75 W) C: 0.286 V[p-p] (75 W)
AV2
Input
AUDIO L-R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 W )
COMPONENT Y
P
B
/C
B
,P
R
/C
R
1.0 V[p-p] (including synchronization)
±0.35 V[p-p]
AV3
Input
AUDIO L-R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 W )
COMPONENT Y
P
B
/C
B
,P
R
/C
R
1.0 V[p-p] (including synchronization)
±0.35 V[p-p]
AV4
Input
AUDIO L-R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 W )
SVIDEO Mini DIN 4-pin Y: 1.0 V[p-p] (75 W) C: 0.286 V[p-p] (75 W)
Others HDMI1/2 Input TYPE A Connectors
PC Input HIGH-DENSITY D-SUB 15PIN R,G,B/0.7 V[p-p] (75 W)
HD,VD/TTL Level 2.0-5.0 V[p-p] (high impedance)
Audio Input RCA PIN Type × 2 0.5 V[rms]
Monitor AUDIO L-R RCA PIN Type × 2 0.5 V[rms] (high impedance)
Output VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 W )
Dimensions ( W × H × D )
1,020 mm × 705 mm × 95 mm
Weight
30.0 kg Net
Notes:
· Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.
