5 Service Hint

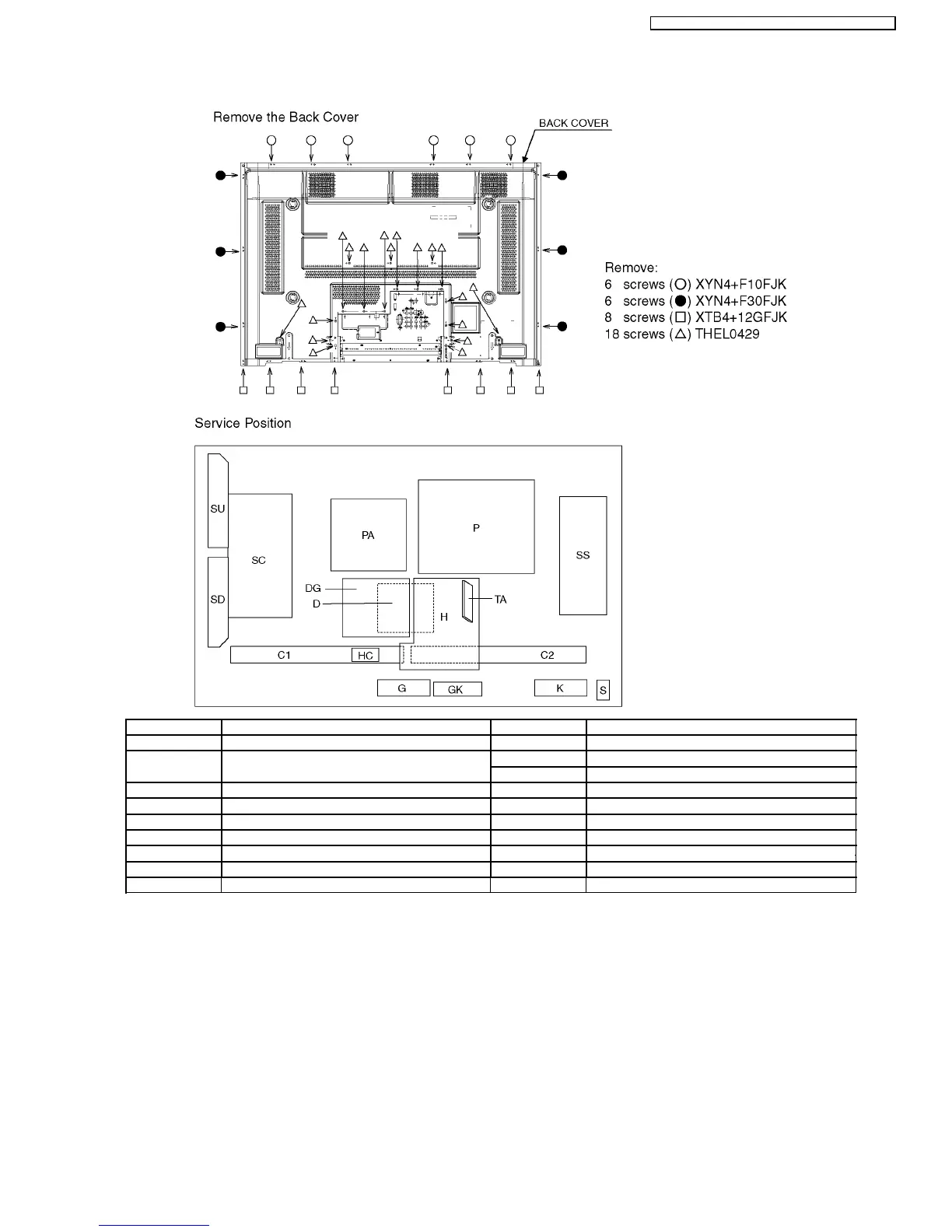

Board Name Function Board Name Function
P Power Supply C1 Data Driver (Lower Right)
PA DC-DC Converter, Speaker out, Audio AMP,
Fan Control
C2 Data Driver (Lower Left)
SC Scan Drive
H AV Terminal, AV Switch, MSP SU Scan out (Upper)
TA Tuner SD Scan out (Lower)
DG Digital Signal Processor, Micom, HDMI Interface SS Sustain Drive
D Format Converter, Plasma AI, Sub-Field Processor K Remote receiver, Power LED
HC Jig Connection S Power Switch
G Front Terminal
GK Key Switch
9
TH-42PV60A / TH-42PV60H / TH-42PV60M / TH-42PV60MT
