Connecting Equipment to the TV
Front Panel Connections

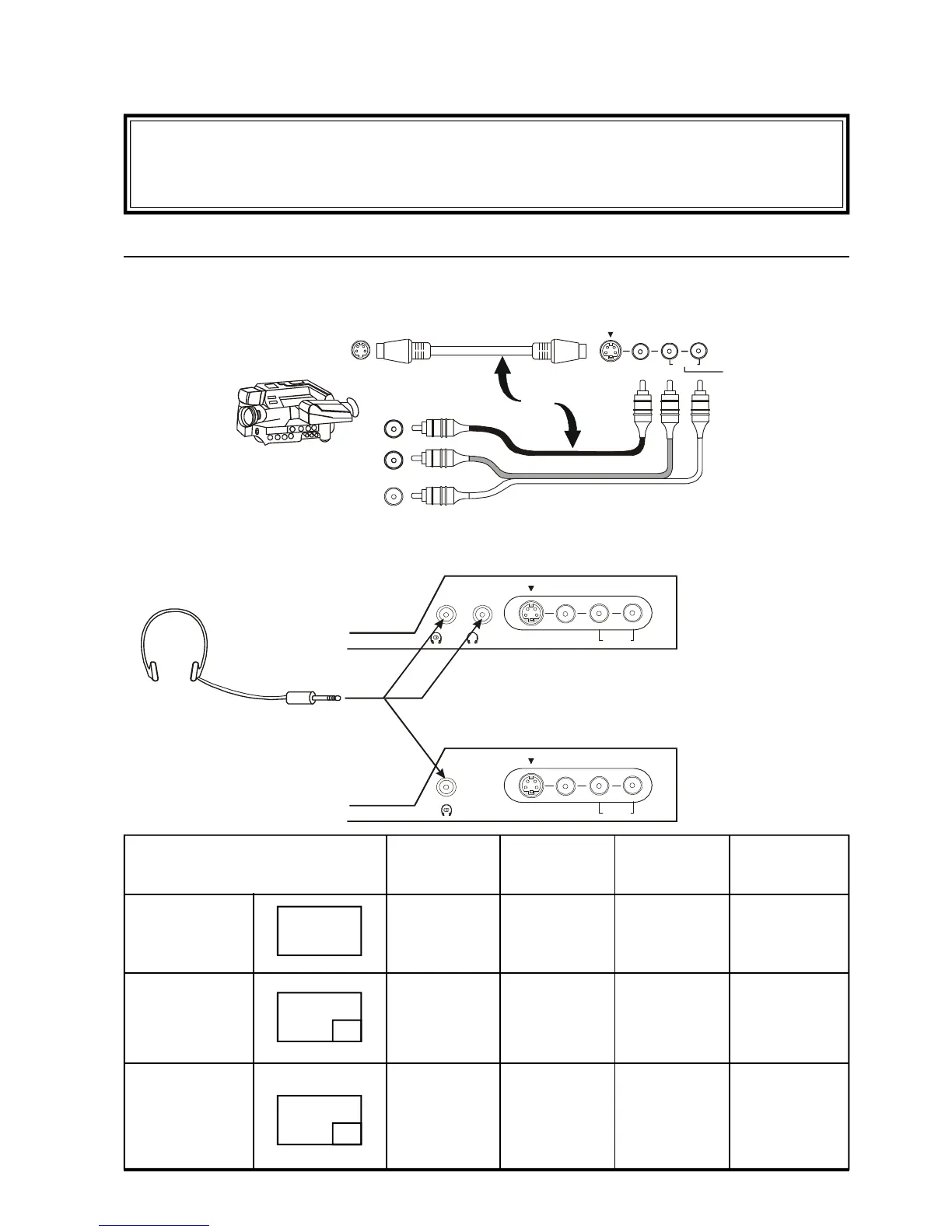

The front input terminals allow quick and easy access for computer games, video cameras and other
equipment which is not usually permanently connected.
AV Equipment
Headphones
L/MONO R
AUDIO
S-VIDEO VIDEO
AV3
IN
OR
Screen Condition Speaker Main Sub Monitor
Sound Headphones Headphones Output
Single picture/ A A A A
Teletext (Stereo) (Stereo) (Stereo) (Stereo)
Picture in Picture A A B A
(Stereo) (Stereo) (Mono) (Stereo)
Picture in Picture B B A B
CHANGE (Stereo) (Stereo) (Mono) (Stereo)
A
A
B
B
A
*** NOTE ***
Headphones and connecting cables for Antennas, VCRs, LDs DVDs, Amplifiers and
Speakers etc. are not supplied with this television.
L/MONO R
S-VIDEO VIDEO
AV3
IN
AUDIOMain Sub.
L/MONO R
S-VIDEO VIDEO
AV3
IN
AUDIO
TX-76PW10A
TX-76PW05A
3.5mm
Stereo Plug
Headphones
(Not Supplied)
