Installing the Wall Mounting Plates
1. Ensure that the wall is strong enough to support the elite Panaboard.
Rated strength: greater than 1324 N (135 kgf)

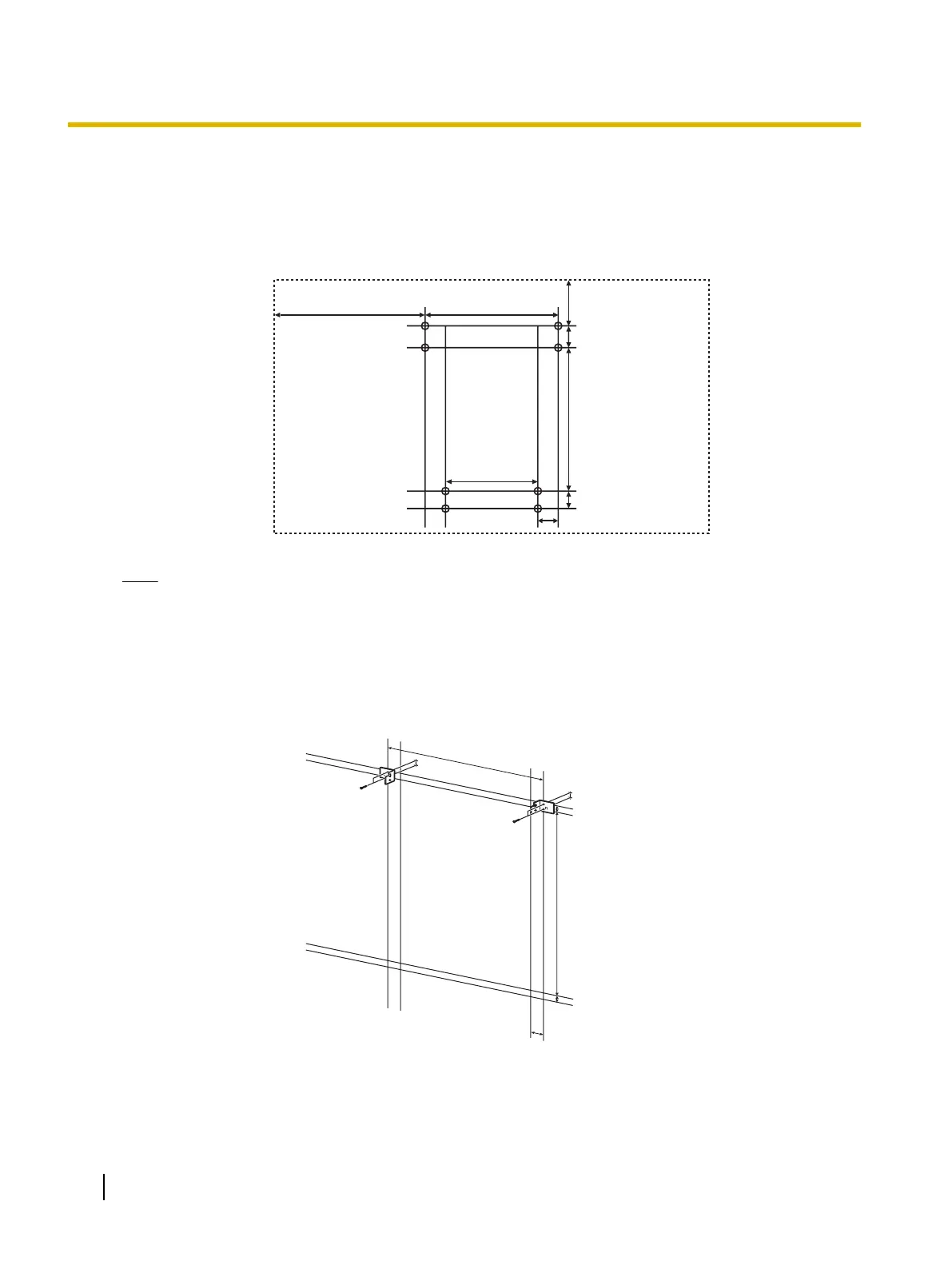

2. Using the measuring tape and level, mark the 8 locations to insert the screws.
813 mm
(2 ft. 8
1
/
8
in.)
40 mm (1
5
/
8
in.)
982 mm
(3 ft. 2
3
/
4
in.)
30 mm (1
1
/
8
in.)
44 mm (1
3
/
4
in.)
222.5 mm (8
3
/
4
in.)
469.5 mm
(1 ft. 6
1
/
2
in.)
725 mm
(2 ft. 4
5
/
8
in.)
Note
• The dotted line in the illustration represents the outer edge of the elite Panaboard.
3. Drill 8 holes for the wall mounting plates.
• Drill holes that are appropriate for the screws you are using.
4. Install the wall mounting plates using the 4 screws.
• 2 screws are used for each wall mounting plate.
The remaining 4 screws are used after installing the elite Panaboard on the wall.
40 mm (1
5
/
8
in.)
982 mm (3 ft. 2
3
/
4
in.)
30 mm (1
1
/
8
in.)
44 mm
(1
3
/
4
in.)
813 mm
(2 ft. 8
1
/
8
in.)
• Screws (8 count) are not included with the elite Panaboard. Please purchase screws with a size of M6,
appropriate for your type of wall.
