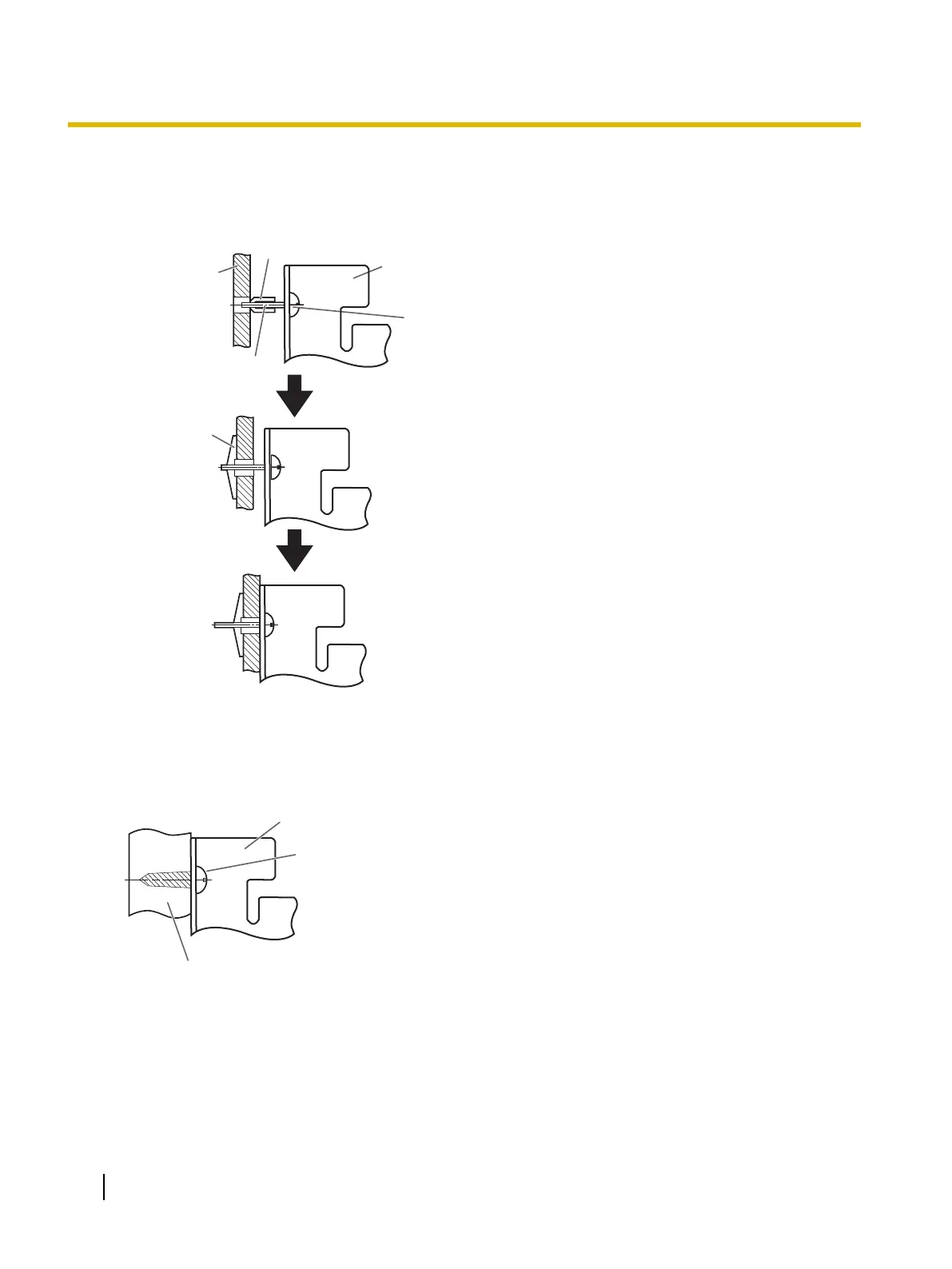

Plasterboard walls
Split-wing toggles (not included) are needed.
Plasterboard
Split-wing toggle
Wall mounting
plate
Bolt
Arms
Arms
Insert the bolt through the hole in the wall
mounting plate and into the hole in the wall
so that the arms of the split-wing toggle are
horizontal.
For the correct hole size, refer to the instruc-
tions for the particular split-wing toggles
used.
After the arms expand, pull the wall mount-
ing plate out until the arms of the split-wing
toggle grip firmly into the wall.
Tighten the bolt until the wall mounting plate
is securely fixed into the wall.
Wooden walls
Wood screws (not included) are needed.
Wall mounting plate
Wood screw
Wooden wall
Insert the wood screw through the hole in the
wall mounting plate and tighten until the wall
mounting plate is securely fixed to the wall.
For the correct hole size, refer to the instruc-
tions for the particular wood screws used.
