Configure the settings relating to images [Image]
The settings relating to JPEG and H.264 images such as the settings of image quality, etc. can be configured on
this page.
The"Image"pagehas2tabs;the[JPEG/H.264]tabandthe[Image/Privacy]tab.

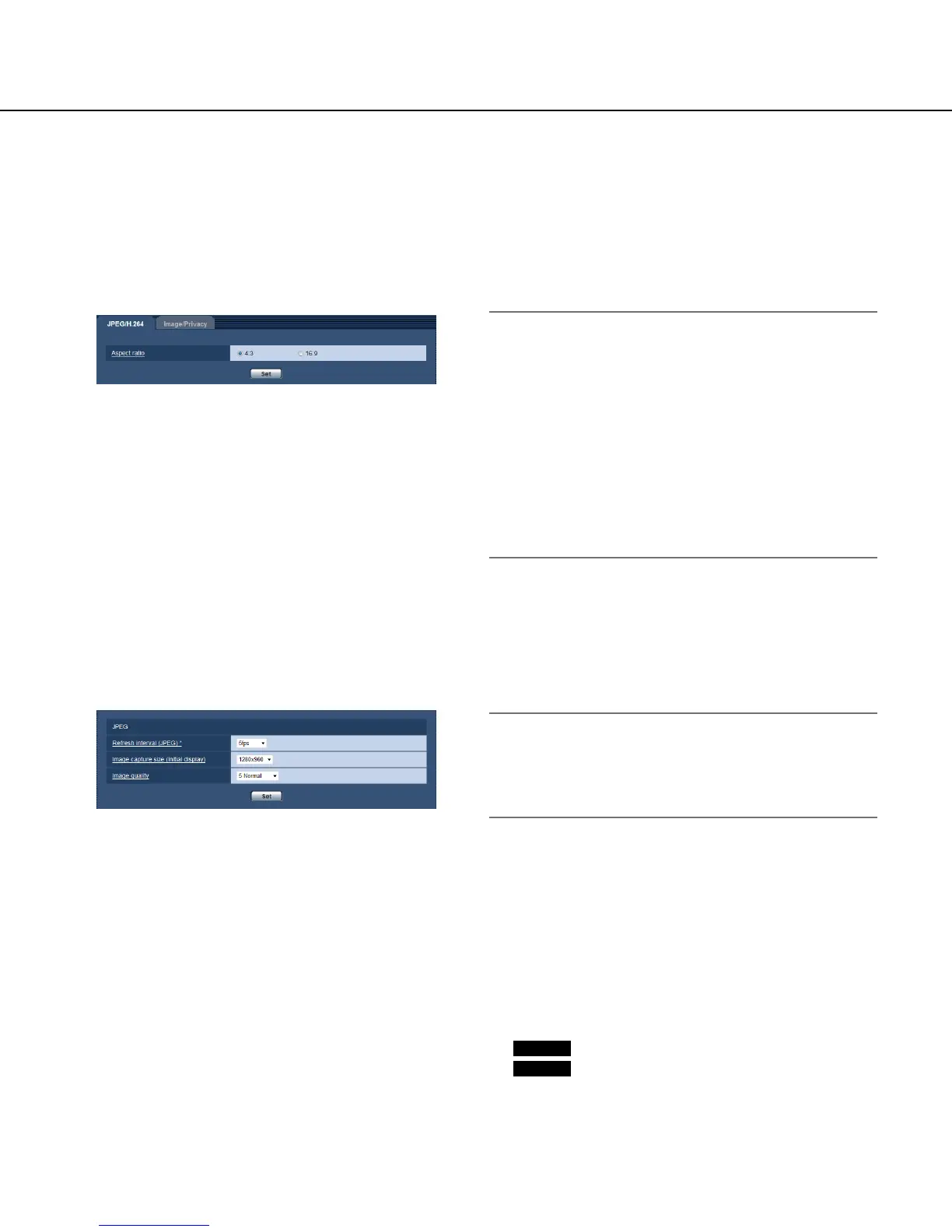

Configure the settings relating to the aspect ratio [JPEG/H.264]
Click the [JPEG/H.24] tab on the "Image" page. (☞Pages13and14:Howtodisplay/operatethesetupmenu)
[Aspect ratio]
Select"4:3"or"16:9"fortheaspectratio.
Default:4:3
Configure the settings relating to JPEG images [JPEG/H.264]
Click the [JPEG/H.24] tab on the "Image" page. (☞Pages13and14:Howtodisplay/operatethesetupmenu)
■ JPEG
Configure the settings such as "Refresh interval
(JPEG)*", "Image capture size" and "Image quality" on
this section. Refer to page 20 for further information
about the settings relating to H.264 images.
[Refresh interval (JPEG)*]
Select an interval to refresh the displayed JPEG image
from the following.
0.1fps/ 0.2fps/ 0.33fps/ 0.5fps/ 1fps/ 2fps/ 3fps/ 5fps/
6fps*/ 10fps*/ 12fps* (PAL model)/ 15fps*/ 30fps*
Default: 5fps
Note:
 • When"On"isselectedfor"H.264transmission",the
refresh interval may be longer than the set value
when any value with an asterisk (*) on the right is
selected.
[Image capture size (Initial display)]
Select the image capture size to display the JPEG
image on the "Live" page for the first time.
 • When"4:3"isselectedfor"Aspectratio"
QVGA/ VGA/ 1280 x 960*
1
 • When"16:9"isselectedfor"Aspectratio"
320×180/ 640×360/ 1280 ×720*
1
Default: 1280x960*
1
VGA*
2
*1
SP105
*2
SP102
Note:
 • i-PROSeriesdoesnotsupportaspectratioof
"16:9",ifnotspecified(asofOctober2010).
 • Imageadjustmentfunctionsareactivatedforthe
angleofviewintheaspectratioof4:3evenwhile
"16:9"isbeingselectedfor"Aspectratio".Area
masking under the backlight compensation (BLC)
function can be set only when the aspect ratio is
"4:3".
  Iftheaspectratioischangedto"16:9"aftersetting
of the backlight compensation function, the setting
of area masking is maintained.
