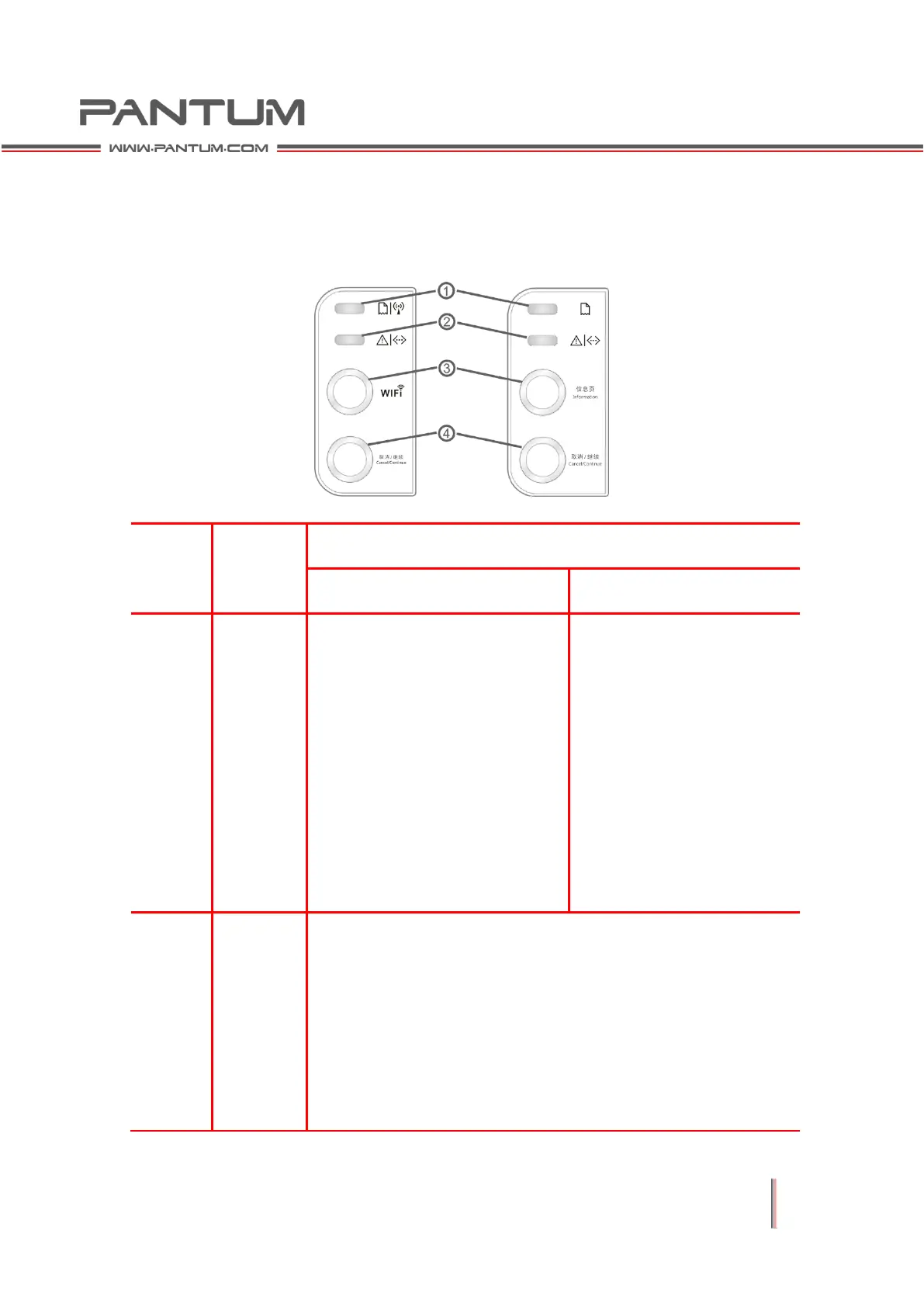

1.1.3 Overview of the Control Panel
The printer control panel contains two buttons and two dual color LED indicators,
as shown below: the control panel of the model with WIFI on the left, and the
control panel of the model without WIFI on the right.
Serial
Number
Name
Functions
The Printer with WIFI
The Printer without WIFI
1
LED
Indicator
1
Red and green dual color LED
indicator for paper error and
WIFI signal:
Red indicator stays on: A paper
jam error occurred
Red indicator flashes: The
printer is out of paper or a feed
jam occurred
Green indicator stays on: WIFI
is successfully connected
Green indicator flashes:
Searching for WIFI signal
Red LED indicator for paper
error status
Red indicator stays on: A
paper jam error occurred
Red indicator flashes: The
printer is out of paper or a
feed jam occurred
2
LED
Indicator
2
Red and green dual color LED indicator for data and toner
cartridge:
Red: The red indicator stays on when a critical error occurs,
including engine related errors.
Orange: The orange indicator indicates the status of the toner
cartridge, including cartridge related errors or the warning of
low toner level.
Green: The green indicator indicates a normal status,
including Printing, Warming up, Sleep Mode, Ready, Cancel

Pantum P2200 Series Specifications

General

Print Technology	Monochrome Laser
Max Print Resolution	1200 x 1200 dpi
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Printer Language	GDI
Processor Speed	600 MHz
Memory	64 MB
Connectivity	USB 2.0
Media Weight	60-163 g/m²
Compatible Operating Systems	Windows, Linux, Mac OS
Dimensions	337 x 220 x 178 mm
Weight	4.75 kg
First Print Out Time	Less than 7.8 seconds
Recommended Monthly Page Volume	250 to 2, 000 pages
Media Types	Plain, Cardstock, Label, Envelope, Thin
Media Sizes	A4, A5, A6, B5, Legal, Letter, Executive, DL envelope, C5 envelope, Postcard
Power Consumption	Average: 370W
Print Speed	Up to 20 ppm
