4.3.10 Clutch Gear

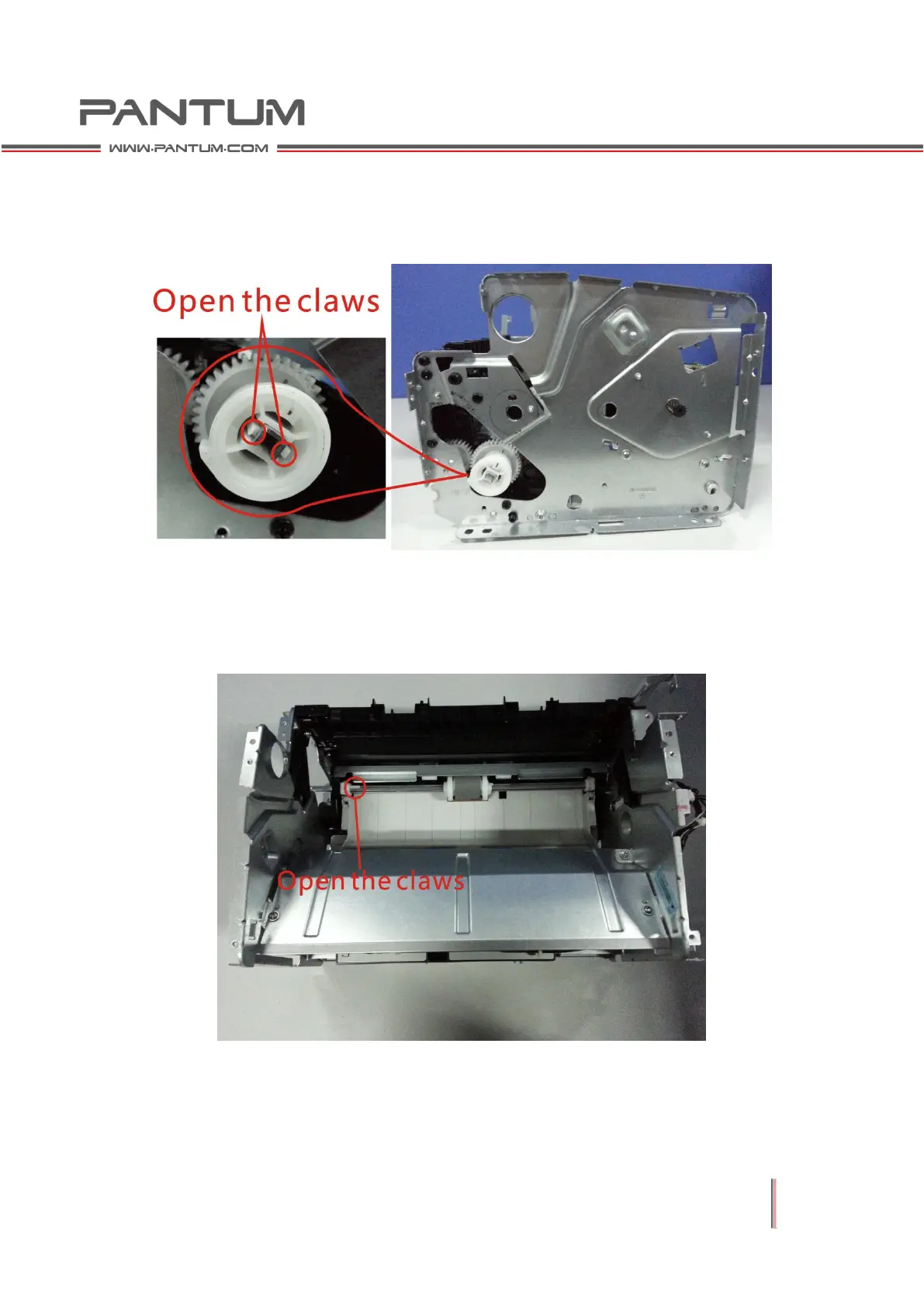

Open the clutch gear jaws as shown below, and remove the clutch gear by
pulling it out.
4.3.11 Pickup Roller
1. Open the jaw on the cam of the paper feed shaft, and remove the paper
feed shaft assembly by pulling it in the direction of the pickup roller.
