3.1 Components Summary

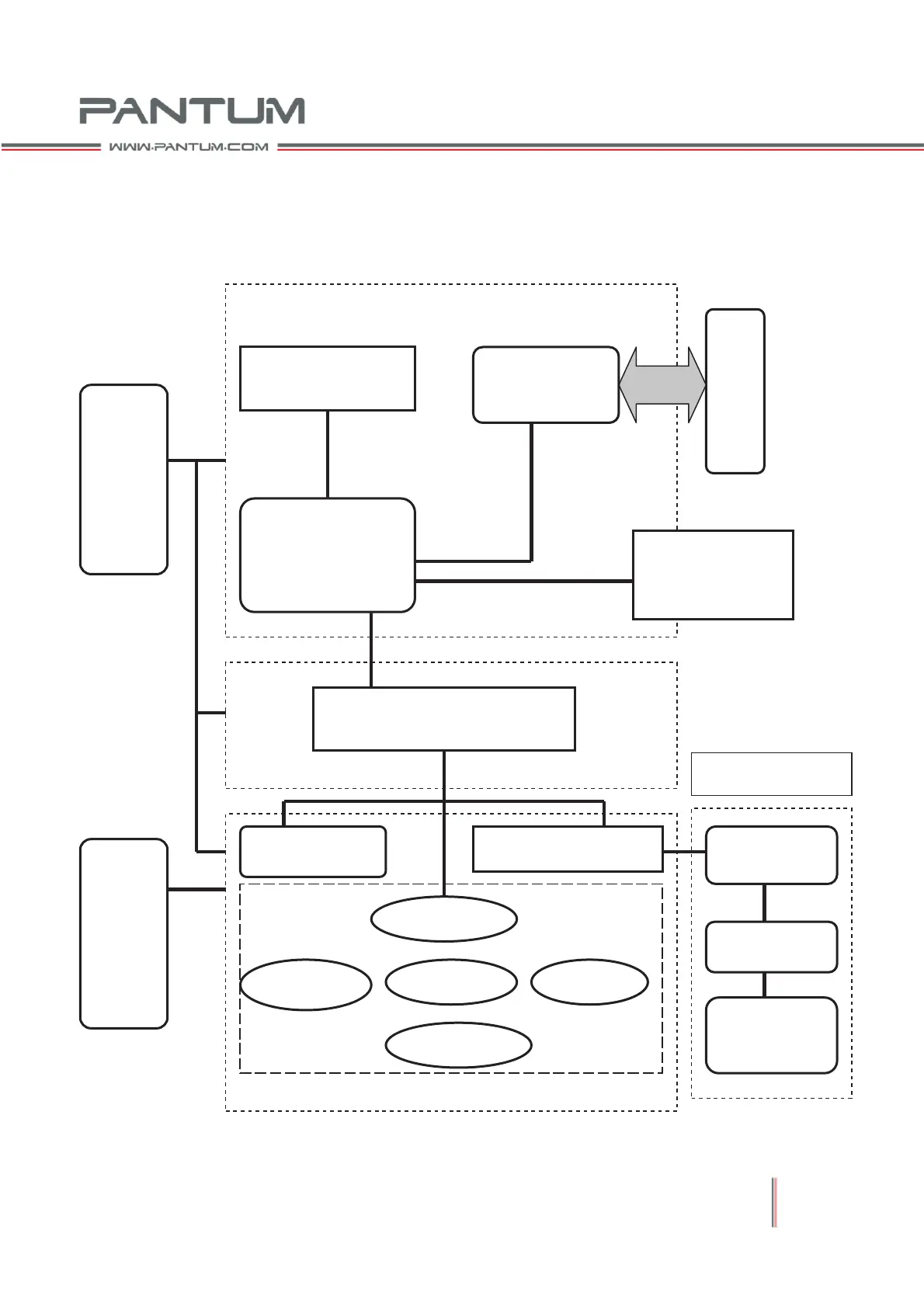

The following diagram shows the summary of the composition.
Low-voltage power supply module
High
-voltage
power
supply
module
RAM module
Data control module
External devices
Operating module
(Control Panel)
Engine control module
Imaging system
Laser unit
Motor driver module
Paper Tray
Output
module
Fixing unit
Transfer
Charging
Cleaning
Exposure
Develeping
USB/NET/WiFi
Interface module
Paper feed system
