Pantum P2200 Series Maintenance Manual

3–4

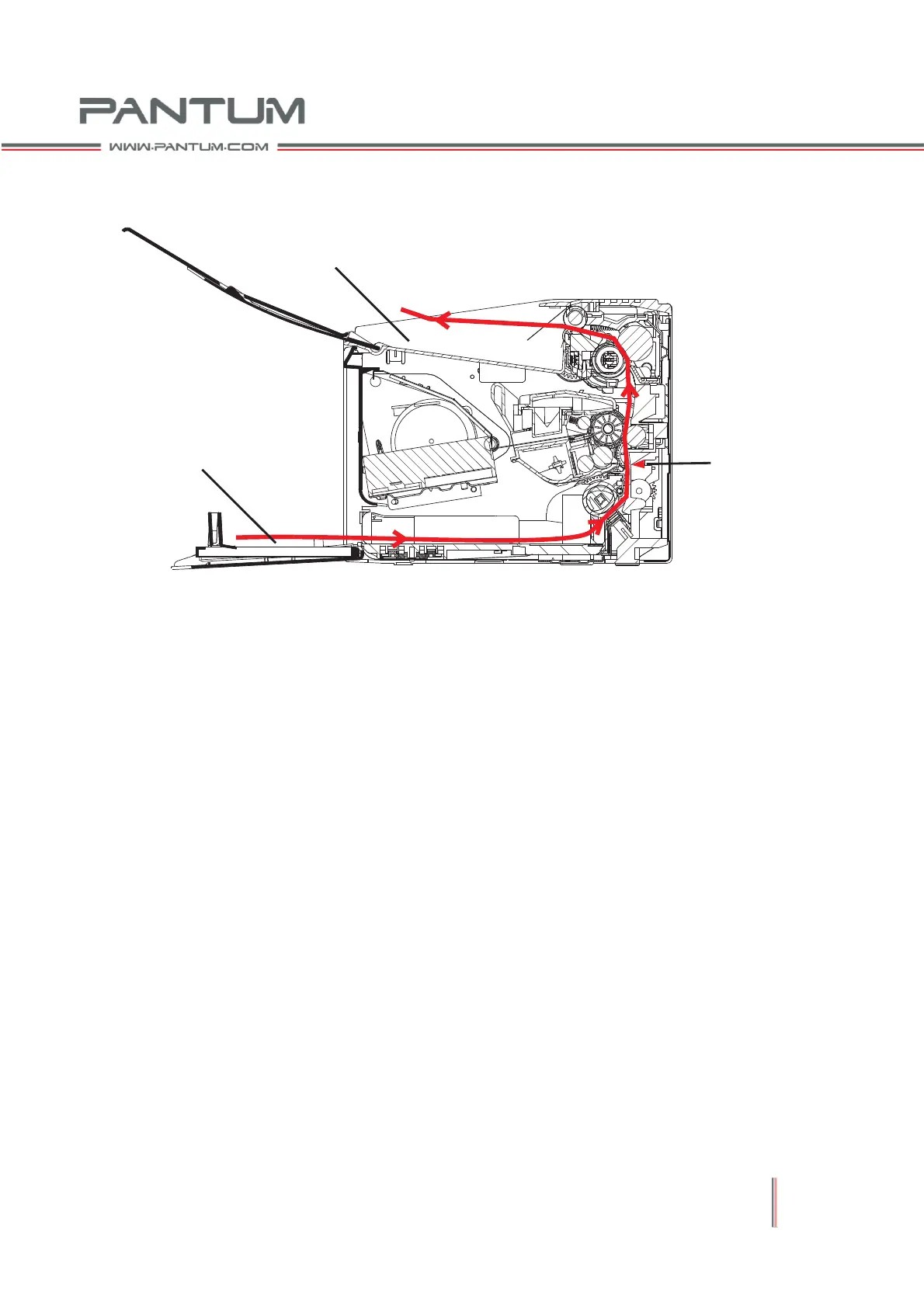

3.3 Feeder Circuit Diagram
This printer uses the "C" type of feeder circuit.
The feeder system consists of the following components:
1. Pickup Roller:
Feeds the paper to the print area through friction.
2. Electromagnet:
Works with the clutch gear to control the movement of the pickup roller.
3. Clutch Gear:
Works with the electromagnet to control the movement of the pickup roller.
4. Separator Component:
Feeds individual sheets through friction.
5. Top of the Page Sensor
Detects whether the paper arrives at the print area within the specified time
range.
6. Damper
Supports the paper before it arrives at the pickup roller and separator.
Output Tray
Feeder tray
Feed Sensor

Pantum P2200 Series Specifications

General

Print Technology	Monochrome Laser
Max Print Resolution	1200 x 1200 dpi
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Printer Language	GDI
Processor Speed	600 MHz
Memory	64 MB
Connectivity	USB 2.0
Media Weight	60-163 g/m²
Compatible Operating Systems	Windows, Linux, Mac OS
Dimensions	337 x 220 x 178 mm
Weight	4.75 kg
First Print Out Time	Less than 7.8 seconds
Recommended Monthly Page Volume	250 to 2, 000 pages
Media Types	Plain, Cardstock, Label, Envelope, Thin
Media Sizes	A4, A5, A6, B5, Legal, Letter, Executive, DL envelope, C5 envelope, Postcard
Power Consumption	Average: 370W
Print Speed	Up to 20 ppm
