Pantum P2200 Series Maintenance Manual

3–7

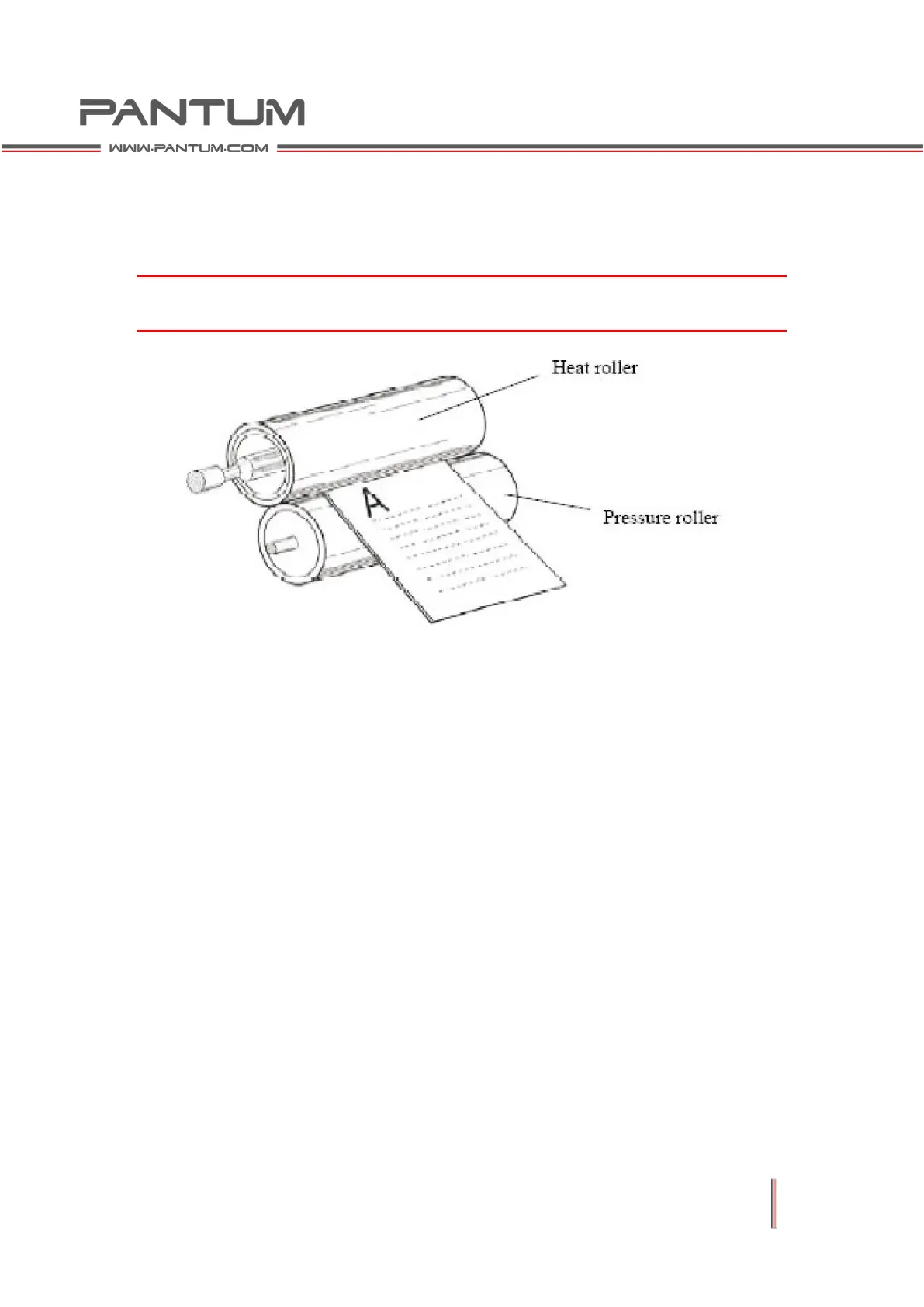

3.4.5 Fusing
When the paper moves onto the heating roller, the toner is melted at a specific
temperature. The pressure poller (PR) then presses the toner into the paper
fibers, curing it to the paper.
Note: If the fusing temperature is too high or too low, toner fusing results will be
affected.
3.4.6 Cleaning
As the toner on the surface of the OPC is not completely transferred to the paper, it
must then be cleaned by a blade before the next round of the imaging process.

Pantum P2200 Series Specifications

General

Print Technology	Monochrome Laser
Max Print Resolution	1200 x 1200 dpi
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Printer Language	GDI
Processor Speed	600 MHz
Memory	64 MB
Connectivity	USB 2.0
Media Weight	60-163 g/m²
Compatible Operating Systems	Windows, Linux, Mac OS
Dimensions	337 x 220 x 178 mm
Weight	4.75 kg
First Print Out Time	Less than 7.8 seconds
Recommended Monthly Page Volume	250 to 2, 000 pages
Media Types	Plain, Cardstock, Label, Envelope, Thin
Media Sizes	A4, A5, A6, B5, Legal, Letter, Executive, DL envelope, C5 envelope, Postcard
Power Consumption	Average: 370W
Print Speed	Up to 20 ppm
