Spectra LED Keypads 3

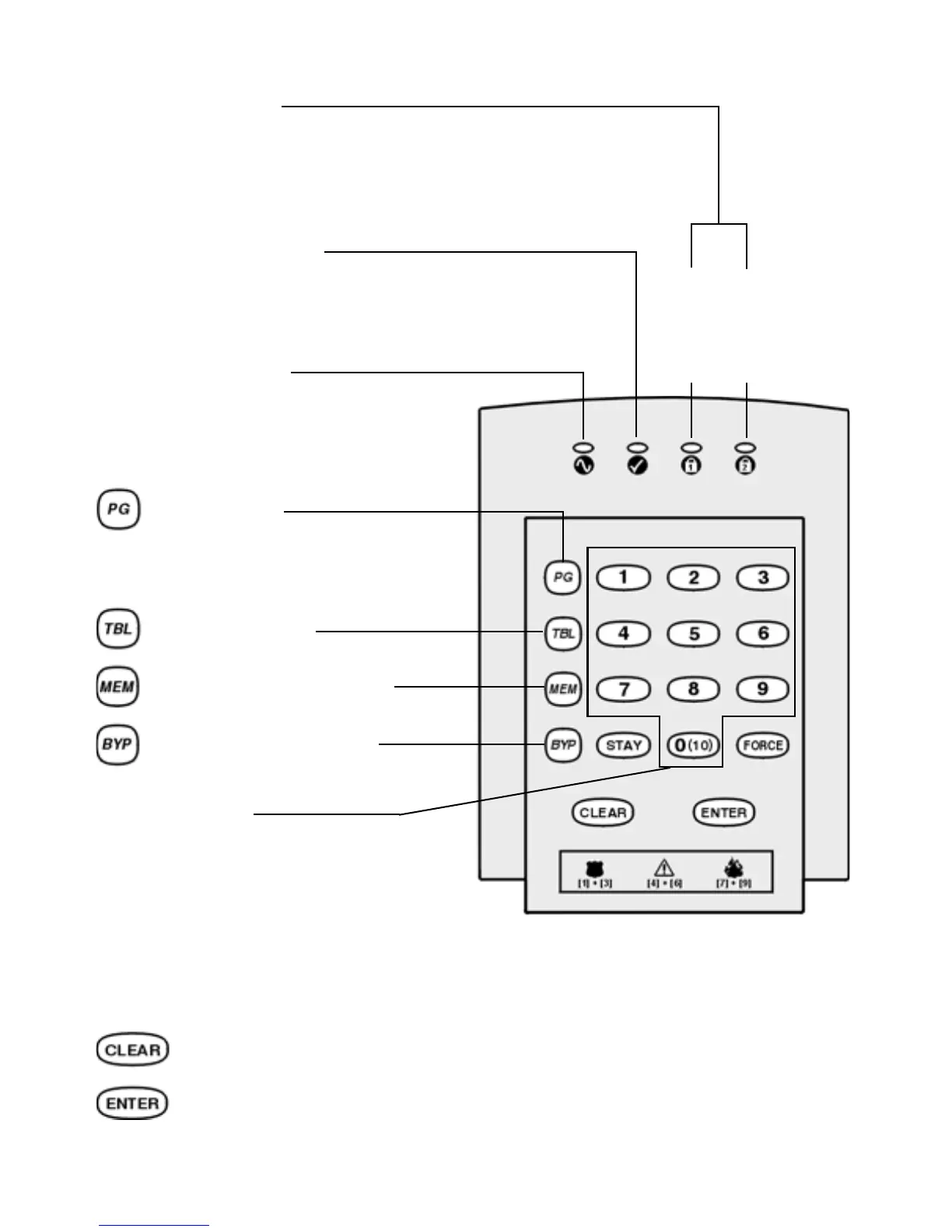

Figure 1: Overview of the 1686V LED Keypad
Bypass Programming
Alarm Memory Display
Trouble Display
PGM Button:
Press and hold for 3 seconds
to activate a PGM (i.e. garage
door)
Zone Display:
Buttons [1] to [10] correspond to
zones 1 to 10 respectively. When
the buttons are illuminated, the
zones are open.
To re-enter data, exit the current mode or cancel an action.
To save and exit.
1686V LED Keypad
AC LED (orange):
ON = AC power present
OFF = Power failure
READY LED (green):
ON = Zones are closed
OFF = Zone(s) opened or armed
FLASHING = Exit Delay
ARM LEDs (red):
ON = Partition Regular or Forced armed
OFF = Partition disarmed
FLASHING = Partition Stay or Instant armed
FAST FLASHING = Partition in alarm
Partition 1
Partition 2
To Next Page
