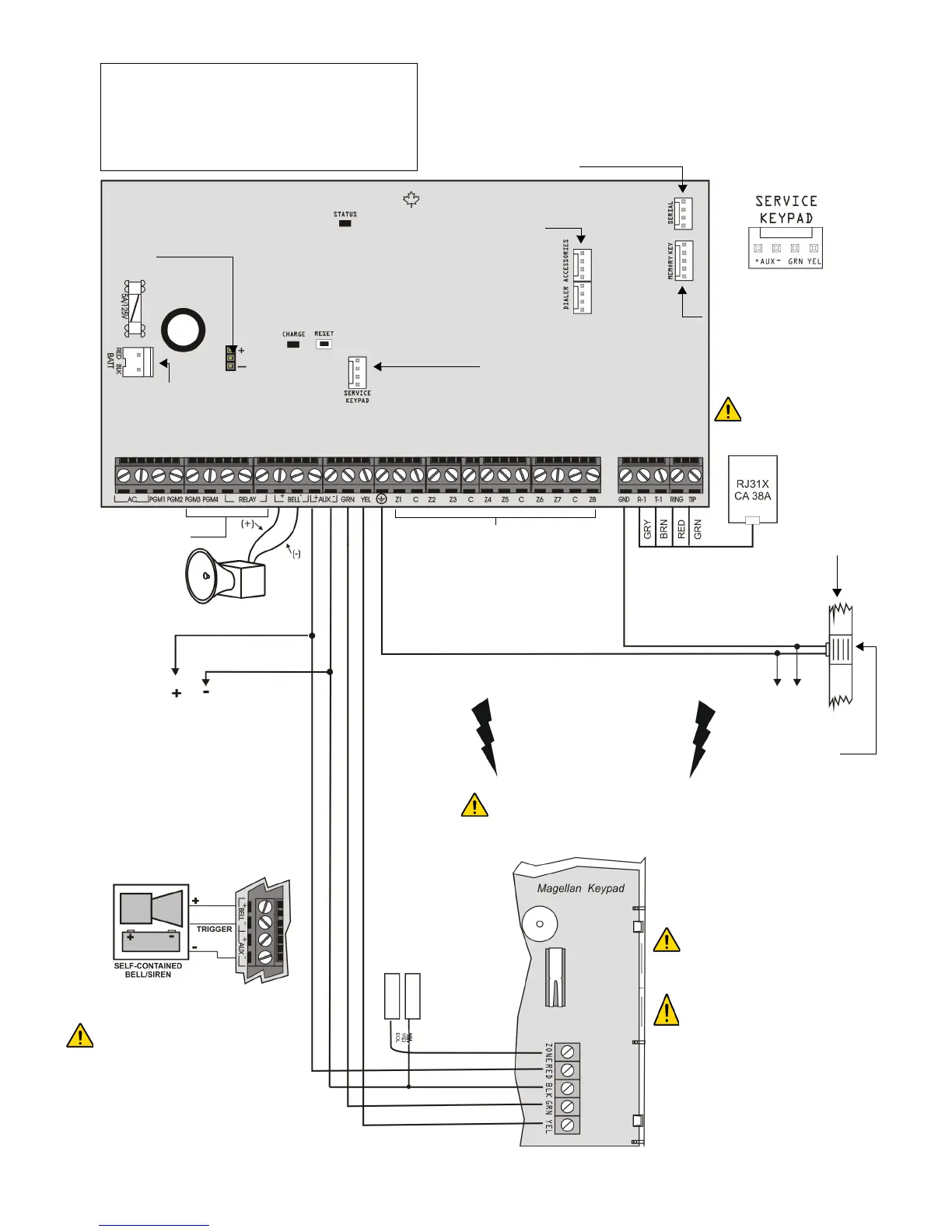

Charge LED:
Charging and battery test LED
Status LED:
• Flash once every second = Normal
• Flashes ON 1 second and OFF 1 second = Any trouble
• Always ON = Panel is using phone line
• Fast flash 6 seconds after power up = Installer lock enabled
Four pin connector can
be used for quick
installation of a SP6000
keypad.
Used for In-Field Firmware
upgrade through a 307USB
Direct Connect Interface. See
Connecting to WinLoad on
page 59 for details.
Paradox Memory Key
(PMC-4, PMC5)
Refer to AC Power
& Backup Battery
Connections on
page 2.
The "
BELL" output will
shutdown if the current
exceeds 3A.
AUX Power
Refer to transformer requirements on page 2 for
Aux. Power Output. To connect additional wiring to
auxiliary power, use the red (+) and black (-) keypad
connectors. Auxiliary power will shut down if current
exceeds 1.1A. If the auxiliary output is overloaded
and is shut down, you must disconnect all loads
from the output for at least 10 seconds before
reconnecting any load back to the auxiliary output.
This equipment must be installed and
maintained by qualified service
personnel only.
For UL and C-UL warnings, refer to the
UL and C-UL Warnings section at the
back of the Reference & Installation
Manual.
The sum of the current drawn
from the BELL and AUX must be
limited to 1.3A (40VA transformer
strongly recommended).
Exceeding this limit will overload
the panel power supply and lead
to complete system shutdown.
Connection for Self-Contained Bell/Siren
To provide maximum lightning
protection we strongly recommend
having separate earth connections
for the dialer and zone ground
terminals.
Max. amount of keypads = 15 keypads
Max. current = 700 mA
Max. distance of keypad from panel = 76m (250 feet)
Max. total run of wire = 230m (750 feet)
Disconnect telephone
line before servicing.
To metallic
enclosure
Ground
clamp
AWG#14 single
conductor solid
copper wire
Cold water pipe
grounding
For the keypad’s zone
configurations, refer to the
Installer Quick Menu. If
EOL is enabled: see
section [706] option [2].
Also refer to Keypad Zone
Connections on page 12.
Refer to
Single Zone
Inputs
on page 12
PGM Trigger: This
jumper allows you to
choose whether the solid
state relay PGMs are
grounded (-), or give out
12V (+).
Press and hold the
RESET button for five
seconds. The STATUS
LED will start flashing.
Within 2 seconds of
this flashing, press the
reset switch again. The
panel will reset to
default and restart.
When using an SP6000 panel in
conjunction with an RTX3, all K32/K32+
K32LCD/K32LCD+ and K10V/H keypads
must be versions 2.0 or higher.
EBUS and Dialer used for
VDMP3 plug-in voice module
for voice reporting.
PGM3,PGM4, and the
alarm relay are optional.
To Next Page
