2.12 Metal Box Installation

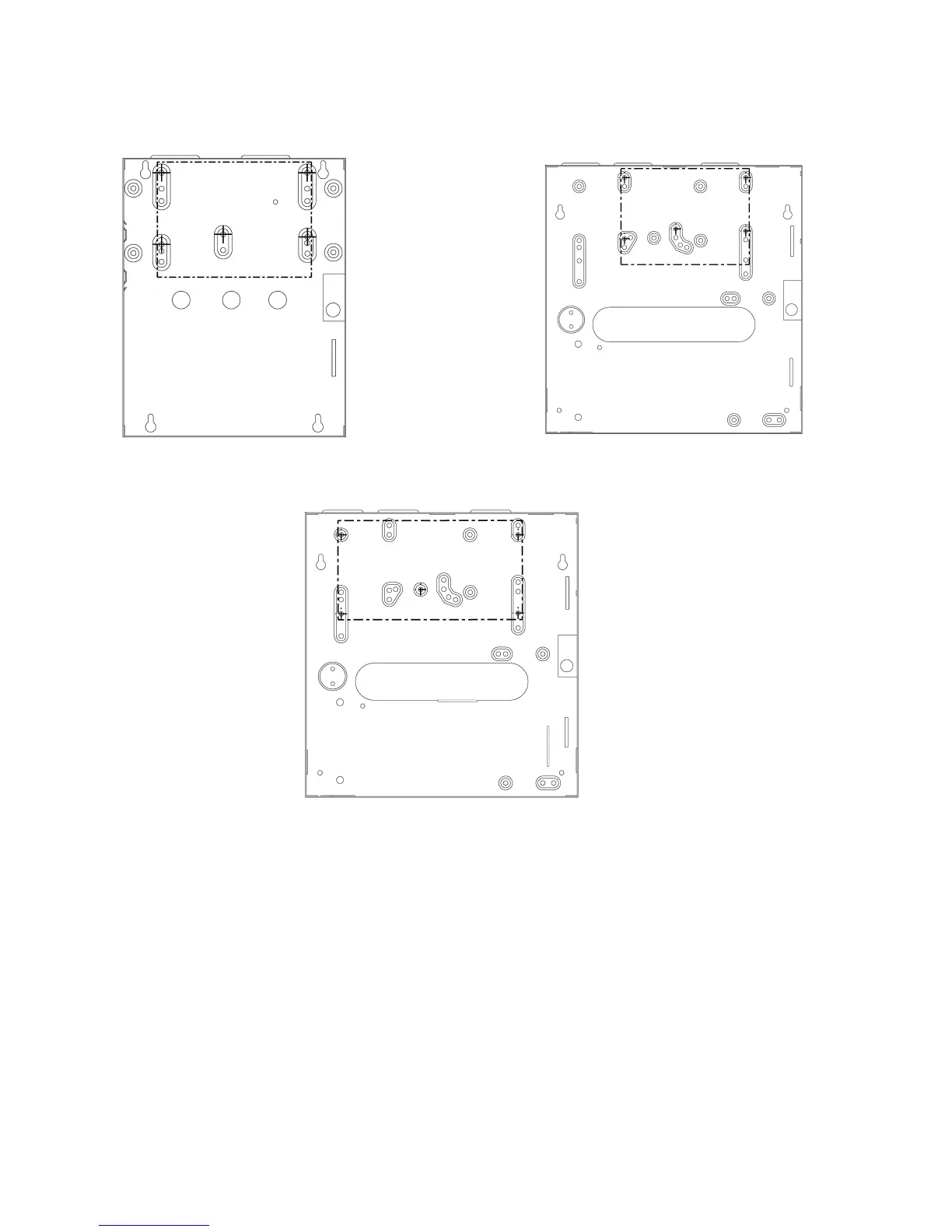

The crosses and dotted line represent the mounting location. If you need specific dimensions, contact Paradox Distributor
Support. For UL recommended installation for the MG5000 only, place the PCB one notch lower than the mounting location.
MG5000 (8x10”) MG5000 (11x11”)
MG5050 / MG5050 (11x11”)
