Paradox Magellan MG5050 EN User Manual

12 Reference & Installation Manual
2.17 Single Zone Inputs
Detection devices such as motion detectors and door contacts are connected to the control panel's zone input terminals. Figure 3
demonstrates single zone input terminal connections recognized by the panel. Once connected, the associated zone's
parameters must be defined.

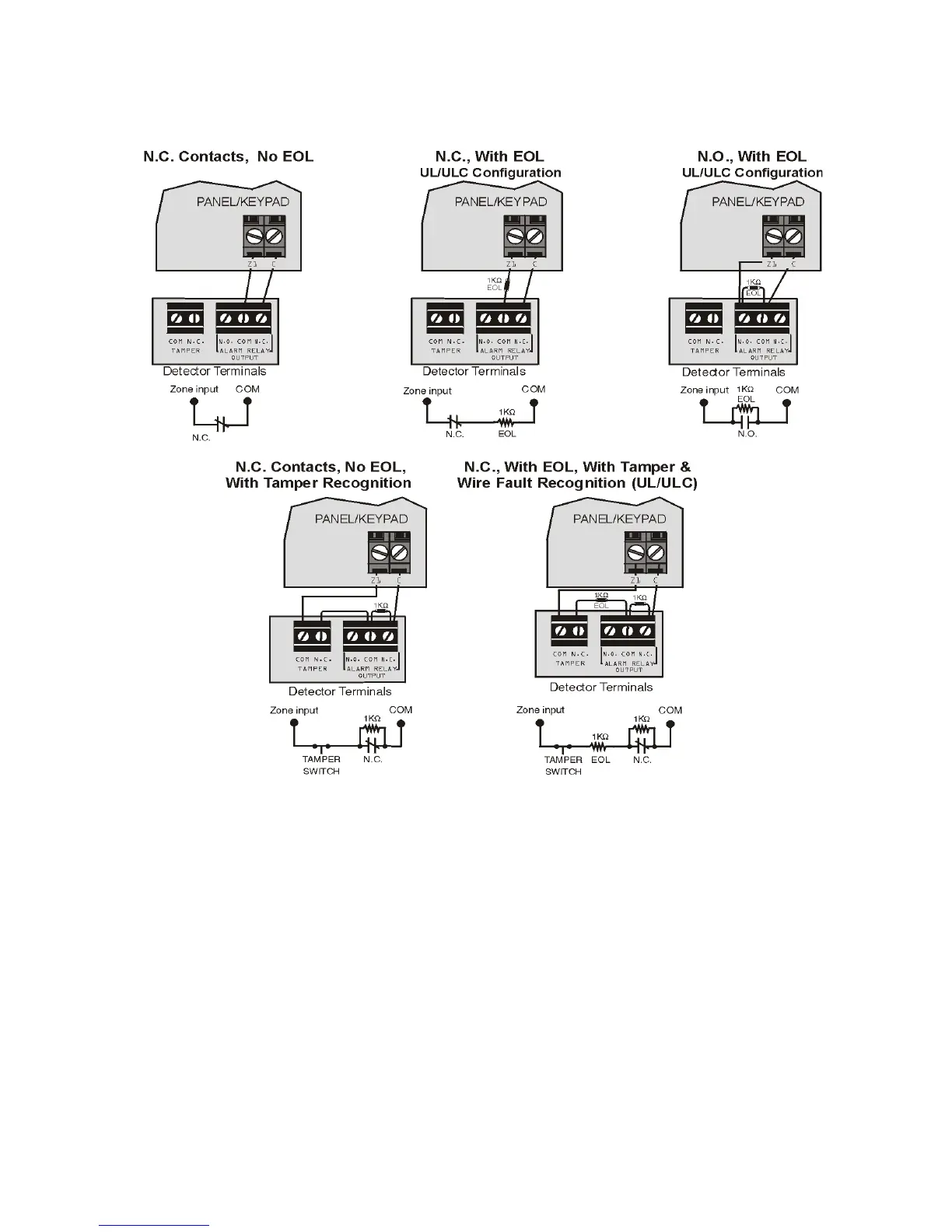

Figure 3: Single Zone Input Connections

Paradox Magellan MG5050 EN Specifications

General

Partitions	2
Wireless Zones	32
User Codes	32
Event Buffer	256
Remote Control	Yes
Wireless Keypads	Supported
StayD Mode	Yes
RF Frequency	433 MHz or 868 MHz
Users	32
Compatibility	Paradox wireless devices
Communication	GSM, IP
Type	Control Panel
Power Supply	16.5 VAC
Battery Backup	12 VDC, 7 Ah
Operating Temperature	0°C to 50°C
Humidity	5% to 90% non-condensing
Zones	32 (8 on-board)
