Magellan / Spectra SP 59
15.6 Answer WinLoad Software
[ENTER] + [INSTALLER CODE] + [SLEEP]
In order to perform on-site upload/download connect your computer directly to the control panel using an ADP-1 line adapter. In
the WinLoad software set Dialing Method to Blind Dial. Program the panel telephone number in WinLoad software and follow the
instructions on the ADP-1 adapter. When the computer has dialed, press [
ENTER] followed by the Installer/Maintenance Code,
then press the [SLEEP] key to manually answer the WinLoad software from the control panel.
15.7 Automatic Event Buffer Transmission
Section [900]: Dialer Options
Option [2] OFF = Auto Event Buffer Transmission Disabled (default)
Option [2] ON = Auto Event Buffer Transmission Enabled
When the event buffer reaches 90% capacity, the control panel will make two attempts to establish communication with a PC
using the WinLoad software by calling the PC Telephone Number programmed in section [915]. The WinLoad software must be
in Wait to Dial mode. When the system establishes communication, it will upload the contents of the event buffer to the WinLoad
software. If communication is interrupted before completing transmission or if after two attempts communication is not
established, the system will wait until the Event Buffer attains another 90% capacity before attempting to re-communicate with the
monitoring station. When the Event Buffer is full, each subsequent new event will erase the oldest event in the buffer.
15.8 Call Back WinLoad
Section [900]: Dialer Options
Option [1] OFF = Call Back WinLoad Disabled (default)
Option [1] ON = Call Back WinLoad Enabled
For additional security, when a PC using the WinLoad software attempts to communicate with the control panel, the control panel
can hang up and call the PC back in order to re-verify identification codes and re-establish communication. When the control
panel hangs up, the WinLoad software automatically goes into Wait for Call mode, ready to answer when the control panel calls
back. Please note that the PC Telephone Number must be programmed in section [915] in order to use the Call Back feature.

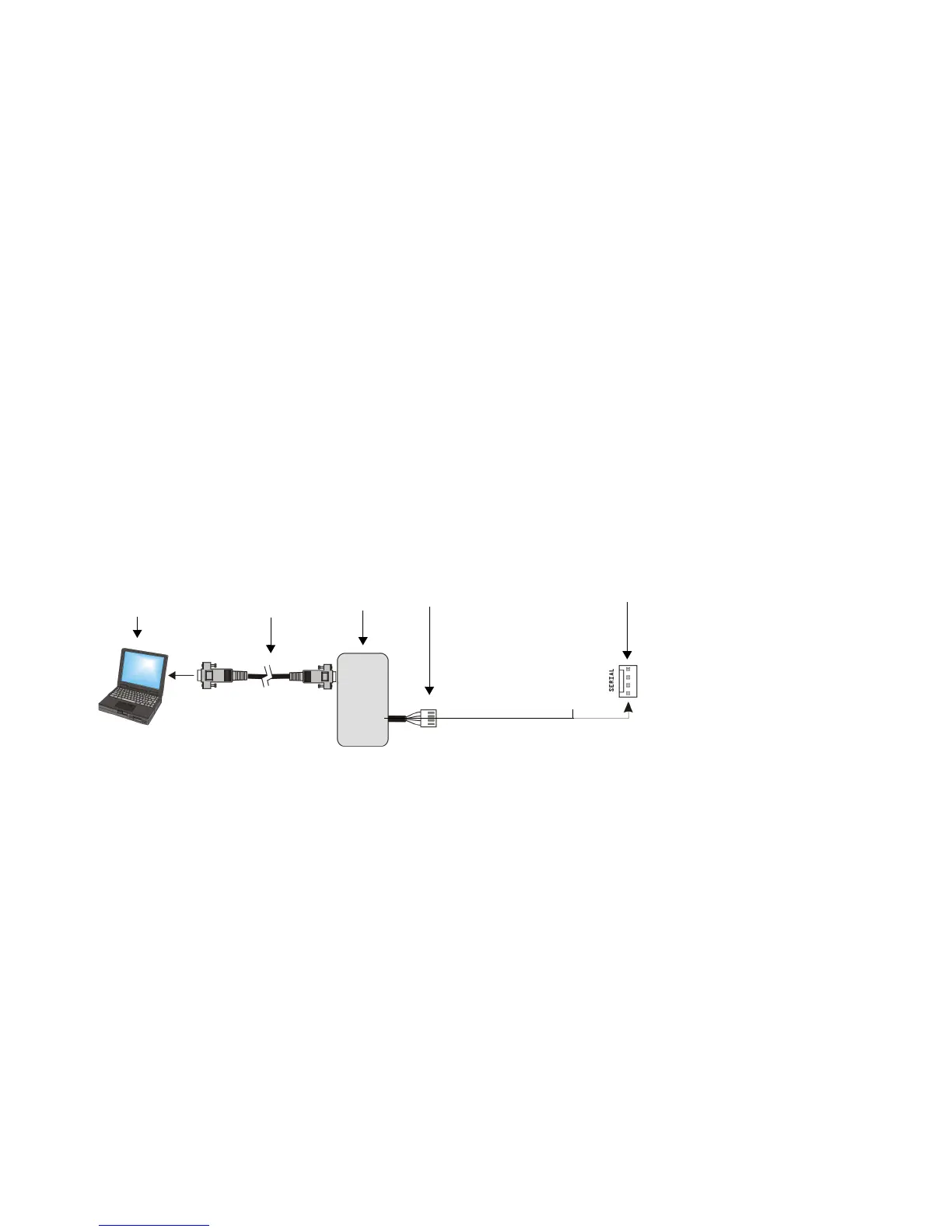

15.9 Connecting to WinLoad
Serial Connector
Computer
containing
WinLoad
software
307USB
Adapter/
CONV4USB
Converter
4-pin
connector
cable
Standard
DB-9 cable
(9-pin serial
cable)
To Next Page
