Parker 514C-04

3-2 Setting up & Commissioning
514C Product Manual
Filter
L1
L2
PEPE
LINE
LOAD
4 Holes M6 Insert
4 Holes M6 Clearance
230mm Leads
M5 Ring Lugs
PE L1 L2
BlackRedGreen
/Yellow
C E L
A
H
B
D
W
Product
Filter
Watt
Loss

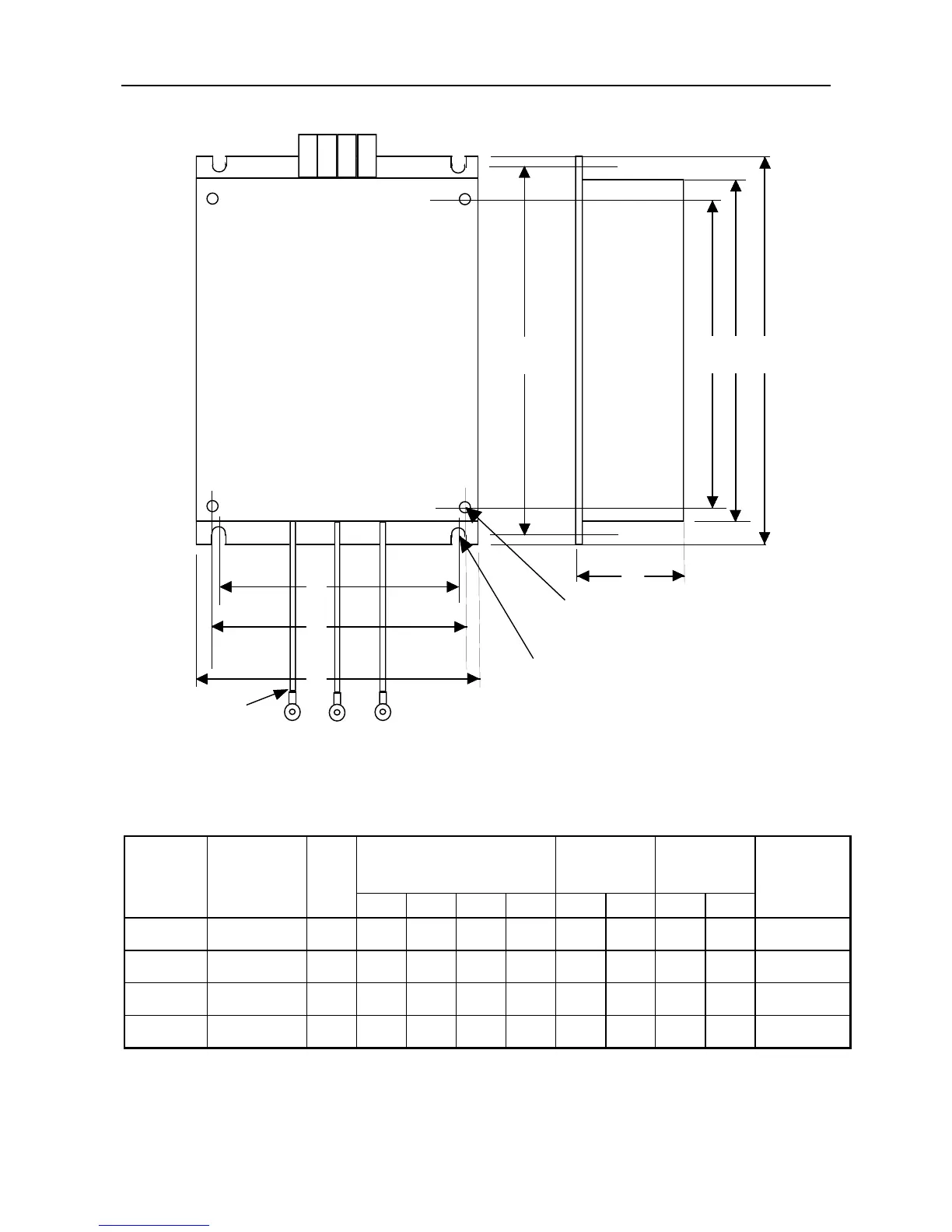

Overall Dimensions
Fixing
Centres
Product
Fixing
Terminal
L
W
H
E
A
B
C
D
514C-04
CO389113
18W
264
165
45
240
253
120
210
148
4mm
2
514C-08
CO389113
18W
264
165
45
240
253
120
210
148
4mm
2
514C-16
CO389113
18W
264
165
45
240
253
120
210
148
4mm
2
514C-32
CO389114
36W
264
165
70
240
253
120
210
148
6mm
2
