1.5.3. Zone classification / device categories
The table below describes the zones of an installation, where potentially explosive
atmospheres may occur. The proprietor must analyze and assess the area, where
explosive gas/dust mixes may occur and, if necessary, subdivide them into
individual zones. This zone classification permits to select suitable machinery and
equipment which can be used in this area.
User
Suitable machinery and devices
Gas
zone
Dust
zone
Presence of potentially
explosive atmospheres
Equipment
Group *
Equipment
Category
Area of application
(not mining)
0
Permanently, often, for a
long period
approx. > 1000 h / year
II
1G
Gases, mist,
vapor
20
II
1D
Dust
1
occasionally
approx. 10 ... 1000 h /
year
II
2G
Gases, mist,
vapor
21
II
2D
Dust
2
rarely, for a short period,
in the event of an error
approx. < 10 h / year
II
3G
Gases, mist,
vapor
22
II
3D
Dust
* Equipment for use in areas (except underground in mining) which might be
dangerous due to an explosive atmosphere.

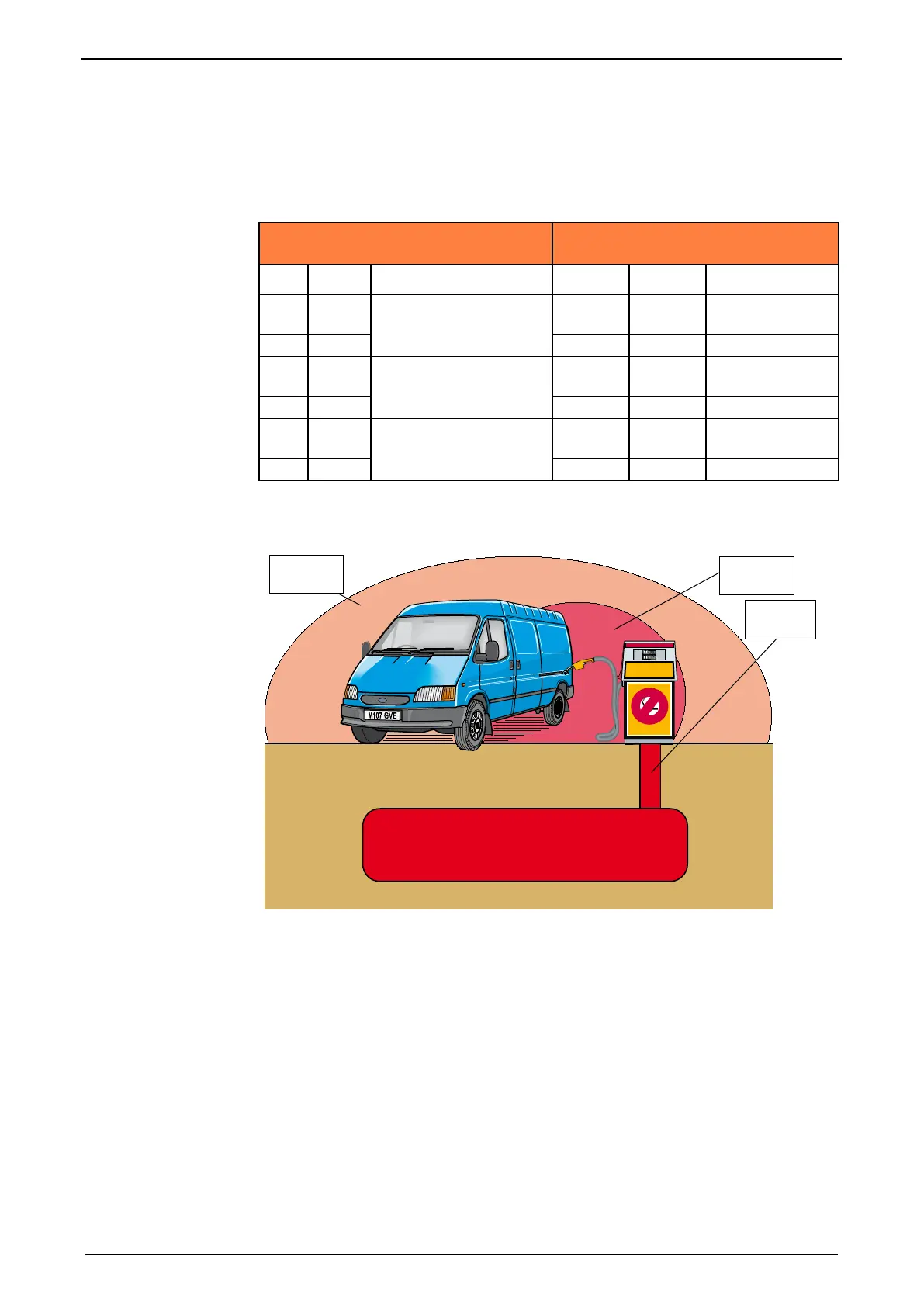

Example:
Zon e 1
Cat egorie 2
Zone 2
Categorie
3
Zon e 0
Cat egorie 1
1.5.4. Type of explosion protection
In addition to category and device class, which are the minimum required
information, the device or component designation gives additional information with
reference to the type of protection and explosion group for gases and mists.
The type of explosion protection defines which method or measures is/are used for
explosion protection in given equipment or individual components.
For non electric equipment, the following types of explosion protection are
possible:
