Device assignment
192-550003N10 ETH ATEX December 2019 5
In this chapter you can read about:
Device assignment ............................................................................................................ 5
Type identification plate ..................................................................................................... 5
Mounting explanation ......................................................................................................... 6
ATEX declaration of conformity .......................................................................................... 7
Introduction to ATEX .......................................................................................................... 8
ETH ATEX marking ......................................................................................................... 11
Applications in accordance with the Regulations .............................................................. 12
Operator’s obligations ...................................................................................................... 13
For Safety Use ............................................................................................................... 14
Packaging, storage, transport .......................................................................................... 17
Terms of guarantee / warranty ......................................................................................... 21
Conditions of utilization .................................................................................................... 22
Planning of the ETH Electro Cylinder for EX-Environment ............................................... 23
1.1 Device assignment
This manual applies for the following devices:
Electro cylinder for motors and gearboxes:
 ETH032 Atex marked
 ETH050 Atex marked
 ETH080 Atex marked
 ETH100 Atex marked
 ETH125 Atex marked.
1.2 Type identification plate

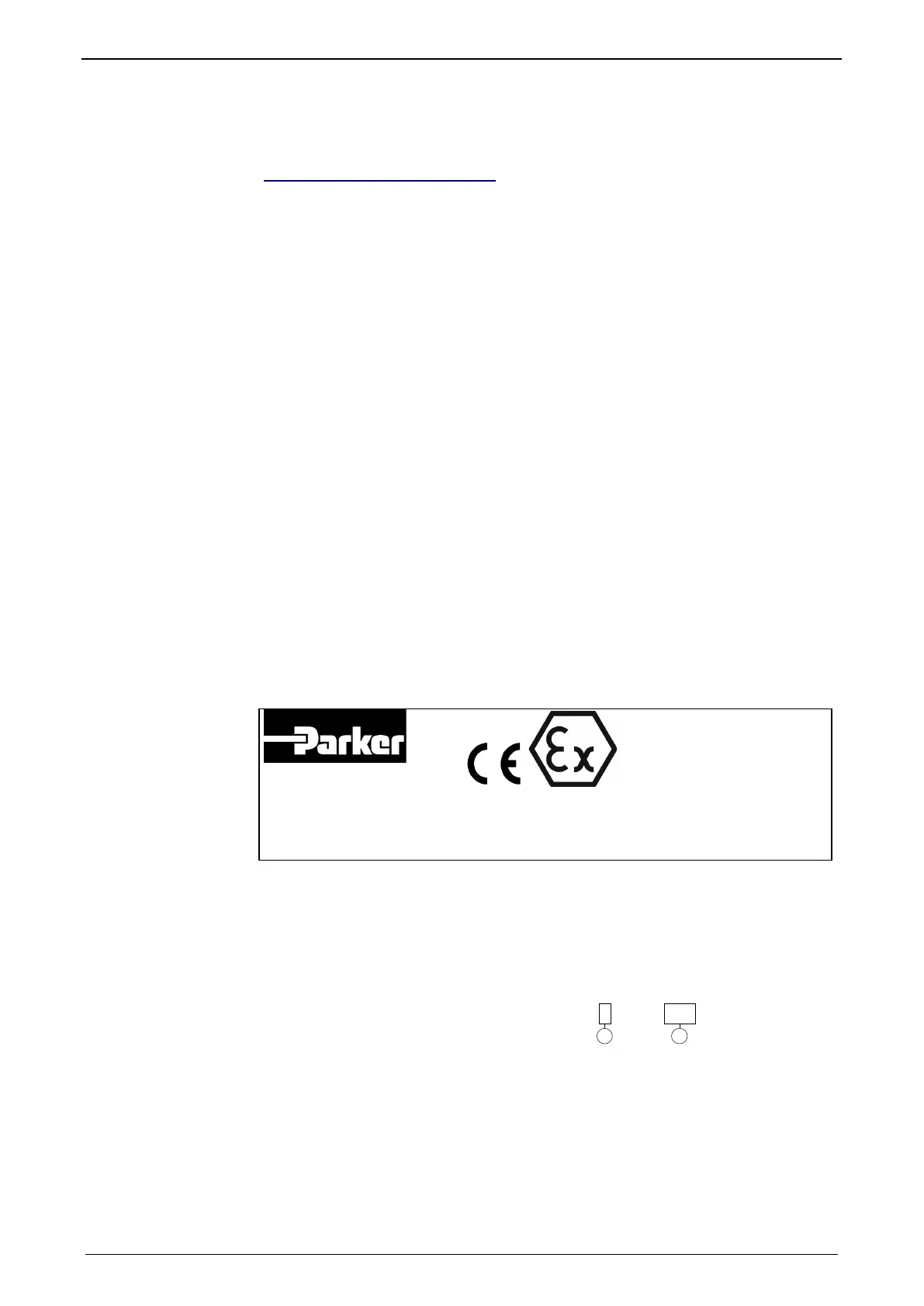

Type specification plate (example)
II 2G Ex h IIC T4 Gb
EPS 13 ATEX 2 592 X
Parker Hannifin Manufacturing
Germany GmbH & Co. KG
Robert-Bosch-Straße 22
D-77656 Offenburg
Tel.+49(0)781 509-0
Serial number: 285950-0001
Type: ETH032M05C1K1BFMA0050A001
Order confirmation No.: 21015463 Date:
07.10.2013
Type specification plate explanation
Left:
Manufacturer address
Right:
CE, Ex, ...
ATEX marked
Serial no
Unambiguous identification number
Type:
Order Code:
E
TH032M05C1K1BFM
A0050A001
1
2

"A" = ATEX cylinder

"000"
=
Standard ATEX Cylinder, tested with the
force- velocity diagrams
"001"
=
ATEX application identification number 1, ...
(A-No. with unambiguous allocation to
ATEX application data)
Order No.:
Customer Order confirmation Number
Date:
Delivery date
