53 - PVD 3674_GB_K Series_CE-November 2016.Docx

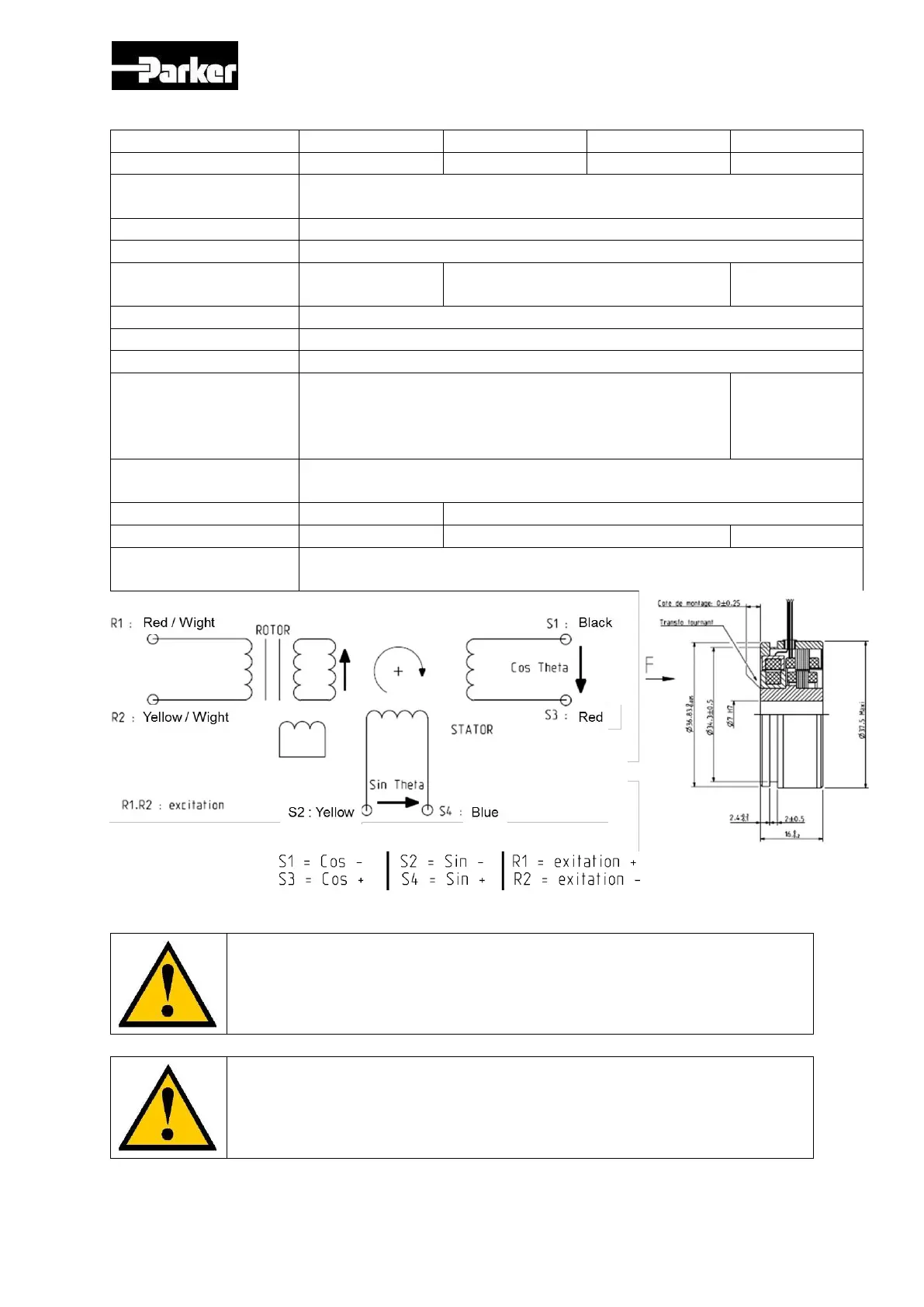

3.7.2.3. Resolver characteristics
Kit associated
K032
K044
K064 & K089
K178
Parker part number
220005P1000
220005P1001
220005P1002
220005P1003
Electrical
specification
Values @ 8 kHz
Polarity
2 poles
Input voltage
7 Vrms
Input current
70mA
maximum
86mA maximum
56mA
maximum
Zero voltage
20mV maximum
Encoder accuracy
± 10’ maxi
Ratio
0,5 ± 5 %
Output impedance
(primary in short
circuit whatever the
position of the rotor)
Typical 120 + 200j Ω
Typical 95 +
180j Ω
Dielectric rigidity
(50 60 Hz)
500 V 1 min
Insulation resistance
≥ 10MΩ
≥ 100MΩ
Rotor inertia
~6 g.cm²
~30 g.cm²
~123 g cm²
Operating
temperature range
-55 to +155 °C
Rotor is clock wise rotation viewed from mounting flange end (F view)
Resolvers are single pole pair resolvers: they give absolute position
on 1 motor rotation.
For easy kit integration and electrical checking a connector is
recommended for the signals.
