3.7.2.
Resolver
3.7.2.1.
Overview
A resolver is an angular position sensor. It is used to determine rotor position.
Its
signals are processed by the drive in order to control the stator currents, the speed
and the position.
The resolver is a high precision device and must be wir
ed and moun
ted with care.
3.7.2.2.
E

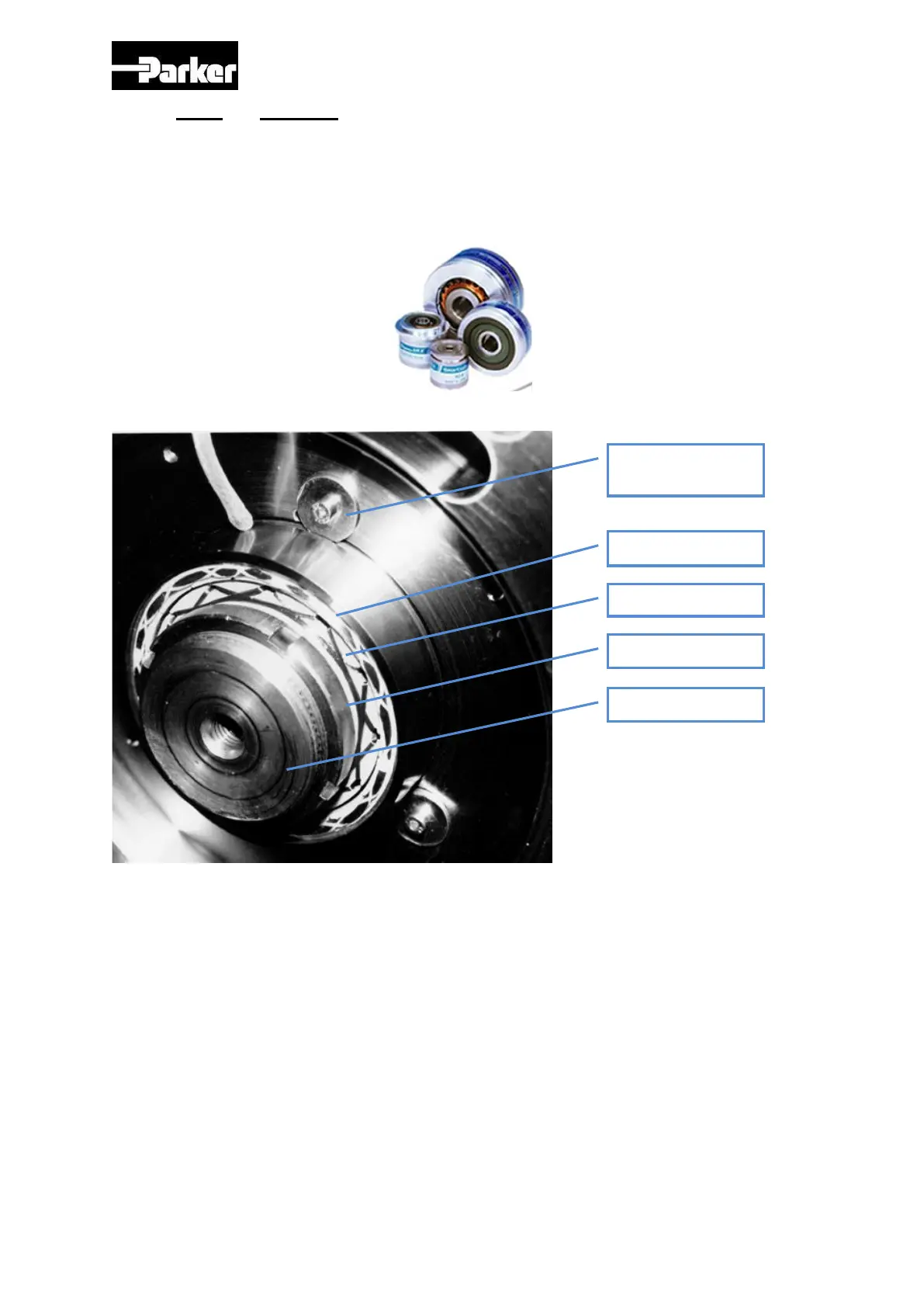

xample of resolver mounting
Screw and ring
to fit stator
Stator
Rotor
Forcing nut
Motor shaft
51
53
